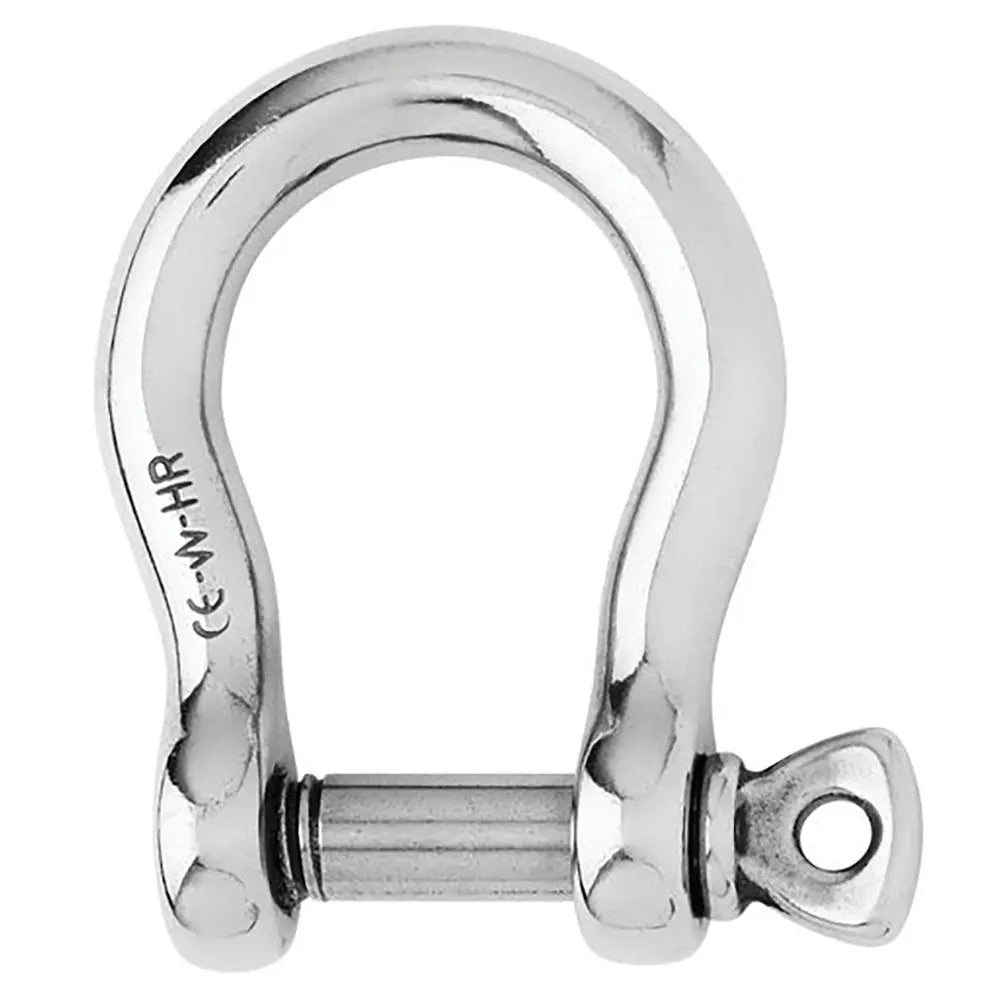

Wichard Marine HR Bow Shackle 16mm Diameter - 5/8 Inch Steel Lifting Shackle

HR Bow Shackle - 16mm Diameter - 5/8"

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 14990 / (kg) 6800
• WLL: (lb) 8370 / (kg) 3800
• Breaking load: (lb) 41880 / (kg) 19000
• Weight: (lb) 1.16 / (g) 526

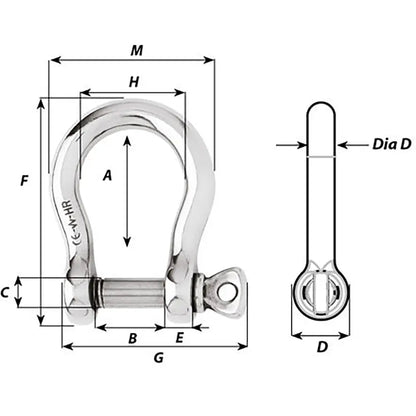

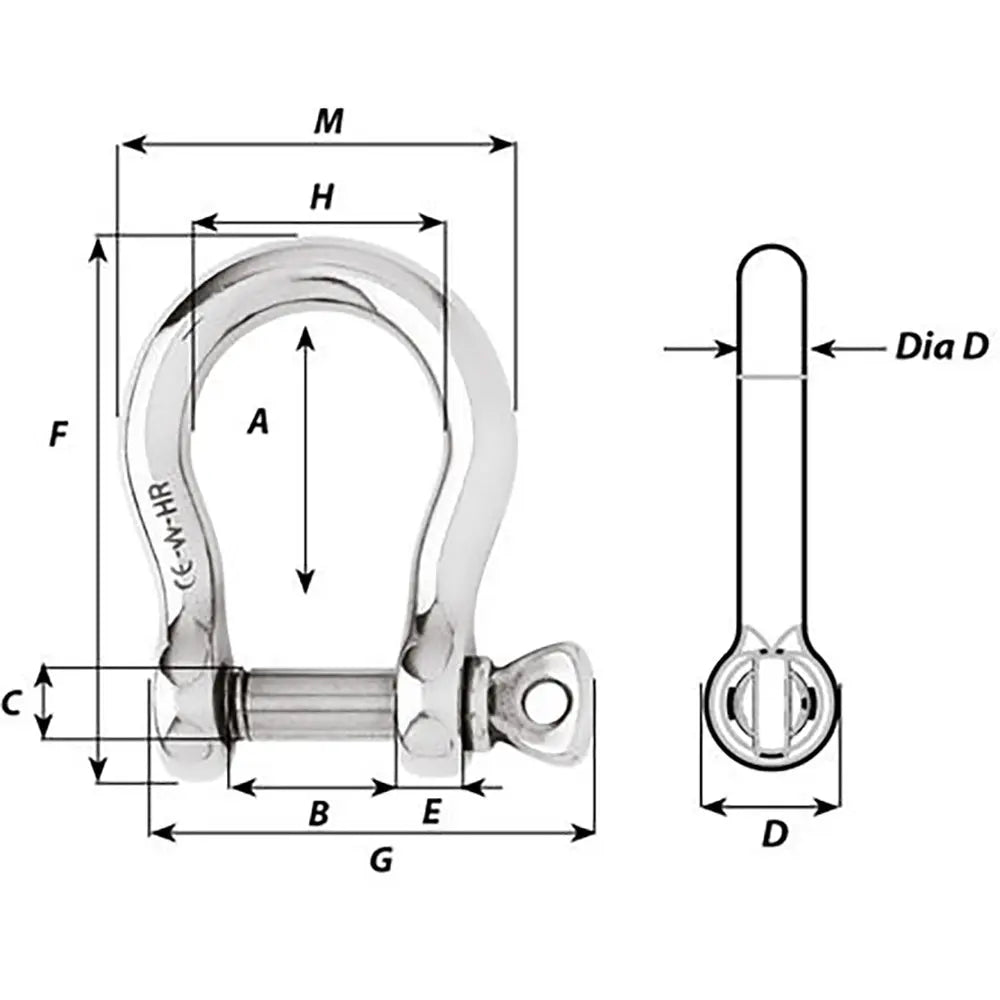

Dimensions:

• A: (inch) 2 3/4" / (mm) 70
• B: (inch) 1 17/64" / (mm) 32
• C: (inch) 5/8" / (mm) 16
• D: (inch) 1 17/64" / (mm) 32
• D diameter: (inch) 5/8" / (mm) 16
• E: (inch) 19/32" / (mm) 15
• M: (inch) 3 17/64" / (mm) 83

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Bow Shackle with a 16mm (5/8 inch) diameter is a high-resistance forged steel shackle designed for demanding industrial applications. Crafted from HR stainless steel grade 17.4 PH, this shackle offers exceptional strength and durability, making it suitable for heavy lifting and load-bearing tasks. Its outstanding working and breaking loads ensure reliable performance under high stress conditions, with the ability to resist up to 60% more than shackles made from 316L stainless steel. The Wichard HR Bow Shackle is CE marked, confirming compliance with safety standards, and is intended strictly for industrial lifting operations where high loads and safety are paramount. This shackle is ideal for applications requiring ample room for multiple lines or cables, providing ease of attachment and secure connections. It is important to note that this shackle should not be used for mooring purposes. Weighing approximately 1.16 pounds, this shackle combines excellent resistance with manageable weight, ensuring ease of handling in the field. Its robust construction and high load capacity make it a reliable choice for various lifting and industrial tasks, with a working load limit of 3,800 kg (8,370 lbs) and a breaking load of 19,000 kg (41,880 lbs). Designed with precise dimensions for secure fit and functionality, this product is sold as an individual piece, ensuring the quality and integrity of each shackle. Whether used in construction, rigging, or heavy-duty industrial environments, the Wichard HR Bow Shackle provides strength, safety, and peace of mind for demanding applications.

Features:

• Forged from HR stainless steel grade 17.4 PH for high strength and durability

• Outstanding working load and breaking load for demanding industrial applications

• Resistant to up to 60% more than standard 316L stainless steel shackles

• CE marked for safety and compliance

• Designed for high load applications with ample room for multiple lines or cables

• Suitable for lifting and industrial use only, not for mooring
