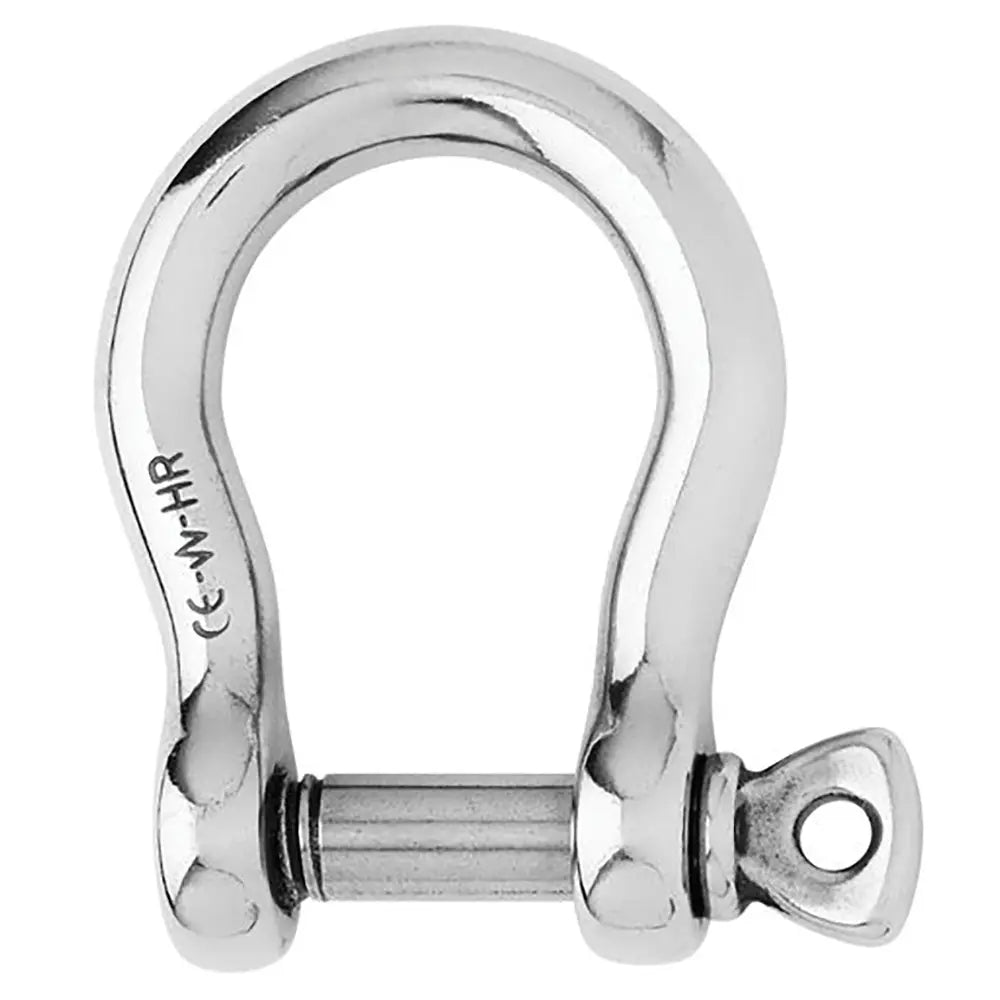

Wichard Marine HR Bow Shackle 20mm Diameter - High-Resistance Stainless Steel Lifting Hardware

HR Bow Shackle - 20mm Diameter - 25/32"

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 19400 / (kg) 8800
• WLL: (lb) 12340 / (kg) 5600
• Breaking load: (lb) 61720 / (kg) 28000
• Weight: (lb) 2.229 / (kg) 1.011

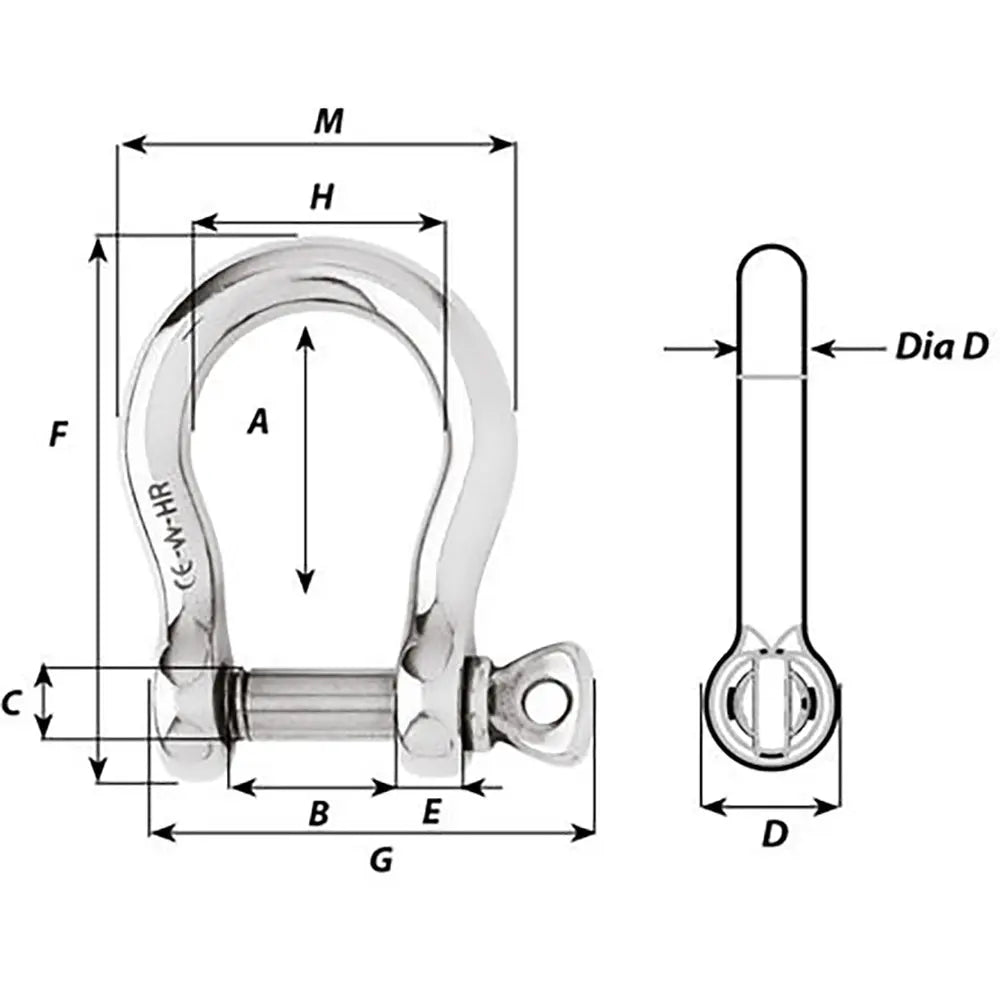

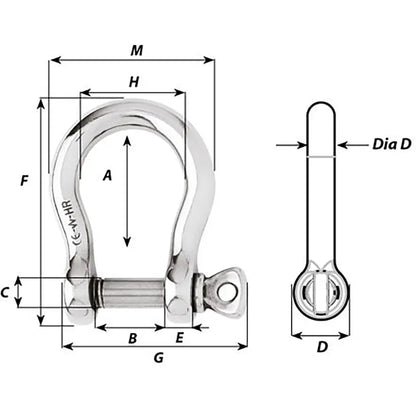

Dimensions:

• A: (inch) 3 5/32" / (mm) 80
• B: (inch) 1 37/64" / (mm) 40
• C: (inch) 25/32" / (mm) 20
• D: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 25/32" / (mm) 20
• E: (inch) 45/64" / (mm) 18
• M: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Bow Shackle with a 20mm diameter offers exceptional strength and durability for industrial lifting applications. Crafted from premium HR 17.4 PH stainless steel, this forged shackle provides outstanding working and breaking loads, making it suitable for demanding environments where high loads are involved. Its high resistance, up to 60% greater than standard 316L stainless steel shackles, ensures reliable performance under heavy-duty conditions. Designed with safety and efficiency in mind, this shackle features a CE marking, confirming compliance with European standards for industrial lifting equipment. Its robust construction and high load capacity make it ideal for applications requiring ample room for multiple lines or cables, such as in construction, rigging, or heavy machinery setups. The Wichard Marine HR Bow Shackle is engineered exclusively for industrial use, with a working load limit (WLL) of approximately 12,340 pounds (5,600 kg), and a breaking load reaching up to 61,720 pounds (28,000 kg). Its design allows for attaching multiple lines or cables, providing versatility across various lifting and rigging scenarios. The shackle's dimensions are optimized for ease of handling and secure attachment, with a weight of just over 2 pounds (1.01 kg). Its high-quality materials and manufacturing standards ensure longevity and resistance to corrosion, even in harsh environments. This product is sold individually, ensuring you receive a reliable component ready for your heavy-duty applications. Suitable for situations where high loads and ample space are necessary, the Wichard HR Bow Shackle is a critical component for industrial lifting operations. It is not intended for mooring purposes but excels in applications demanding maximum strength and safety margins. Whether used for attaching multiple cables or securing heavy equipment, this shackle guarantees performance and safety, backed by rigorous manufacturing standards and CE certification.

Features:

• Forged from HR 17.4 PH stainless steel for exceptional strength and corrosion resistance

• Outstanding working and breaking load capacities suitable for heavy-duty applications

• Up to 60% more resistant than standard 316L stainless steel shackles

• Designed exclusively for industrial lifting with a working load limit of approximately 12,340 lbs

• CE marked for compliance with European safety standards

• Ideal for applications requiring high loads and ample space for multiple lines or cables

• Robust construction ensures durability in demanding environments

• Sold as an individual component for reliable performance
