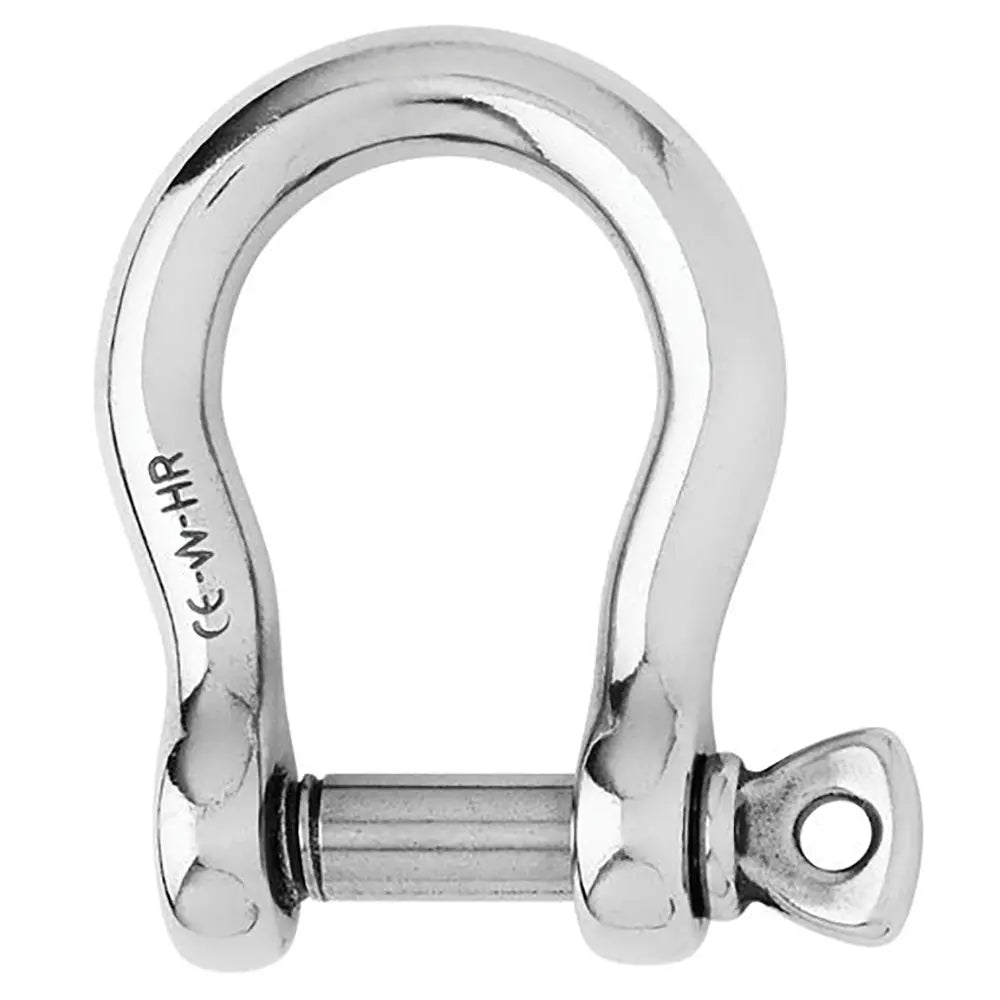

Wichard Marine HR Bow Shackle 24mm Diameter - Heavy Duty Industrial Lifting Hardware

HR Bow Shackle - 24mm Diameter - 15/16"

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 28210 / (kg) 12800
• WLL: (lb) 15430 / (kg) 7000
• Breaking load: (lb) 77160 / (kg) 35000
• Weight: (lb) 3.761 / (kg) 1.706

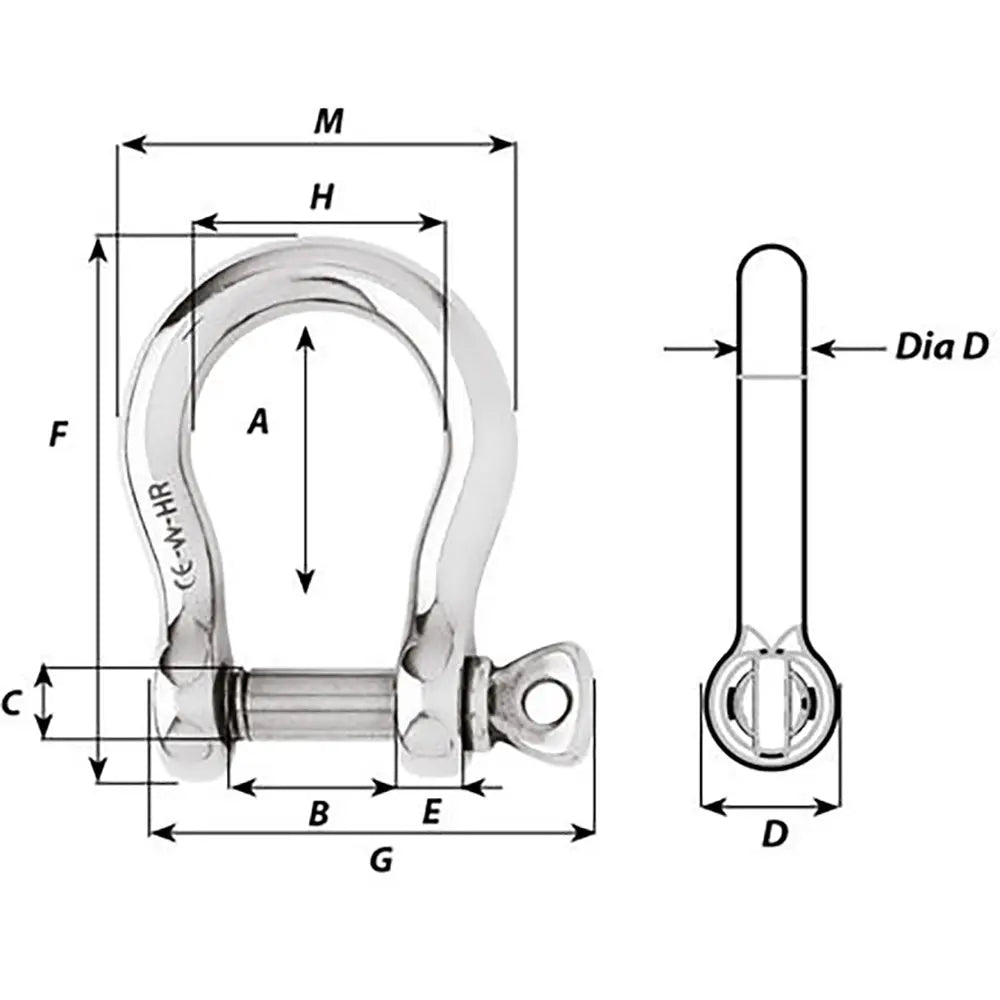

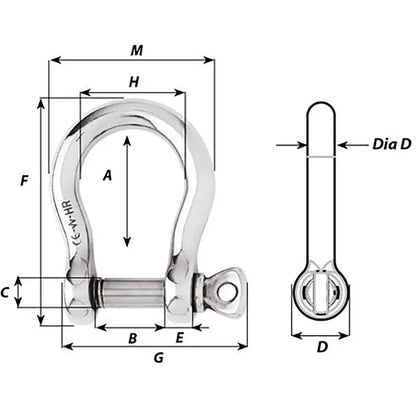

Dimensions:

• A: (inch) 4 1/4" / (mm) 108
• B: (inch) 1 57/64" / (mm) 48
• C: (inch) 15/16" / (mm) 24
• D: (inch) 1 27/32" / (mm) 47
• D diameter: (inch) 15/16" / (mm) 24
• E: (inch) 25/32" / (mm) 20
• M: (inch) 4 41/64" / (mm) 118

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Bow Shackle, part number 11249W, is engineered for demanding industrial lifting applications requiring high load capacity and durability. Crafted from premium HR stainless steel grade 17.4 PH, this forged bow shackle offers exceptional strength, with a working load limit (WLL) of up to 14,530 pounds and a breaking load of 77,160 pounds. Its robust construction ensures it can withstand strenuous conditions, making it suitable for heavy-duty tasks where safety and reliability are paramount. The shackle's design features a 24mm (15/16 inch) diameter, providing ample room to attach multiple cables or lines, and its high resistance properties make it up to 60% more resistant than common 316L stainless steel shackles. This makes it an optimal choice for industrial environments where maximum load-bearing capacity is essential. The Wichard HR Bow Shackle complies with CE marking standards, confirming its adherence to rigorous safety and quality regulations. Its compact yet sturdy design is perfect for applications requesting high loads and when space is limited, although it is not intended for mooring purposes. Weighing approximately 1.7 pounds, the shackle is easy to handle and install, ensuring efficient operation in various industrial scenarios. Whether used in construction, rigging, or other heavy lifting operations, this shackle provides a reliable connection point with a high safety factor of five times the working load. Its durability and high load capacity make it a trusted component for professionals seeking quality hardware for demanding environments.

Features:

• Forged from HR stainless steel grade 17.4 PH for maximum strength and durability

• High working load limit of 14,530 pounds and breaking load up to 77,160 pounds

• Designed with a 24mm (15/16 inch) diameter for versatile attachment options

• Up to 60% more resistant than standard 316L stainless steel shackles

• CE marked to meet international safety and quality standards

• Ideal for industrial lifting applications requiring high load capacities

• Suitable for attaching multiple lines or cables in confined spaces

• Not recommended for mooring purposes
