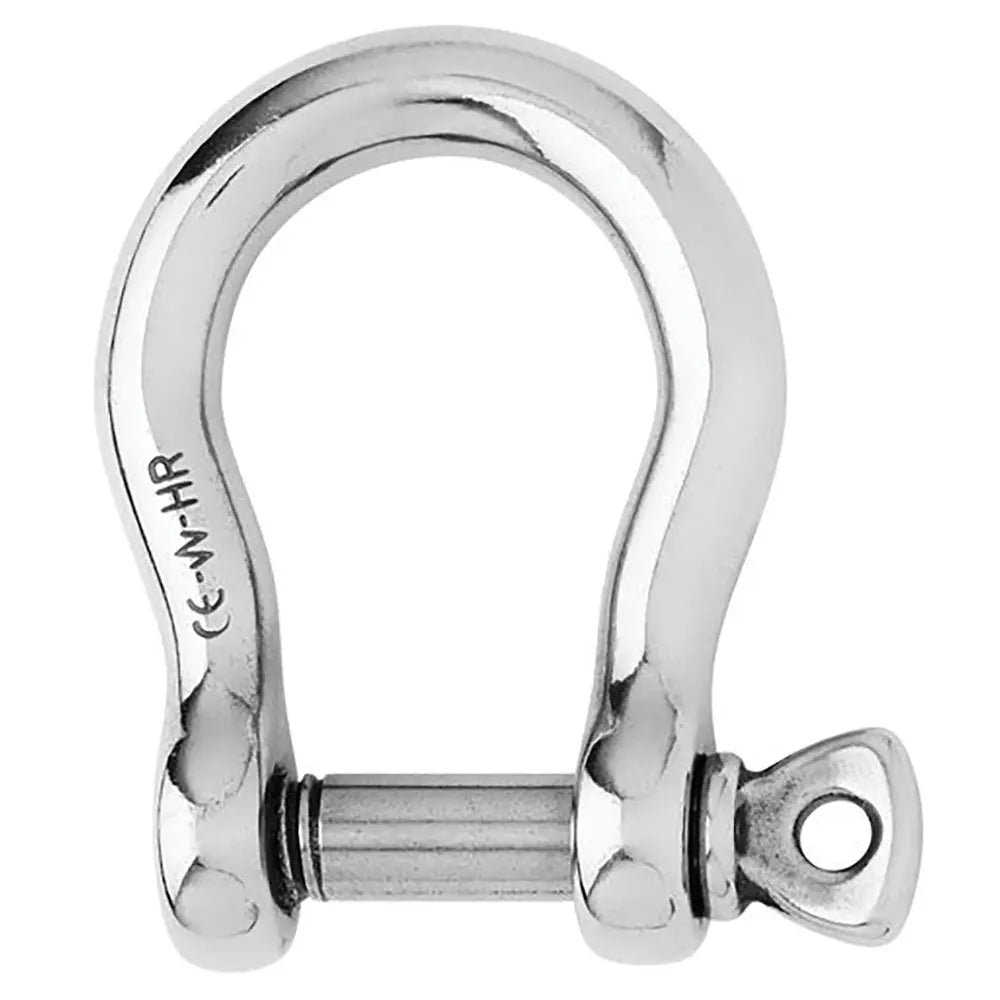

Wichard Marine HR Bow Shackle 8mm Pin Diameter for Heavy Lifting and Industrial Use

HR Bow Shackle - 8mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3880 / (kg) 1760
• WLL: (lb) 1800 / (kg) 820
• Breaking load: (lb) 9030 / (kg) 4100
• Weight: (lb) 0.15 / (g) 68

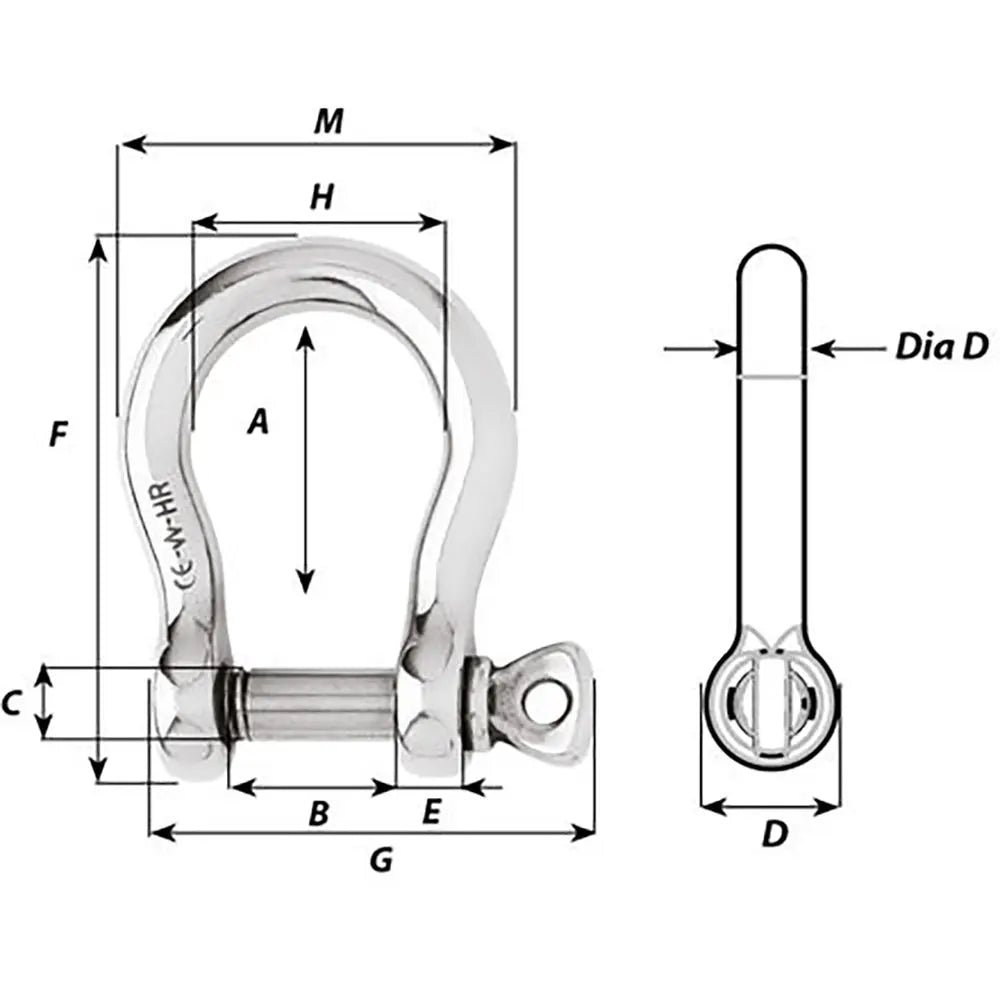

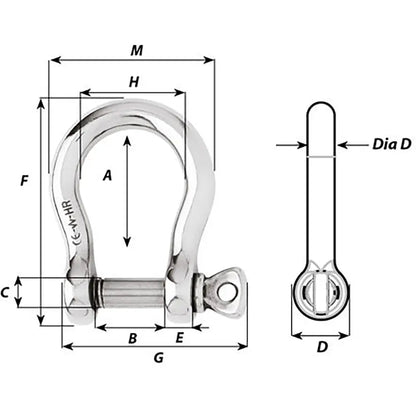

Dimensions:

• A: (inch) 1 29/64" / (mm) 37
• B: (inch) 5/8" / (mm) 16
• C: (inch) 5/16" / (mm) 8
• D: (inch) 5/8" / (mm) 16
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 9/32" / (mm) 7
• M: (inch) 1 21/32" / (mm) 42

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Bow Shackle with an 8mm pin diameter is a high-resistance forged stainless steel shackle designed for demanding industrial applications. Crafted from HR 17.4 PH stainless steel grade, this shackle offers exceptional strength and durability, making it suitable for high-load scenarios. Its outstanding working and breaking loads ensure reliable performance, with a working load limit (WLL) of 820 pounds and a breaking load of up to 4,100 pounds. This shackle is up to 60% more resistant than standard 316L stainless steel shackles, providing increased safety margins for heavy lifting tasks. The CE marking confirms compliance with rigorous safety standards, making it an ideal choice for professional industrial use where high loads and ample room for attaching multiple lines are required. Designed specifically for lifting and industrial applications, this shackle should not be used for mooring purposes. Its lightweight construction, weighing just 0.15 pounds, allows for easy handling and installation. The compact dimensions and robust build ensure secure connections in various operational environments, including those demanding high strength and resistance to corrosion. Whether used in construction, rigging, or heavy equipment setups, the Wichard HR Bow Shackle provides peace of mind through its superior load capacity and high-quality materials. Suitable for applications requiring a high safety factor, this shackle is a reliable component for professional use, ensuring safety and efficiency in demanding tasks.

Features:

• Forged from HR 17.4 PH stainless steel grade for high strength and corrosion resistance

• Outstanding working load limit of 820 pounds and breaking load up to 4,100 pounds

• Up to 60% more resistant than standard 316L stainless steel shackles

• CE marked for compliance with international safety standards

• Designed for industrial lifting applications with ample room for multiple connections

• Lightweight at only 0.15 pounds for easy handling and installation

• Compact dimensions suitable for diverse high-load environments

• Not intended for mooring or marine applications
