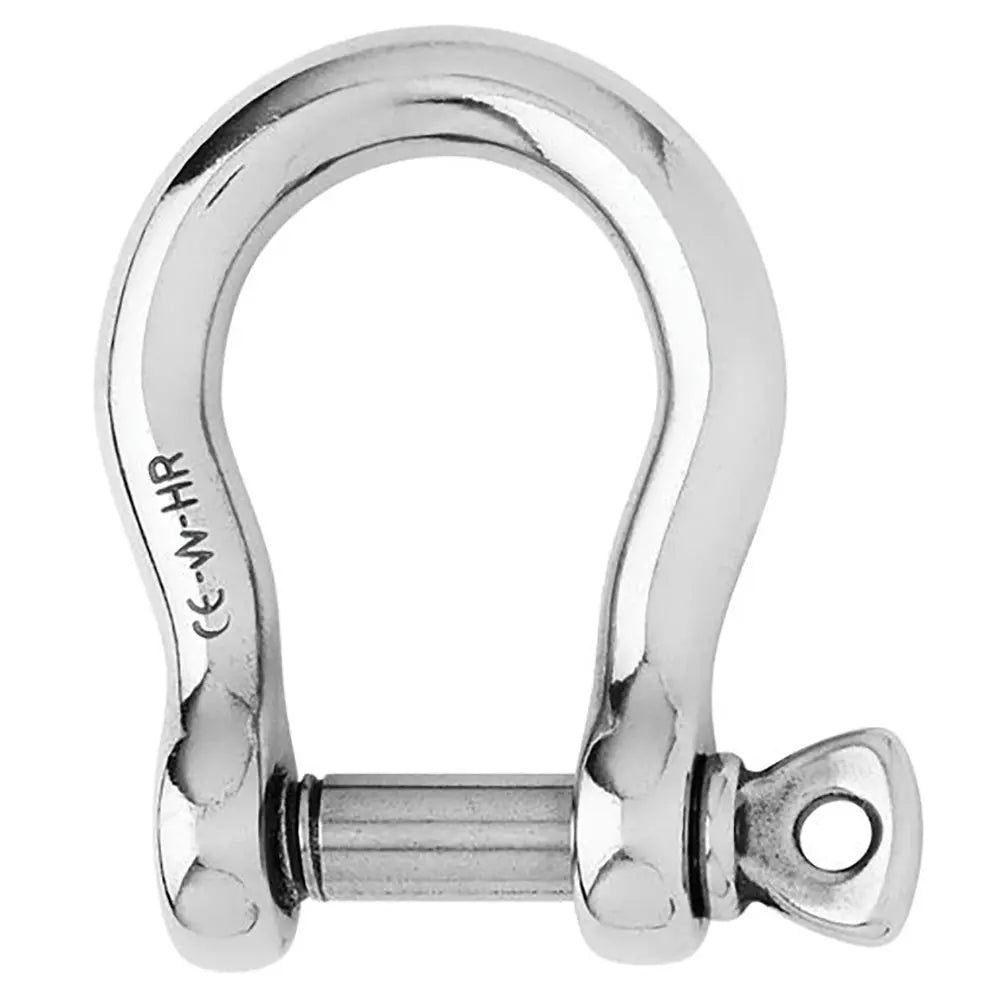

Wichard Marine HR Bow Shackle with 12mm Pin Diameter for Heavy Lifting and Industrial Applications

HR Bow Shackle - 12mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• WLL: (lb) 4400 / (kg) 2000
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.494 / (g) 224

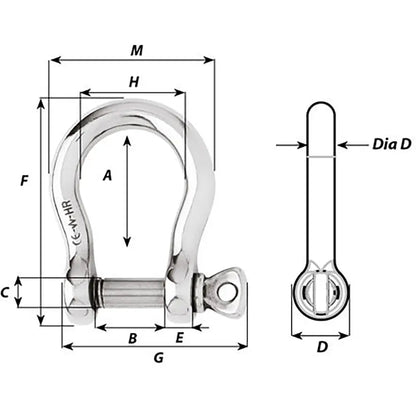

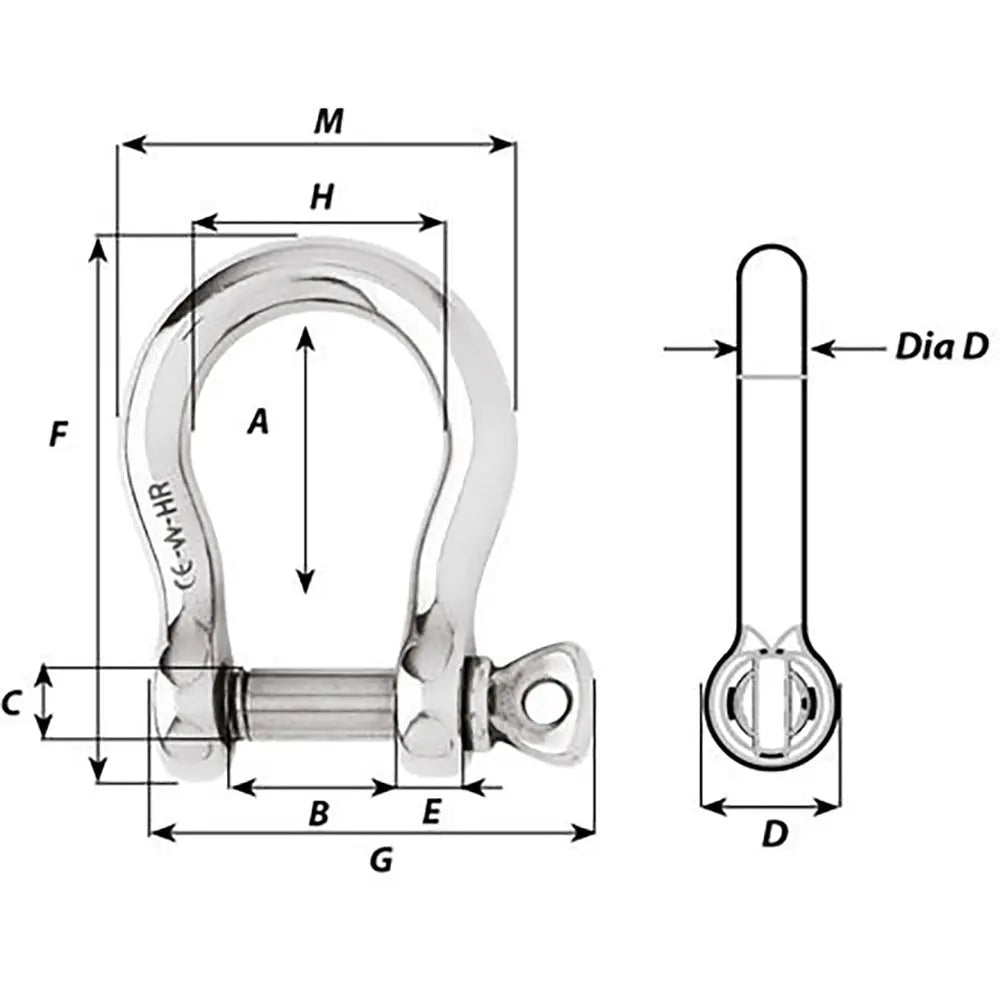

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 15/16" / (mm) 24
• C: (inch) 15/32" / (mm) 12
• D: (inch) 15/16" / (mm) 24
• D diameter: (inch) 35/64" / (mm) 14
• E: (inch) 25/64" / (mm) 10
• M: (inch) 2 31/64" / (mm) 63

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

The Wichard Marine HR Bow Shackle (Part Number: 11246W) is a high-resistance forged steel shackle designed for demanding industrial lifting applications. Crafted from HR 17.4 PH stainless steel, this shackle offers exceptional strength and durability, making it suitable for high-load scenarios where safety and reliability are paramount. Its robust construction provides outstanding working and breaking loads, with a working load limit (WLL) of 4,400 lbs and a breaking load of 22,040 lbs. This makes it an ideal choice for heavy-duty tasks requiring secure attachment points and ample room for multiple lines or cables.
The shackle features a 12mm pin diameter and is CE marked to ensure compliance with rigorous safety standards. Its high resistance capabilities allow it to withstand stresses up to 60% more than similar shackles made from 316L stainless steel, offering increased longevity and performance in industrial environments. It is important to note that this shackle is intended solely for industrial lifting and should not be used for mooring applications. The design includes a generous internal space to facilitate the attachment of multiple lines or cables, simplifying complex lifting configurations.
The Wichard HR Bow Shackle's compact dimensions and lightweight profile (approximately 0.88 lbs) allow for easy handling and installation. Its corrosion-resistant properties make it suitable for use in harsh environments, including maritime and industrial settings. Whether used for lifting heavy loads or creating secure anchor points, this shackle provides a reliable solution that combines strength, safety, and ease of use. Ensure your lifting operations are safe and efficient by choosing this high-quality, industrial-grade bow shackle from Wichard Marine, designed to meet the rigorous demands of modern industrial and marine applications.

Features:

• Forged HR stainless steel grade (17.4 PH) for maximum strength and durability

• Outstanding working and breaking load capacities for heavy-duty applications

• Up to 60% more resistant than shackles made from 316L stainless steel

• CE marked to ensure compliance with safety standards

• Designed for industrial lifting with a working load limit of 4,400 lbs

• Ample internal space for attaching multiple lines or cables

• Corrosion-resistant construction suitable for harsh environments

• Compact and lightweight design for easy handling and installation
