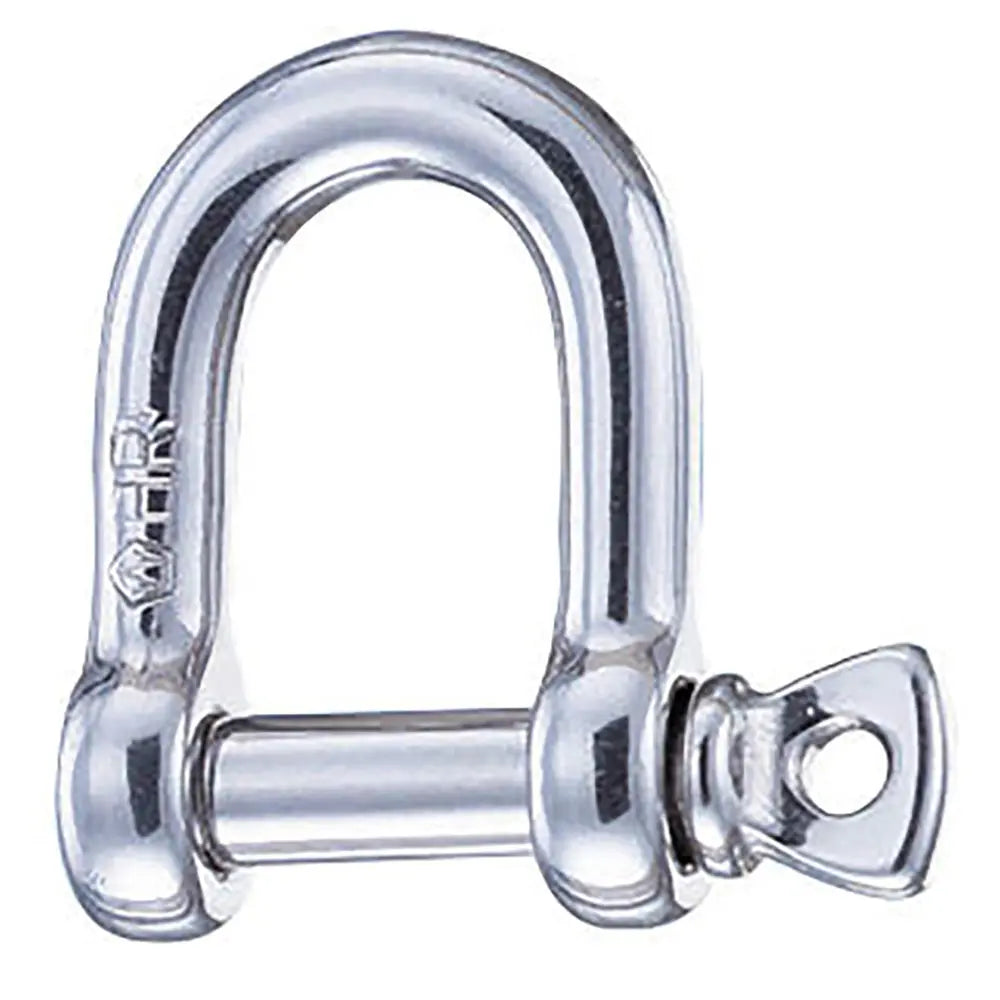

Wichard Marine HR D Shackle 14mm Diameter - Heavy Duty Industrial Lifting Hardware

HR D Shackle - 14mm Diameter - 35/64"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11280 / (kg) 5120
• WLL: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 26450 / (kg) 12000
• Weight: (lb) 0.67 / (g) 304

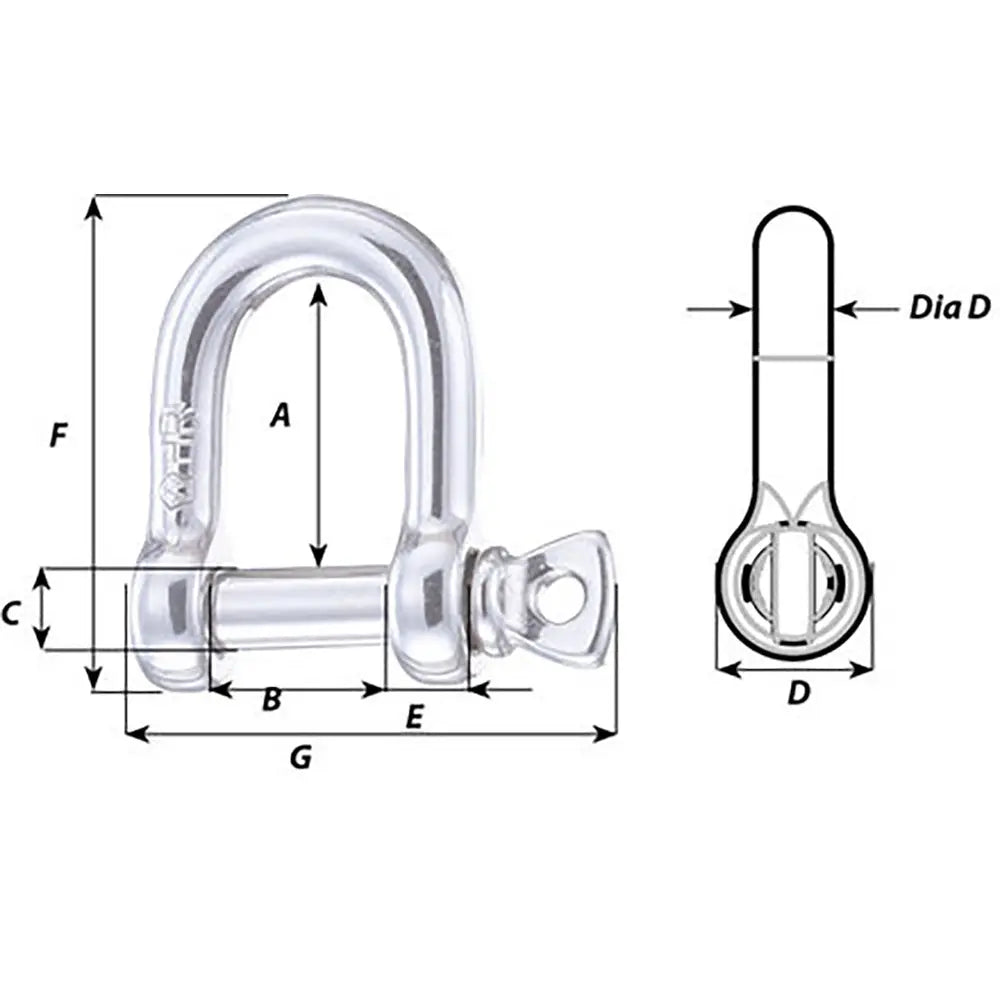

Dimensions:

• A: (inch) 1 59/64" / (mm) 49
• B: (inch) 1 7/64" / (mm) 28
• D diameter: (inch) 35/64" / (mm) 14

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR D Shackle with a 14mm diameter is a robust, forged stainless steel hardware designed for demanding industrial applications. Crafted from high-resistance 17-4 PH stainless steel, this shackle offers exceptional strength and durability, making it ideal for high-load environments. Its outstanding working and breaking loads provide a reliable safety margin, with a working load limit suitable for heavy-duty lifting and attachment tasks. This shackle is engineered to be up to 60% more resistant than standard 316L stainless steel shackles, ensuring longevity and performance under severe conditions.

Designed for applications that require high load capacity, the HR D Shackle can be used for lifting, securing, and attachment purposes, including connecting blocks or head attachments. It is important to note that this shackle is intended solely for industrial use and should not be employed in mooring or maritime applications. The CE marking signifies compliance with European safety standards, reinforcing its suitability for professional use.

The shackle's dimensions include a 1 59/64-inch length and a 1 7/64-inch width, with a 35/64-inch diameter pin. It weighs approximately 0.67 pounds (304 grams), making it manageable for handling and installation. Its working load is rated at 11,280 pounds (5,120 kg), with a breaking load of 26,450 pounds (12,000 kg), providing a substantial safety margin. This high-performance hardware is sold individually, ensuring flexibility for various industrial setups.

Whether used in construction, rigging, or heavy lifting, the Wichard Marine HR D Shackle offers superior strength, reliability, and safety for critical industrial tasks. Its design and material composition make it a dependable choice for professionals seeking high-quality lifting hardware that meets rigorous standards and delivers consistent performance in demanding environments.

Features:

• Forged from HR 17-4 PH stainless steel for superior strength and corrosion resistance

• Outstanding working and breaking load capacities for heavy-duty applications

• Up to 60% more resistant than standard 316L stainless steel shackles

• Designed exclusively for industrial applications such as lifting and securing

• CE marked for compliance with European safety standards
