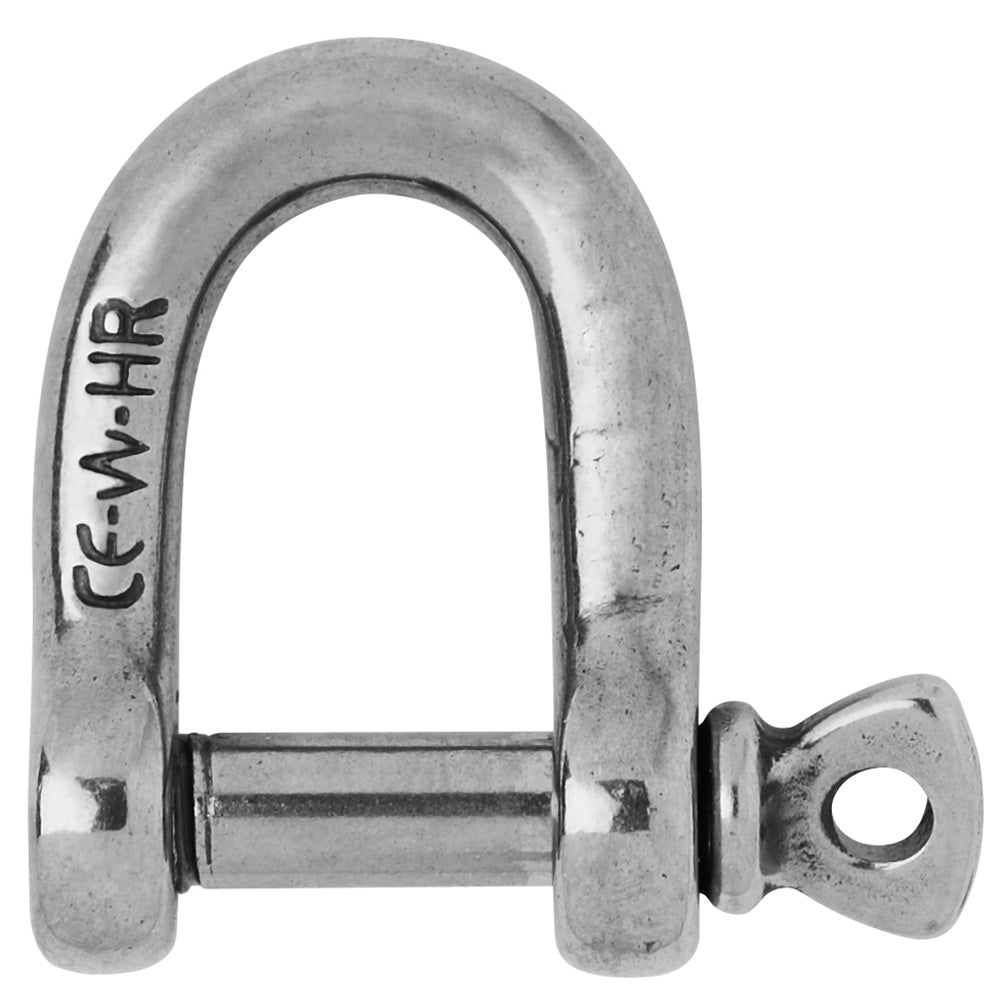

Wichard Marine HR D Shackle - 15/64 inch Diameter for Heavy Duty Industrial Use

HR D Shackle - Diameter 15/64"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Working load (lb) 2290
• WLL (lb) 1010
• Breaking load (lb) 5070
• Weight (lb) 0.053

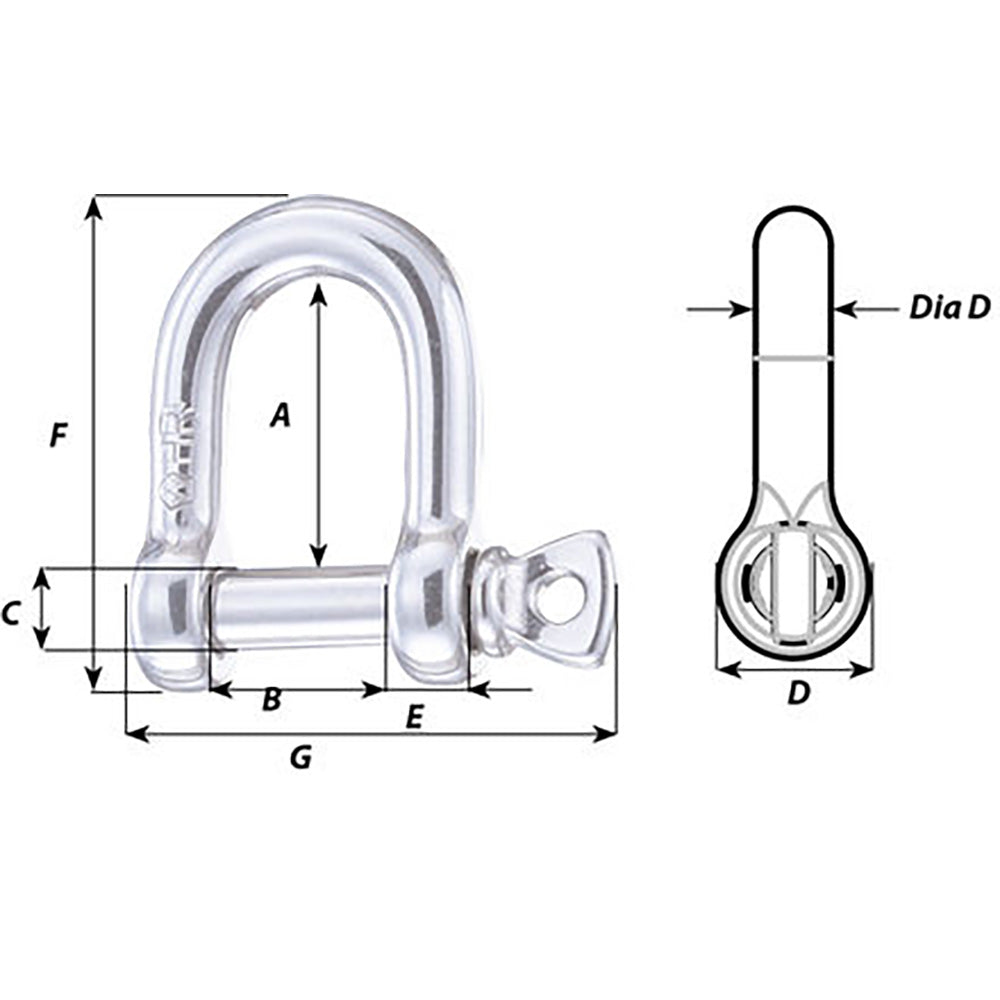

• A (inch) 25/32"
• B (inch) 15/32"
• C (inch) 15/64"
• D (inch) 5/8"
• D diameter (inch) 15/64"
• E (inch) 9/32"
• F (inch) 113/16"
• G (inch) 1 13/16"

The Wichard Marine HR D Shackle with a 15/64 inch diameter is crafted from high-grade 17.4 PH stainless steel, ensuring exceptional strength and durability for demanding industrial applications. Designed for high load capacities, this forged D shackle features outstanding working and breaking loads, making it suitable for lifting and attachment tasks where safety and reliability are paramount. Its robust construction offers up to 60% greater resistance compared to standard 316L stainless steel shackles, providing peace of mind during high-stress operations. The shackle is CE marked and includes a batch number for quality assurance, conforming to industry standards. Ideal for applications requiring high load capacity, such as lifting equipment, attachment points, and connecting hardware, the Wichard HR D Shackle is engineered to handle significant forces without compromise. It is not intended for mooring applications, ensuring users select the correct hardware for their specific needs. The shackle's compact dimensions, including a length of approximately 0.76 inches and a width of 0.76 inches, make it versatile for various industrial setups while maintaining a lightweight profile of just over 0.11 pounds. Its design incorporates features such as a secure pin and reinforced body to maximize safety and longevity during repeated use. Whether for standard industrial tasks or specialized attachment needs like blocks or head connections, this shackle provides reliable performance under high load conditions, making it a valuable component for professionals requiring durable and high-strength hardware.

Features:

• Forged from HR 17.4 PH stainless steel for superior strength and corrosion resistance

• Outstanding working load limit of 1,010 pounds and breaking load of 5,070 pounds

• Designed to be up to 60% more resistant than standard 316L stainless steel shackles

• CE marked with batch number for quality assurance and compliance

• Suitable for high load industrial applications including lifting and attachment points
