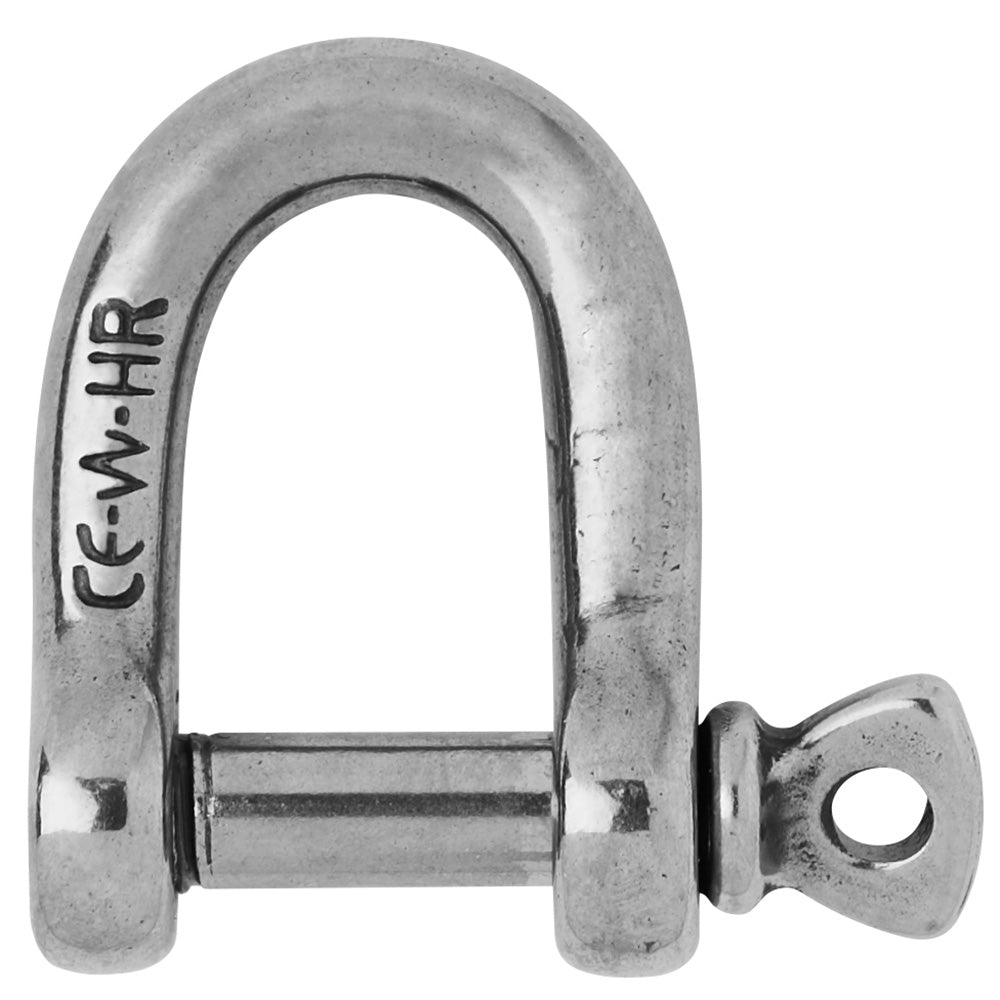

Wichard Marine HR D Shackle 15/64 inch Diameter for Heavy Duty Lifting

HR D Shackle - Diameter 15/64"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Working load (lb) 2290
• WLL (lb) 1010
• Breaking load (lb) 5070
• Weight (lb) 0.053

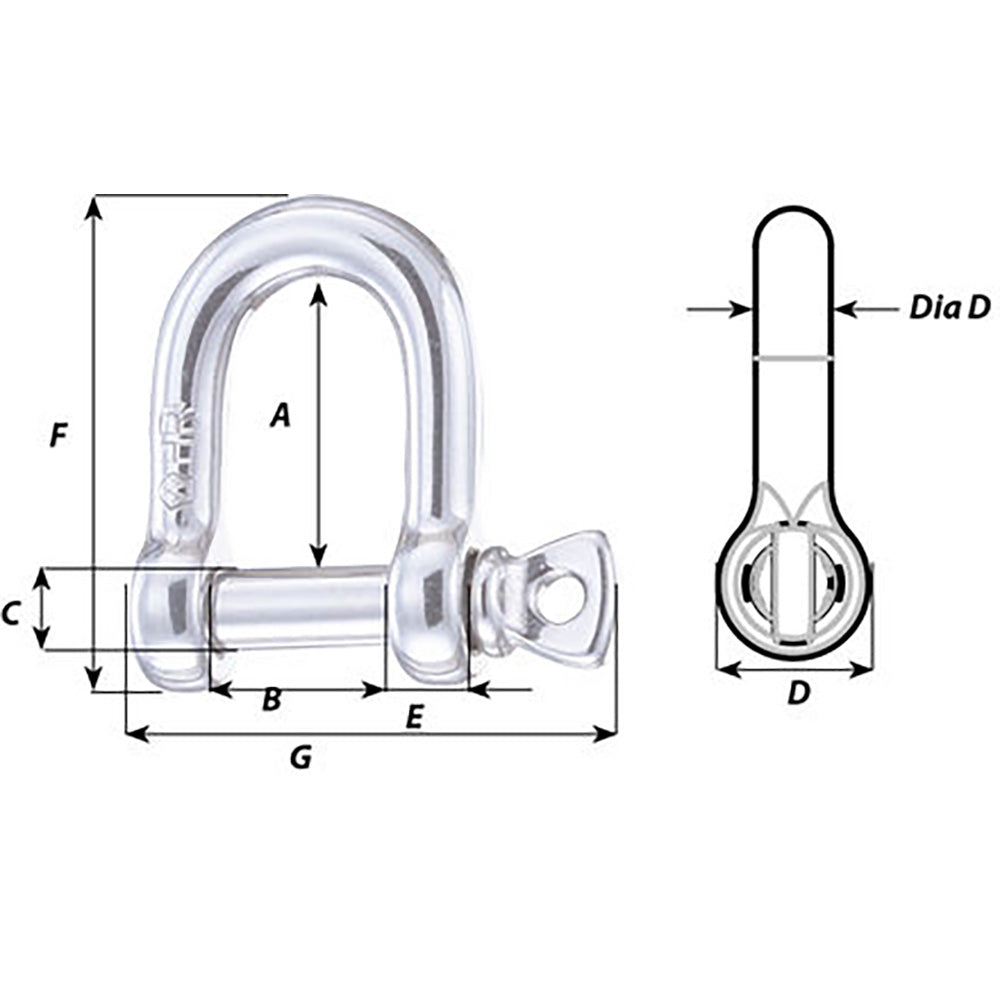

• A (inch) 25/32"
• B (inch) 15/32"
• C (inch) 15/64"
• D (inch) 5/8"
• D diameter (inch) 15/64"
• E (inch) 9/32"
• F (inch) 113/16"
• G (inch) 1 13/16"

The Wichard Marine HR D Shackle with a 15/64 inch diameter is engineered for high-load industrial applications requiring exceptional strength and durability. Crafted from premium HR stainless steel grade 17/4 PH, this forged D shackle offers superior resistance compared to standard stainless steel shackles, making it ideal for demanding lifting and attachment tasks. Its outstanding working and breaking loads ensure safety and reliability in critical operations, with a working load limit (WLL) of 1,010 pounds and a breaking load of 5,070 pounds. The lightweight design, weighing just over 0.05 pounds, allows for easy handling without compromising strength. The shackle's dimensions are optimized for high-load applications, with a length of approximately 0.76 inches and a width of 0.48 inches, ensuring compatibility with various lifting hardware and attachments. The D diameter of 15/64 inch provides a robust connection point suitable for blocks, heads, and other attachment points. This shackle features CE marking and batch number for quality assurance, adhering to industry standards. It is primarily intended for industrial lifting uses and should not be used for mooring applications. The Wichard HR D Shackle is an essential component in applications demanding high loads, where safety and durability are paramount, offering up to 60% greater resistance than typical 316L stainless steel shackles. Its design and material composition make it a reliable choice for professionals engaged in heavy lifting, rigging, and industrial assembly tasks, ensuring secure connections in challenging environments.

Features:

• Forged from HR stainless steel grade 17/4 PH for enhanced strength and corrosion resistance

• Outstanding working load limit of 1,010 pounds and breaking load of 5,070 pounds for heavy-duty applications

• Up to 60% more resistant than standard 316L stainless steel shackles, providing added safety margin

• Designed specifically for industrial lifting and high-load applications

• CE marking and batch number ensure quality and compliance with industry standards
