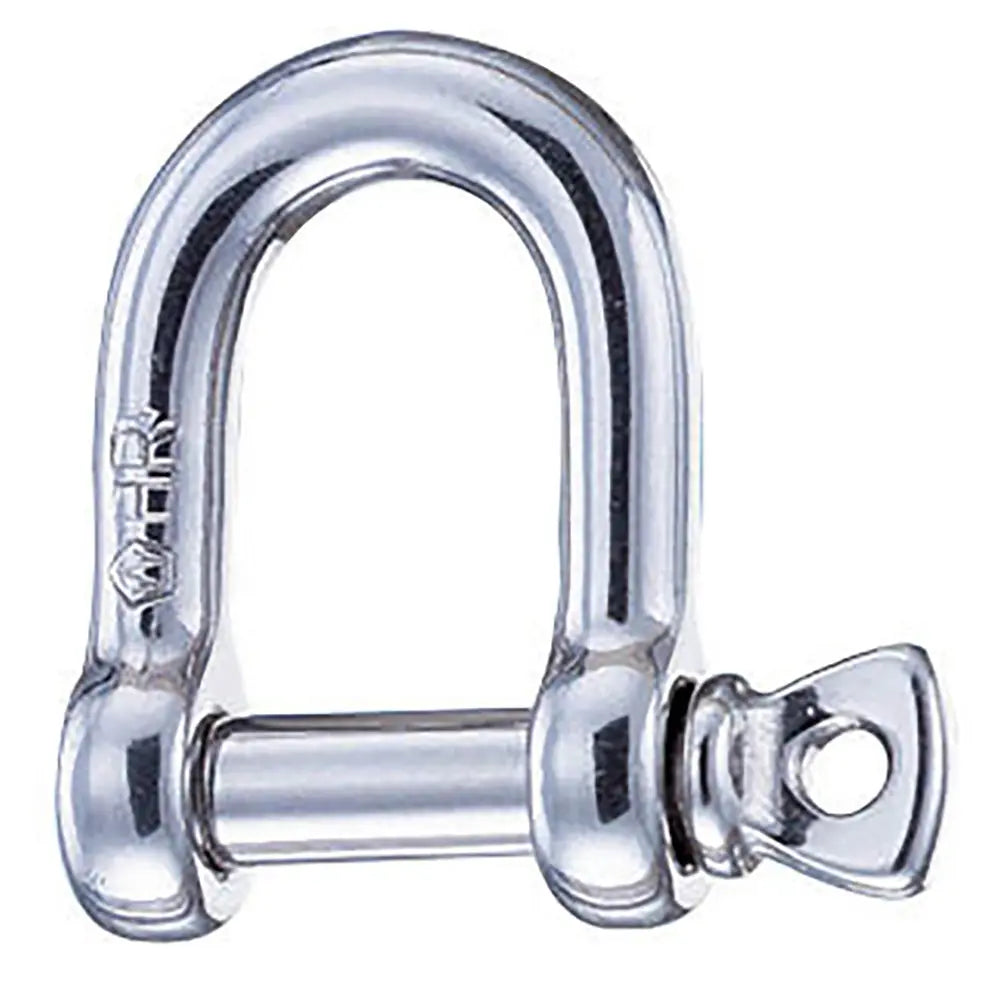

Wichard Marine HR D Shackle 20mm Diameter - Heavy-Duty Stainless Steel Lifting Hardware

HR D Shackle - 20mm Diameter - 25/32"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 19400 / (kg) 8800
• WLL: (lb) 12340 / (kg) 5600
• Breaking load: (lb) 61720 / (kg) 28000
• Weight: (lb) 1.896 / (g) 860

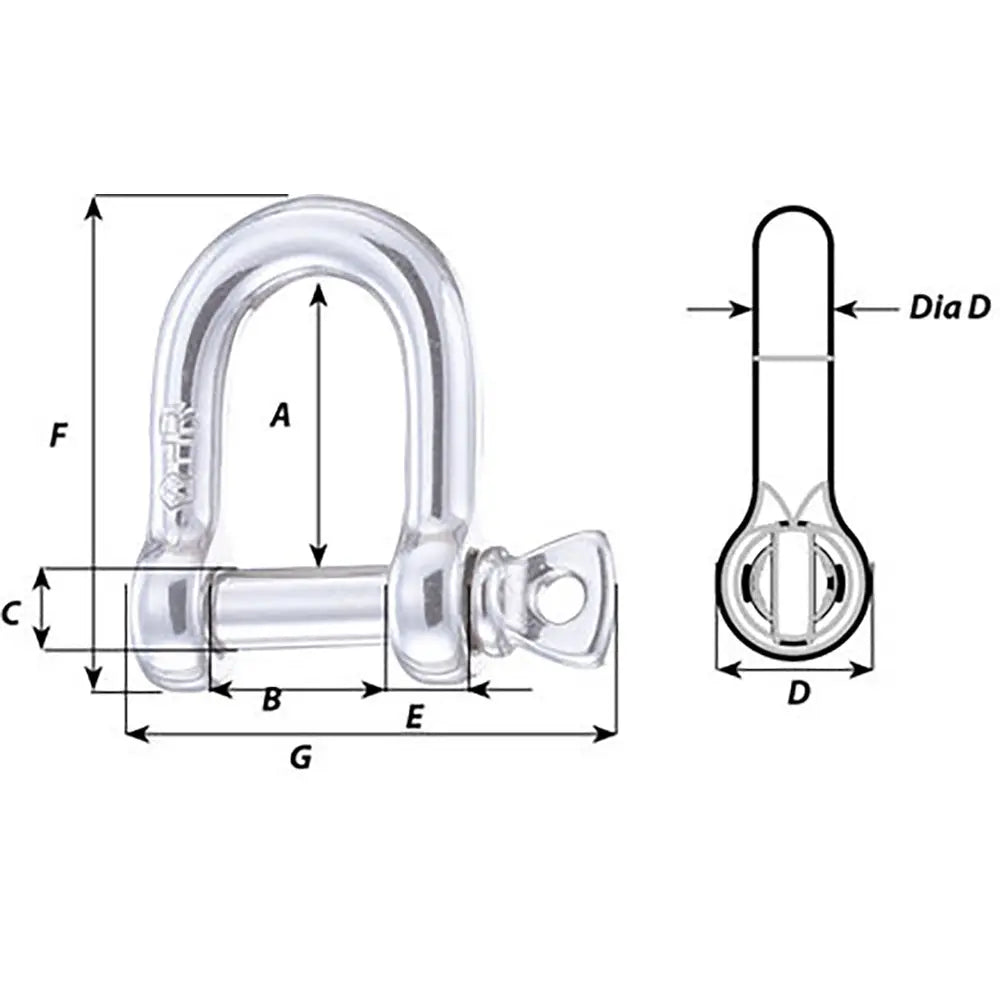

Dimensions:

• A: (inch) 2 3/4" / (mm) 70
• B: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 25/32" / (mm) 20

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR D Shackle with a 20mm diameter is a high-resistance forged D-shaped shackle designed for demanding industrial applications. Crafted from HR stainless steel grade 17-4 PH, it offers exceptional strength and durability, making it suitable for lifting and attachment tasks where high loads are involved. Its superior working and breaking loads significantly surpass standard shackles, with the ability to resist up to 60% more than shackles made from 316L stainless steel, ensuring safety and reliability in critical operations. This shackle features a robust construction with a working load limit (WLL) of 12,340 pounds (5,600 kg) and a breaking load of 61,720 pounds (28,000 kg). Its forged design provides outstanding load distribution and resistance to deformation under stress, ideal for applications such as blocks, head attachments, and other heavy-duty industrial tasks. The shackle’s dimensions are optimized for ease of handling and compatibility with various rigging setups, with a 25/32-inch (20mm) diameter pin and overall length of approximately 2¾ inches. The product bears CE marking, certifying compliance with European safety standards. Please note, this shackle is intended exclusively for industrial lifting applications and should not be used for mooring or marine anchoring purposes. Its high resistance and safety factors make it a reliable choice for environments requiring high load capacities and secure connections. Sold individually, the Wichard HR D Shackle ensures high performance and safety in demanding lifting and attachment scenarios, offering a trusted solution for professionals in heavy industry and construction sectors.

Features:

• Forged HR stainless steel grade (17-4 PH) for maximum strength and durability

• Outstanding working and breaking load capacities for demanding applications

• Up to 60% more resistant than standard 316L stainless steel shackles

• Designed for industrial lifting with a working load limit of 12,340 lbs (5,600 kg)

• CE marked, certifying compliance with European safety standards
