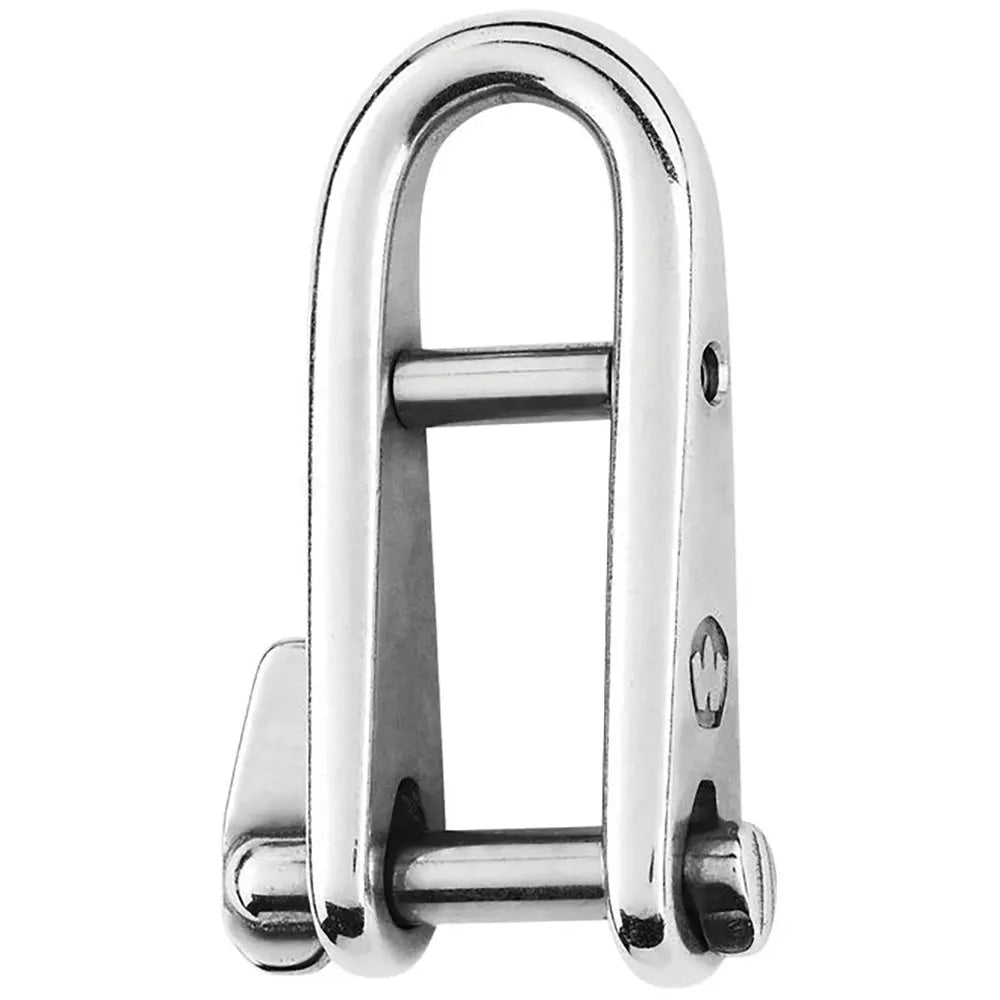

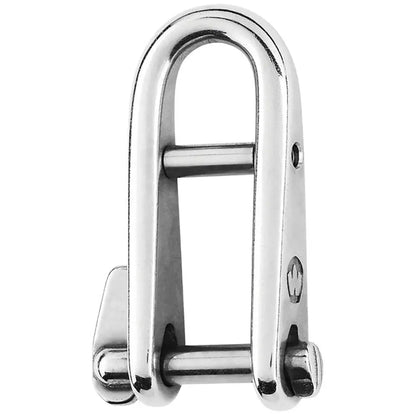

Wichard Marine HR Key Pin Shackle with Bar – 5mm Diameter, High Resistance Stainless Steel

HR Key Pin Shackle With Bar - 5mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• Perfect product for halyards or applications requiring opening/closing the shackle often
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 1050 / (kg) 480
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.068 / (g) 31

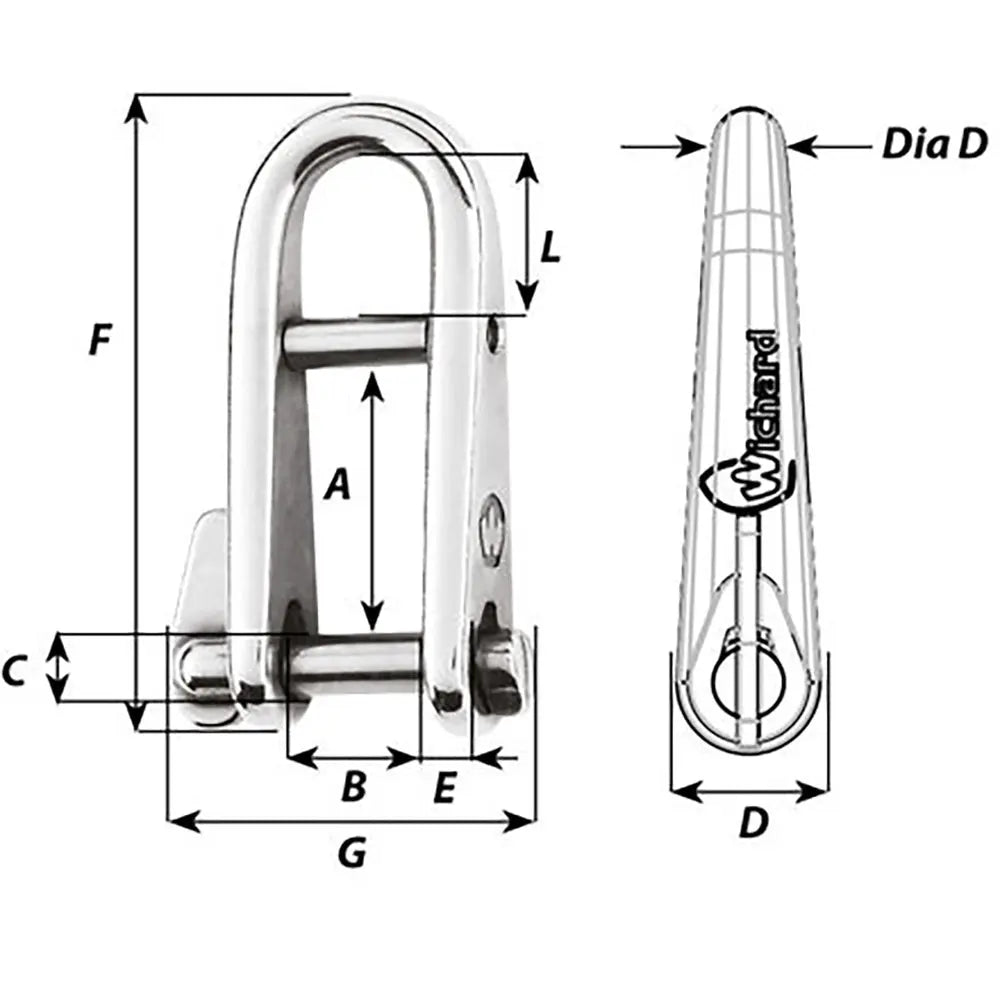

Dimensions:

• A: (inch) 1 29/64" / (mm) 37
• B: (inch) 33/64" / (mm) 13
• C: (inch) 13/64" / (mm) 5
• D: (inch) 7/16" / (mm) 11
• E: (inch) 5/32" / (mm) 4
• F: (inch) 1 59/64" / (mm) 49
• G: (inch) 1 7/32" / (mm) 31
• L: (inch) 15/32" / (mm) 12

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Key Pin Shackle with Bar features a robust 5mm pin diameter made from forged HR stainless steel grade 17.4 PH, offering exceptional strength and durability for demanding industrial applications. Designed with a high working and breaking load capacity, this shackle provides reliable performance under heavy loads, making it suitable for lifting and high-load tasks. Its construction ensures up to 60% greater resistance compared to standard 316L stainless steel shackles, providing enhanced safety and longevity in harsh environments. This shackle is CE marked, confirming compliance with European safety standards. It is specifically engineered for applications requiring frequent opening and closing, such as halyards or rigging where quick adjustments are necessary. Not intended for mooring, the shackle's specifications include a working load limit of 1,050 pounds and a breaking load of 3,300 pounds, with a lightweight design weighing only 0.068 pounds. The compact dimensions facilitate versatile integration into various systems, with key measurements detailed for precise fitting. The Wichard HR Key Pin Shackle is sold individually, ensuring ease of installation and replacement in professional settings. Its high resistance and reliable load capacity make it an excellent choice for industrial lifting, rigging, and other high-load applications requiring frequent handling and high safety margins.

Features:

• Forged HR stainless steel grade 17.4 PH for superior strength and corrosion resistance

• Outstanding working load and breaking load capacities for demanding industrial use

• Up to 60% more resistant than standard 316L stainless steel shackles

• CE marked, indicating compliance with European safety standards

• Designed for high-load applications requiring frequent opening and closing

• Lightweight yet durable construction for ease of handling and long-term use

• Compact dimensions facilitate versatile use in various rigging and lifting setups
