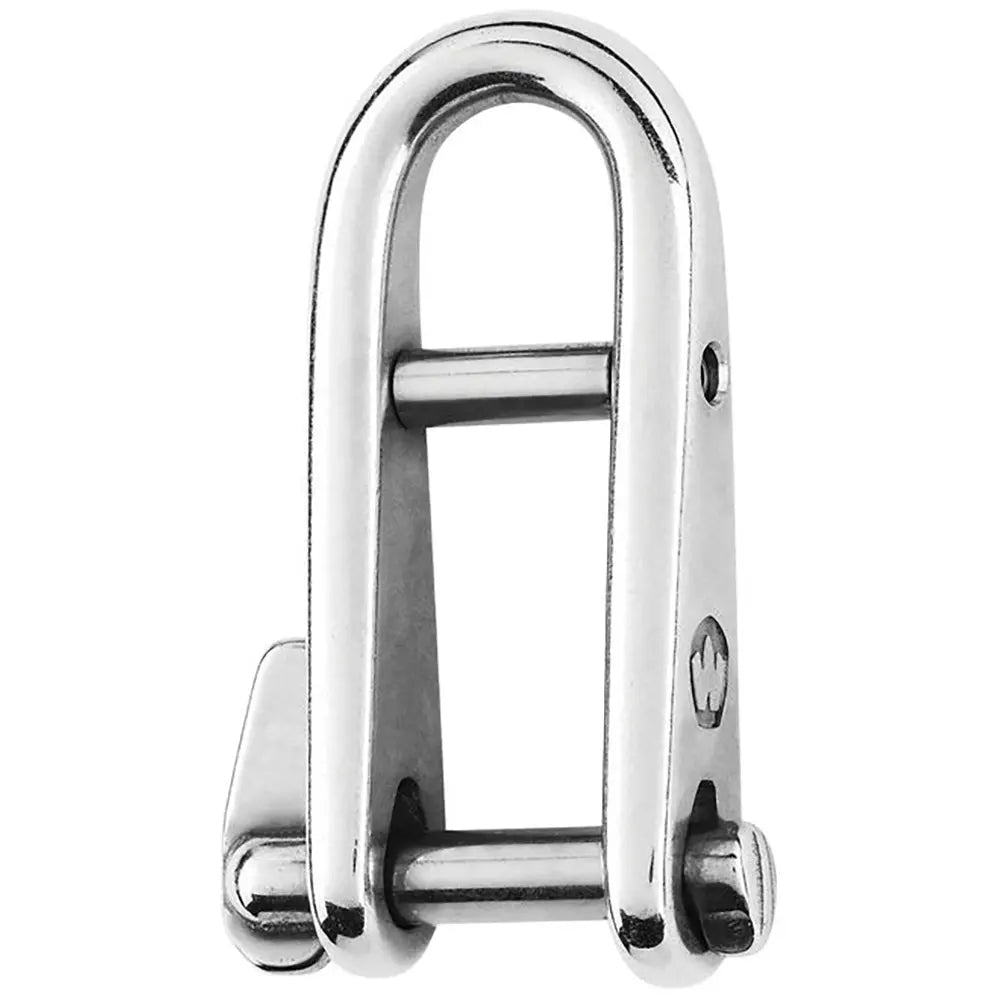

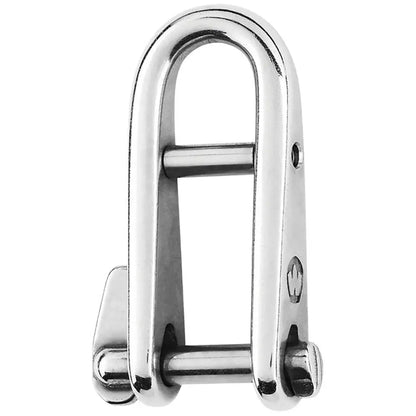

Wichard Marine HR Key Pin Shackle with Bar - 6mm Pin Diameter for Industrial Lifting

HR Key Pin Shackle With Bar - 6mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• Perfect product for halyards or applications requiring opening/closing the shackle often
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 1320 / (kg) 600
• Breaking load: (lb) 4850 / (kg) 2200
• Weight: (lb) 0.117 / (g) 53

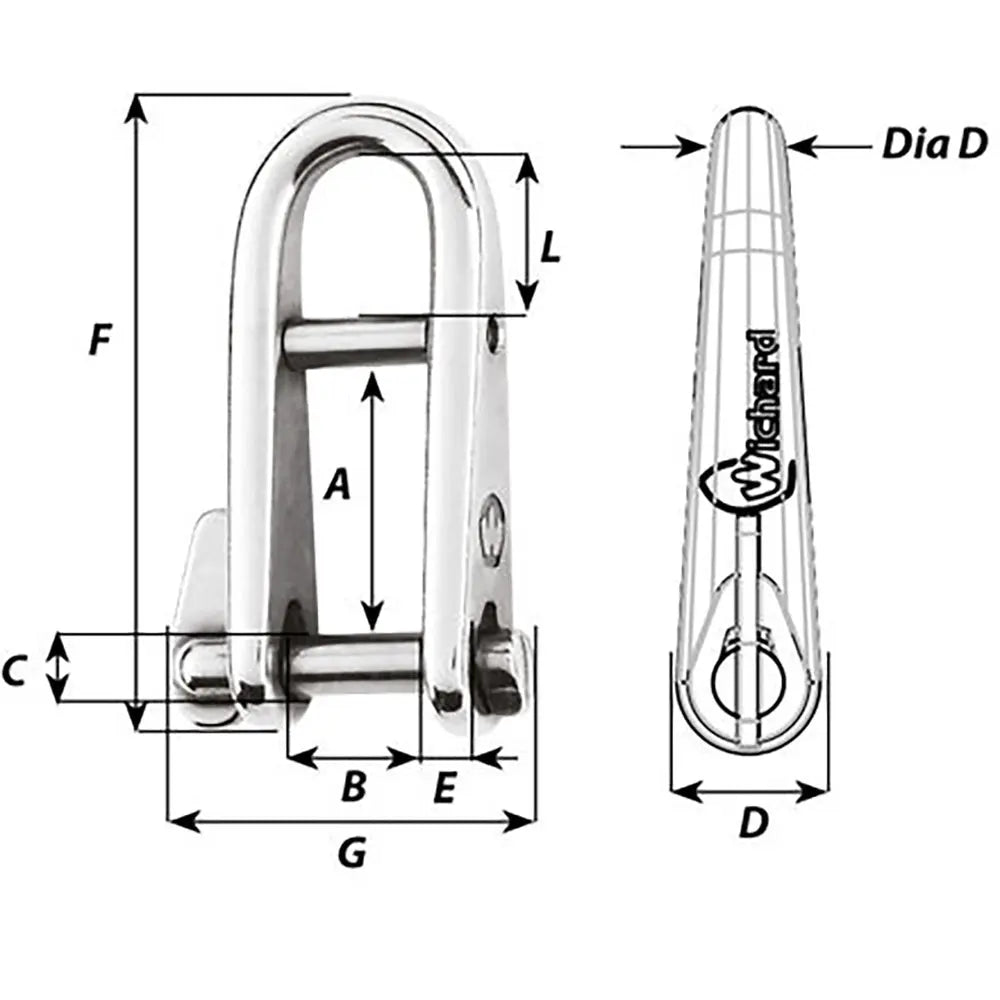

Dimensions:

• A: (inch) 1 49/64" / (mm) 45
• B: (inch) 5/8" / (mm) 16
• C: (inch) 15/64" / (mm) 6
• D: (inch) 33/64" / (mm) 13
• E: (inch) 5/32" / (mm) 4
• F: (inch) 2 23/64" / (mm) 60
• G: (inch) 1 29/64" / (mm) 37
• L: (inch) 19/32" / (mm) 15

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Key Pin Shackle with Bar, featuring a 6mm pin diameter, is engineered for high-demand industrial lifting applications. Constructed from forged HR stainless steel grade 17.4 PH, this shackle offers exceptional strength and durability. Its outstanding working and breaking loads make it suitable for demanding environments where safety and reliability are paramount. The shackle is up to 60% more resistant than standard 316L stainless steel shackles, providing enhanced security during heavy-duty operations. With CE marking, it meets rigorous safety standards for industrial use. This shackle is ideal for applications requiring high loads, such as lifting and rigging, and is designed for frequent opening and closing, making it suitable for halyards and similar tasks. However, it is not recommended for mooring applications, where different specifications are necessary.

The Wichard HR Key Pin Shackle is engineered with a working load limit of 600 kg (1320 lbs) and a breaking load of 2200 kg (4850 lbs), ensuring safety margins are maintained. Its lightweight design, weighing only 53 grams (0.117 lbs), facilitates ease of handling and installation. The dimensions are optimized for industrial use, with the critical parameters ensuring compatibility with various rigging systems. The shackle’s robust construction and high resistance properties make it a reliable component for demanding lifting tasks, especially where frequent opening and closing are required. This product is sold individually, providing flexibility for assembly and maintenance operations.

Designed with precision, the Wichard Marine HR Key Pin Shackle combines strength, resilience, and safety in a compact form factor. Its forged construction guarantees durability, while the high resistance stainless steel ensures longevity even in corrosive environments. Certified with CE marking, it adheres to international safety standards, making it a trusted choice for industrial professionals. Whether used in construction, rigging, or other heavy-duty applications, this shackle delivers consistent performance, ensuring secure connections and reliable operation across various demanding scenarios.

Features:

• Forged HR stainless steel grade (17.4 PH) construction for maximum strength and durability

• Outstanding working load limit of 1320 lbs (600 kg) and breaking load of 4850 lbs (2200 kg)

• Up to 60% more resistant than standard 316L stainless steel shackles

• CE marked for compliance with safety standards

• Designed for high load applications requiring frequent opening and closing

• Lightweight design at only 0.117 lbs (53 grams) for ease of handling

• Optimized dimensions for industrial rigging and lifting operations

• Sold as an individual component, suitable for various assembly needs
