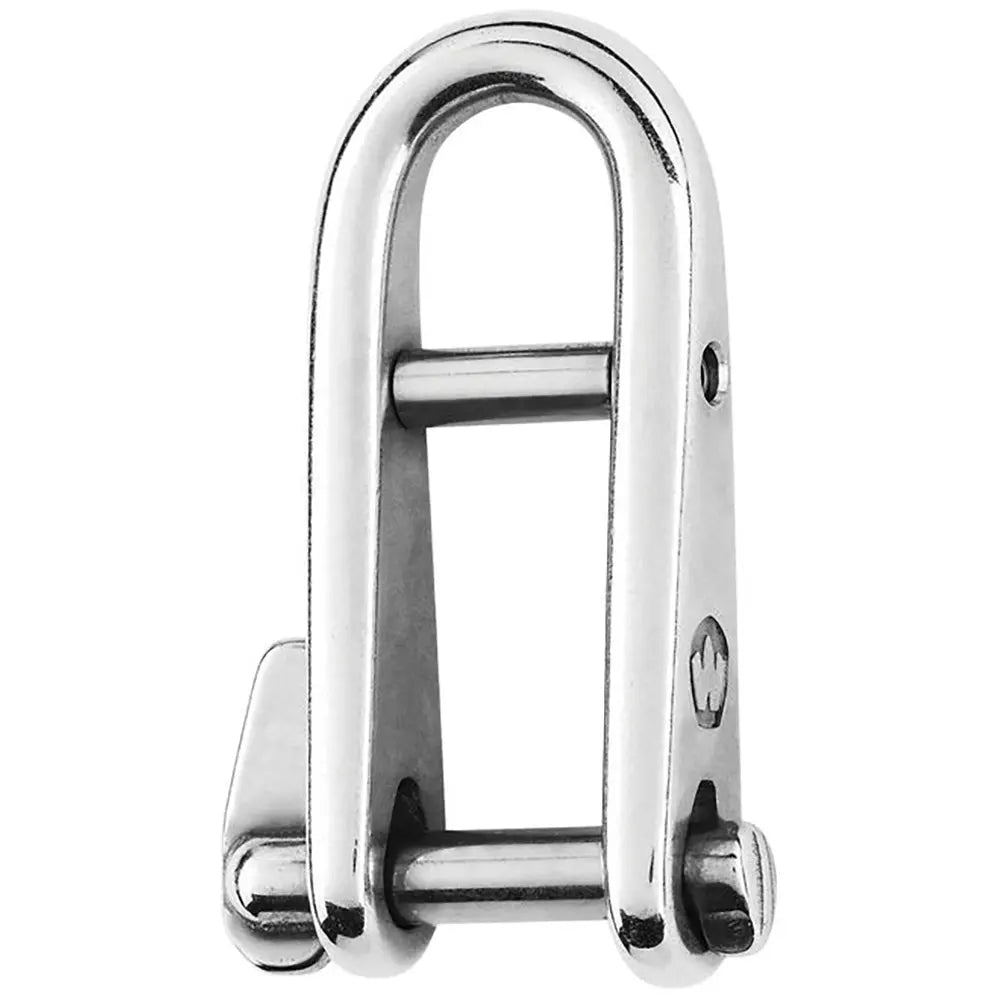

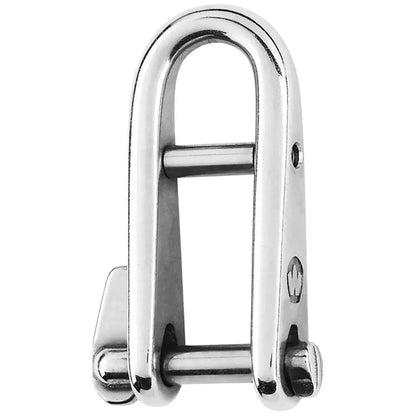

Wichard Marine HR Key Pin Shackle with Bar - 8mm Pin Diameter for Heavy Lifting

HR Key Pin Shackle With Bar - 8mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• Perfect product for halyards or applications requiring to opening/closing the shackle often
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.271 / (g) 123

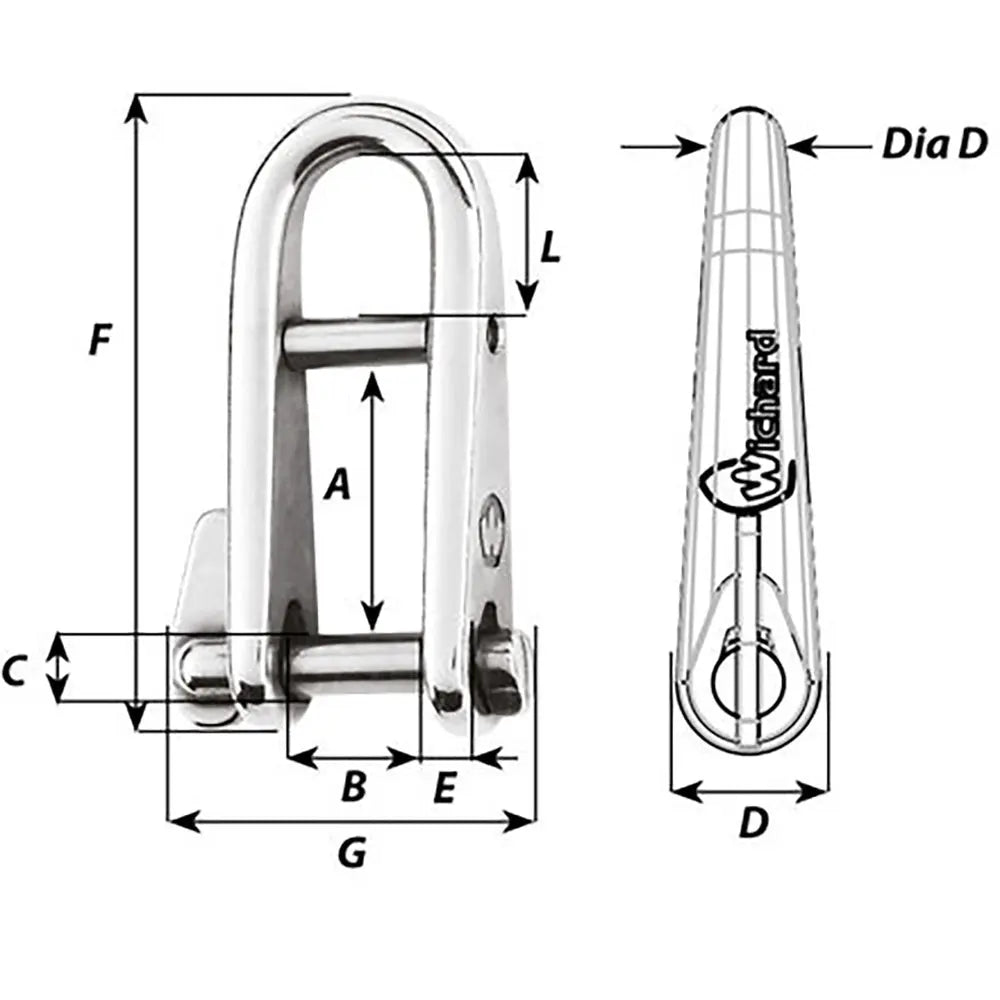

Dimensions:

• A: (inch) 2 21/64" / (mm) 59
• B: (inch) 53/64" / (mm) 21
• C: (inch) 5/16" / (mm) 8
• D: (inch) 43/64" / (mm) 17
• E: (inch) 15/64" / (mm) 6
• F: (inch) 3 7/64" / (mm) 79
• G: (inch) 1 57/64" / (mm) 48
• L: (inch) 25/32" / (mm) 20

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Key Pin Shackle with Bar, featuring an 8mm pin diameter, is engineered for demanding industrial applications requiring high load capacities. Crafted from forged HR stainless steel grade 17.4 PH, this shackle offers exceptional strength and durability. Its outstanding working load limit of approximately 960 pounds and breaking load of about 3,500 pounds make it suitable for heavy lifting tasks where safety and reliability are paramount. The shackle's high resistance design provides up to 60% greater strength compared to standard 316L stainless steel shackles, making it ideal for applications that demand frequent opening and closing, such as halyards or rigging systems. Please note, this product is intended exclusively for industrial lifting applications and should not be used for mooring purposes. The CE marking indicates compliance with safety standards, ensuring confidence in its performance and quality.

Features:

• Forged D shackle in HR stainless steel grade 17.4 PH for superior strength and corrosion resistance

• Outstanding working and breaking load capacities suitable for heavy-duty industrial use

• Up to 60% more resistant than shackles made from 316L stainless steel

• Designed specifically for lifting and industrial applications with high load demands

• CE marked for compliance with safety standards

• Ideal for applications requiring frequent opening and closing, such as halyards
