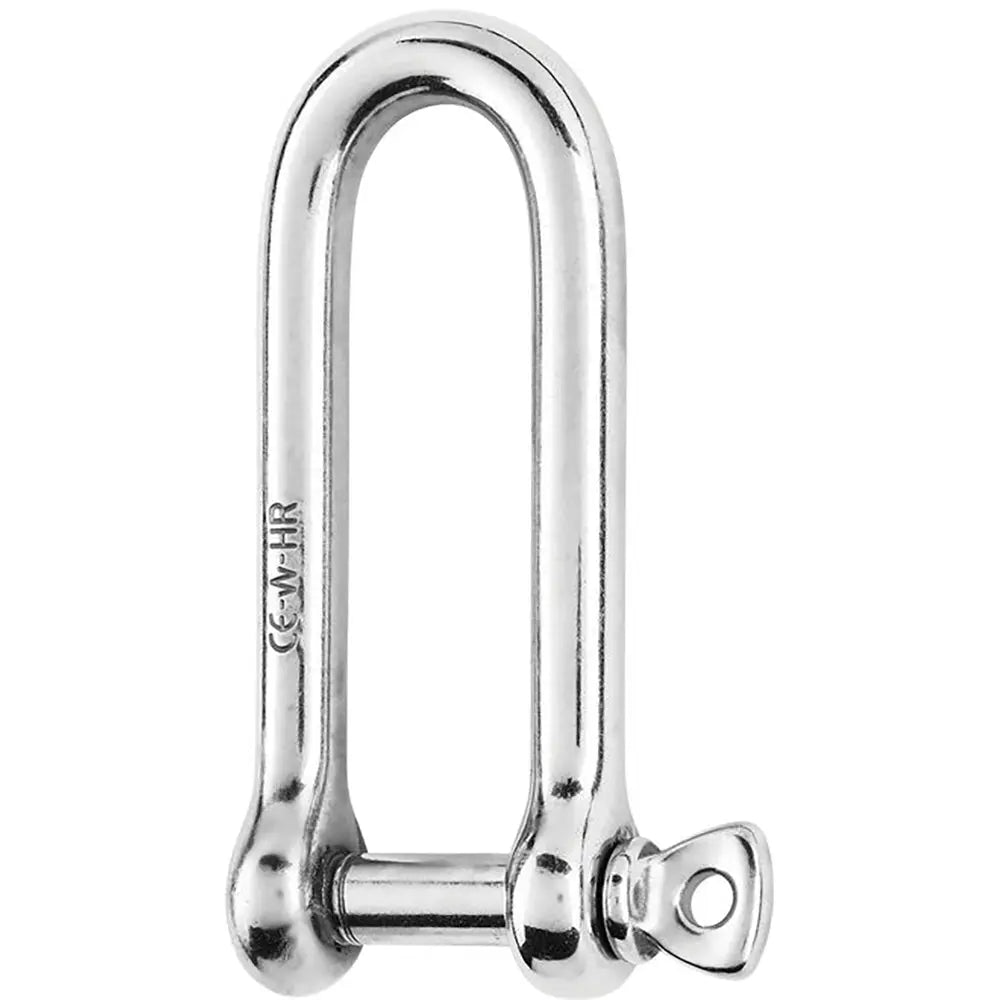

Wichard Marine HR Long D Shackle - 10mm Diameter - 25/64 inch for Heavy Duty Lifting

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

• Forged long shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5820 / (kg) 2640
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.362 / (g) 164

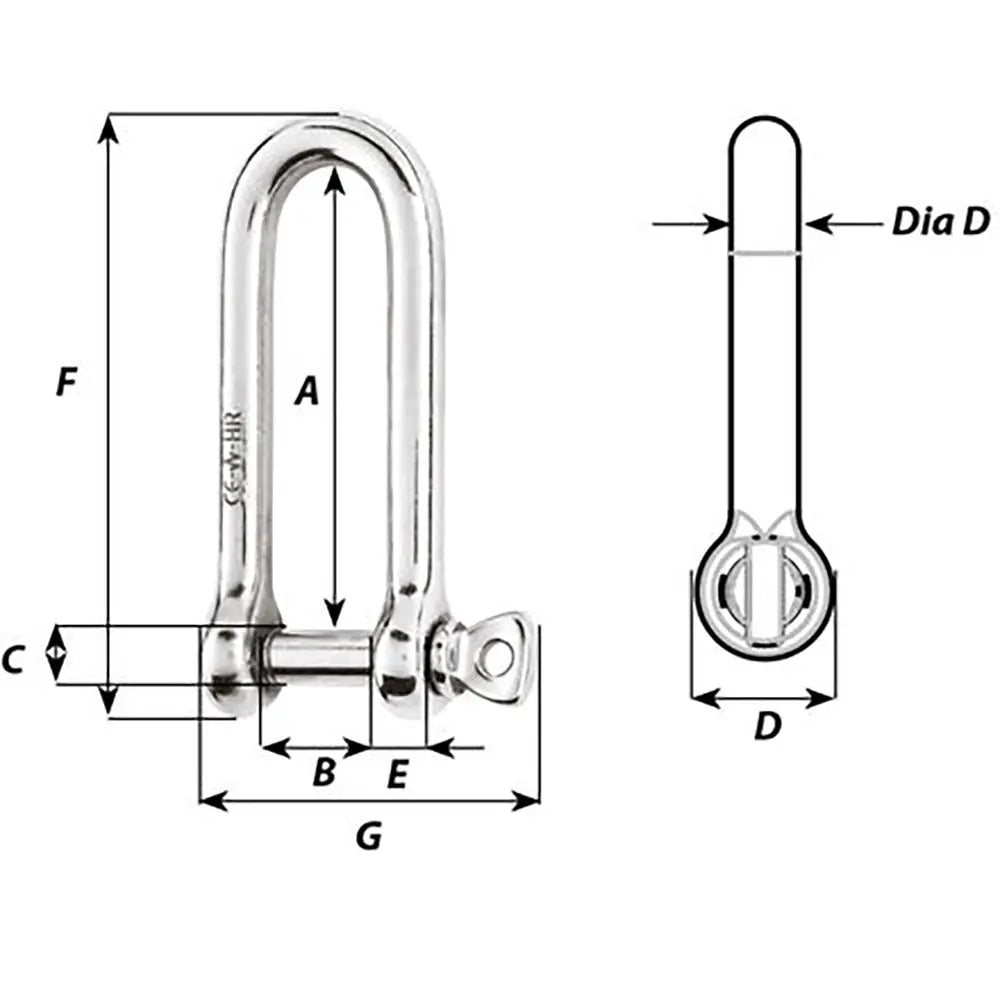

Dimensions:

• A: (inch) 3 5/64" / (mm) 78
• B: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Long D Shackle, part number 11215W, is engineered from high-resistance stainless steel grade 17.4 PH, offering superior strength and durability for industrial lifting applications. Featuring a forged long shackle design, this component provides outstanding working and breaking loads, making it suitable for demanding tasks where safety and reliability are critical. Its construction allows it to be up to 60% more resistant than standard 316L stainless steel shackles, ensuring long-lasting performance under high loads. This shackle is CE marked, confirming compliance with international safety standards, and is intended solely for industrial use, particularly lifting operations with a working load limit of 2,640 pounds and a breaking load of 6,000 pounds. The design includes a 10mm diameter pin with a length of approximately 3-5/64 inches, making it ideal for attaching blocks, heads, or other high-load components in various industrial setups. Its robust construction and high resistance make it a reliable choice for applications demanding high strength and safety margins. The Wichard HR Long D Shackle is sold individually and does not support mooring or nautical applications, emphasizing its focus on industrial lifting tasks. With a weight of just over half a pound, this shackle combines strength with manageable handling characteristics, ensuring ease of use in demanding environments. Whether used in construction, rigging, or heavy machinery, this shackle provides a secure connection point that meets rigorous safety and load-bearing standards.

Features:

• Forged long shackle in HR stainless steel grade (17,4 PH) for high strength and durability

• Outstanding working and breaking load capacities suitable for heavy-duty applications

• Up to 60% more resistant than standard 316L stainless steel shackles, ensuring longer service life

• CE marked, confirming compliance with safety standards for industrial use

• Designed specifically for high load lifting and attachment applications
