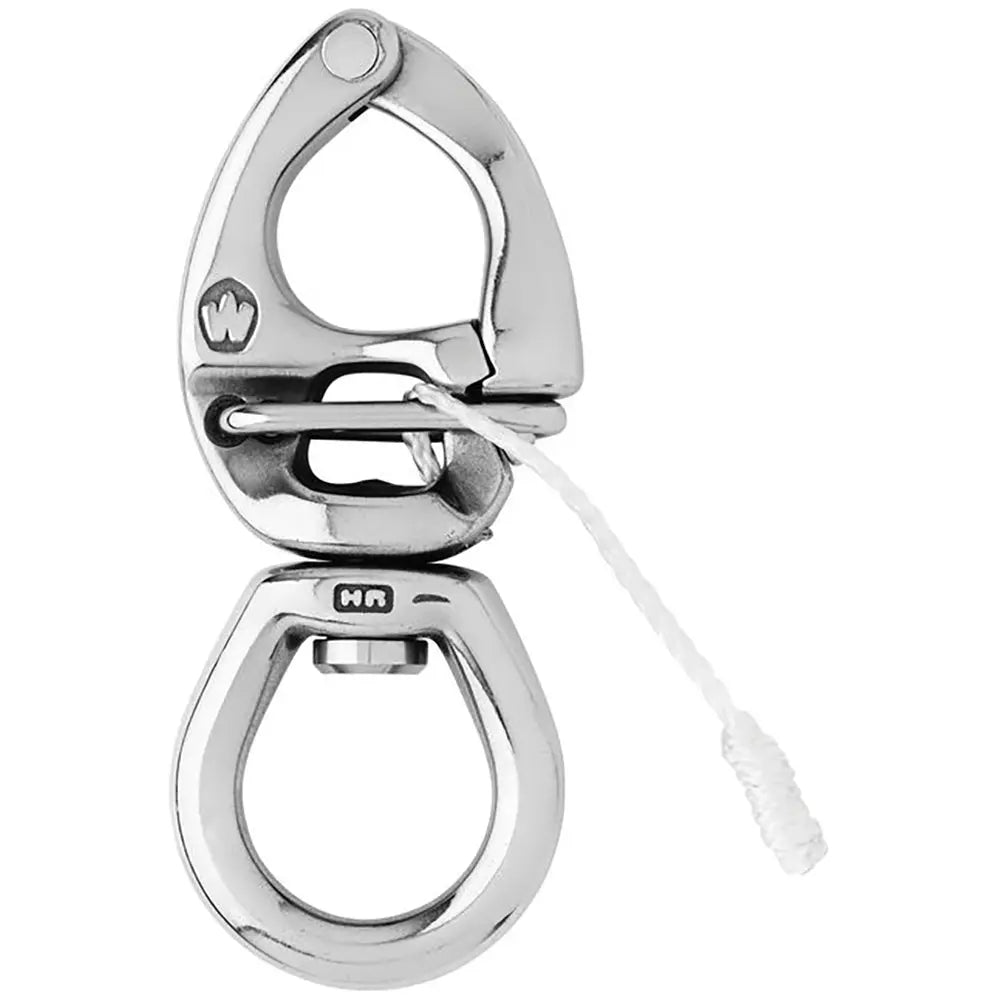

Wichard Marine HR Quick Release Snap Shackle with Large Bail - 145mm Length

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 6170 / (kg) 2800
• Breaking load: (lb) 13880 / (kg) 6300
• Weight: (lb) 0.873 / (g) 396

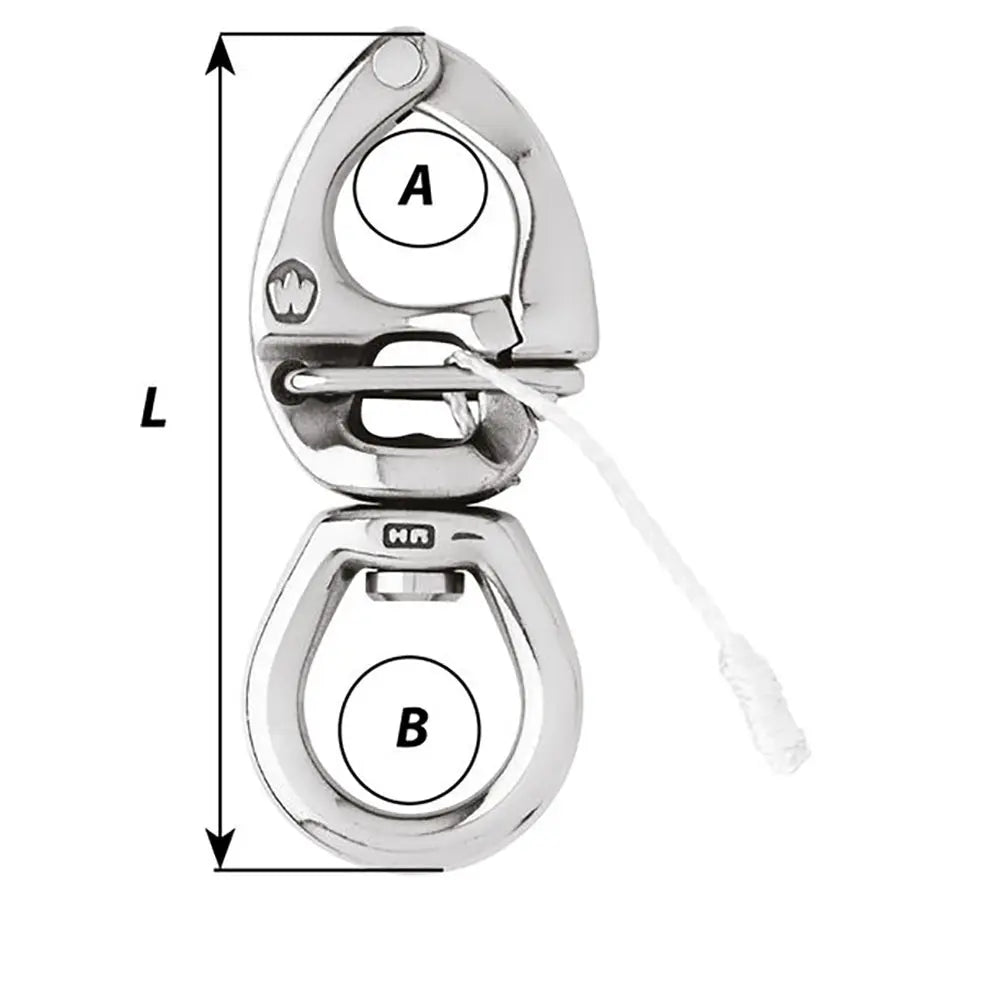

Dimensions:

• A: (inch) 1 3/16" / (mm) 30
• B: (inch) 1 25/64" / (mm) 35.5
• Length: (inch) 5 45/64" / (mm) 145

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Quick Release Snap Shackle with Large Bail is a high-performance marine hardware designed for demanding sailing applications. Crafted from premium HR 17.4 PH stainless steel, this shackle offers exceptional strength and corrosion resistance, making it ideal for spinnaker operations and attaching multiple lines such as spinnaker sheets. Its forged construction ensures durability, while the large bail facilitates easy connection and disconnection during critical maneuvers. The snap shackle features a pull-lanyard opening system that allows quick releases, enhancing safety and efficiency during sailing. With an outstanding working load of 6,170 pounds and a breaking load of 13,880 pounds, it is engineered to handle intense loads reliably. The swivel design enables free rotation, preventing line tangling and ensuring smooth operation under load. Its compact size and lightweight design contribute to ease of handling on deck, without compromising strength or safety. Suitable for both professional and recreational sailors, this shackle combines innovative design with robust materials to support demanding nautical tasks. Whether used for spinnaker sheets or multiple line attachments, the Wichard HR quick-release shackle provides a secure, reliable solution that enhances sailing performance and safety. Its high resistance properties and safety factors make it a trusted component in marine applications, ensuring long-term service and dependable operation in harsh maritime environments.

Features:

• HR forged (17.4 PH) stainless steel construction for maximum strength and corrosion resistance

• Large bail facilitates easy attachment and quick release

• Pull-lanyard opening for fast and secure operation

• Designed for attaching multiple lines such as spinnaker sheets

• Outstanding working and breaking loads for demanding applications

• Swivel feature allows free rotation to prevent line tangling
