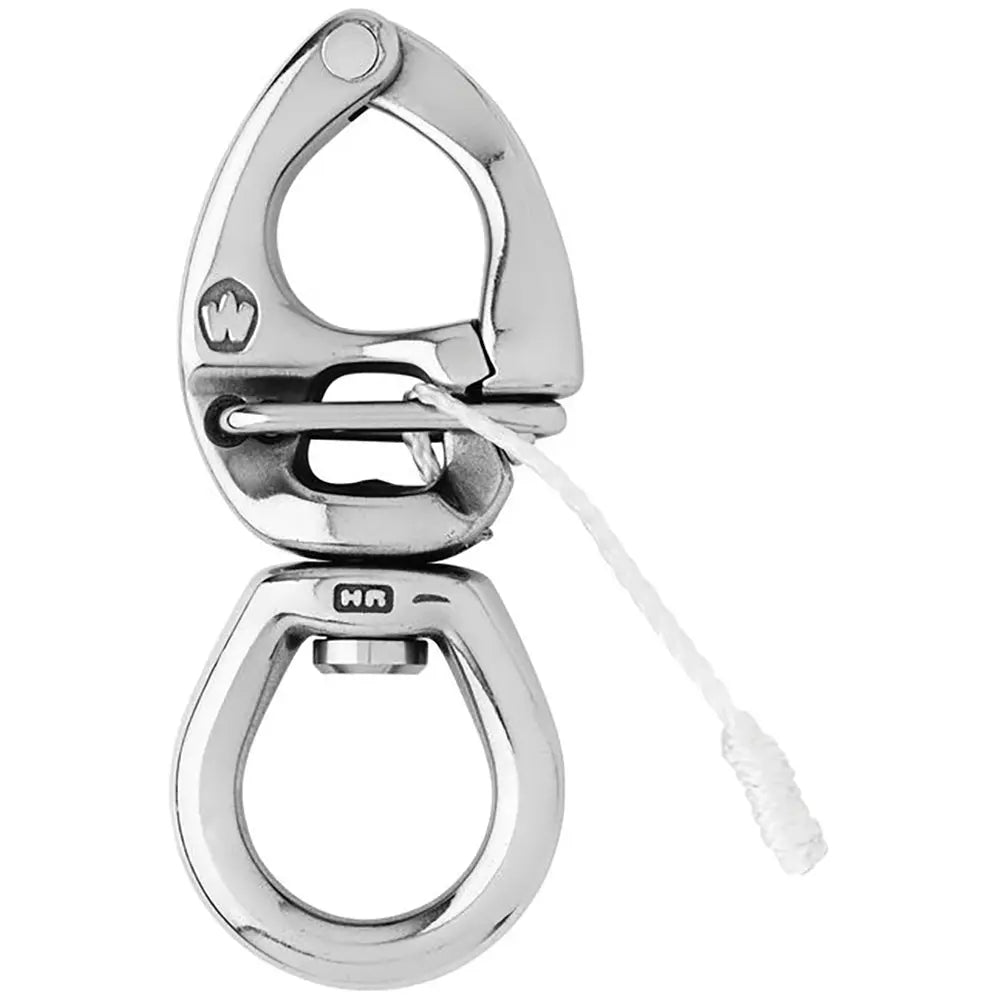

Wichard Marine HR Quick Release Snap Shackle with Large Bail – 4-21/64 inches Length, Part Number 2775W

HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.353 / (g) 160

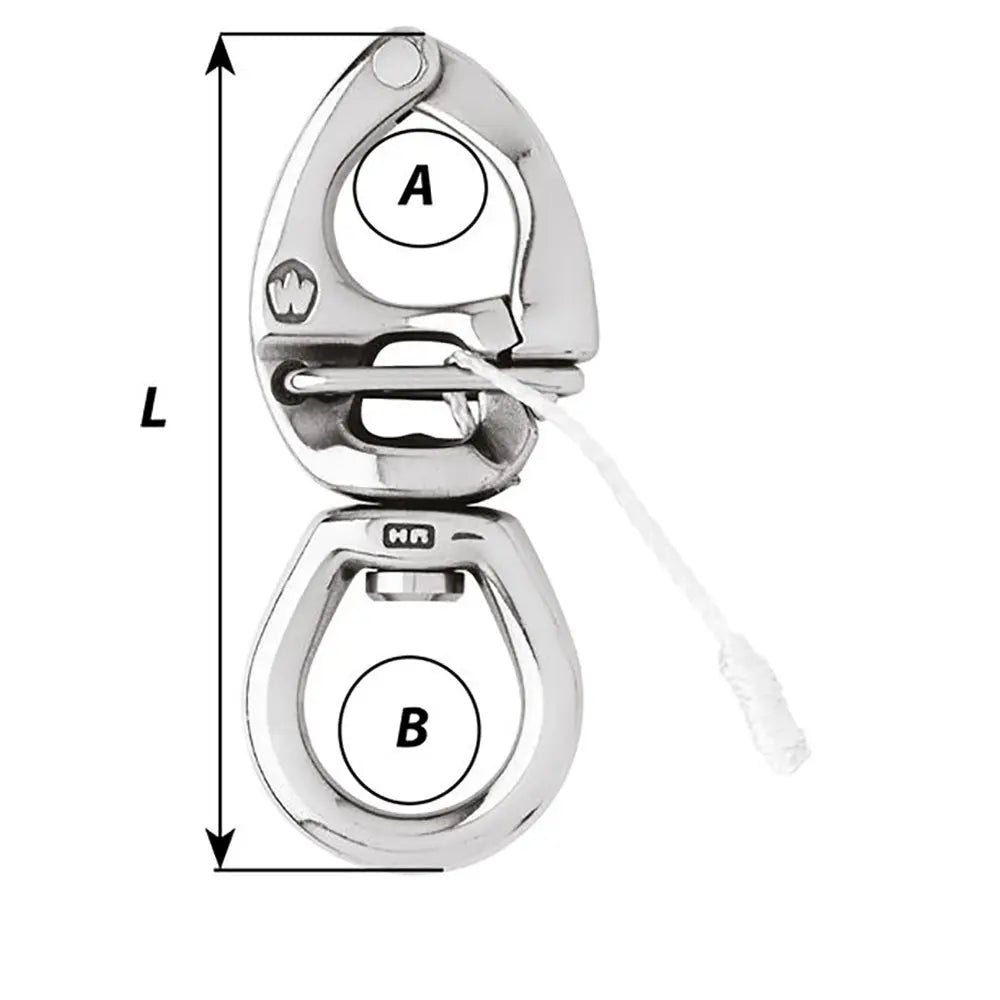

Dimensions:

• A: (inch) 25/32" / (mm) 20
• B: (inch) 1 3/64" / (mm) 26.5
• Length: (inch) 4 21/64" / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Quick Release Snap Shackle with Large Bail is designed for demanding nautical applications. Crafted from high-resistance (HR) 17.4 PH stainless steel, this shackle offers exceptional strength and durability for marine use. Its forged construction ensures outstanding working and breaking loads, making it suitable for various sailing tasks such as spinnaker operations and attaching multiple lines like spinnaker sheets. The large bail facilitates easy handling and secure attachment, while the swivel feature allows free rotation, reducing line twist and enhancing operational efficiency. The quick-release mechanism is activated by pulling the attached lanyard, providing swift and reliable connections that are essential during critical sailing maneuvers. With a length of approximately 4-21/64 inches (110 mm) and a weight of just around 0.353 pounds (160 grams), this shackle combines strength with lightweight design, minimizing added load on your rigging. Its high working load capacity of 3,520 pounds (1,600 kg) and breaking load of 6,610 pounds (3,000 kg) ensure safety margins for heavy-duty applications. The component is ideal for both professional and recreational sailors seeking a dependable and easy-to-operate snap shackle for complex line configurations. The product is sold individually and intended for maritime use, with safety factors aligning with industry standards. Trust the Wichard Marine HR Snap Shackle for reliable performance in demanding sailing environments, ensuring secure line connections and quick release when needed.

Features:

• Forged HR 17.4 PH stainless steel construction for high strength and corrosion resistance

• Large bail facilitates easy attachment and handling

• Quick-release mechanism activated by pulling the lanyard for swift operation

• Swivel feature allows free rotation to prevent line twist

• Outstanding working and breaking loads suitable for demanding marine applications

• Ideal for spinnaker operations and attaching multiple lines such as spinnaker sheets

• Lightweight design with approximately 0.353 pounds (160 grams)

• Designed for durable, reliable performance in demanding sailing environments
