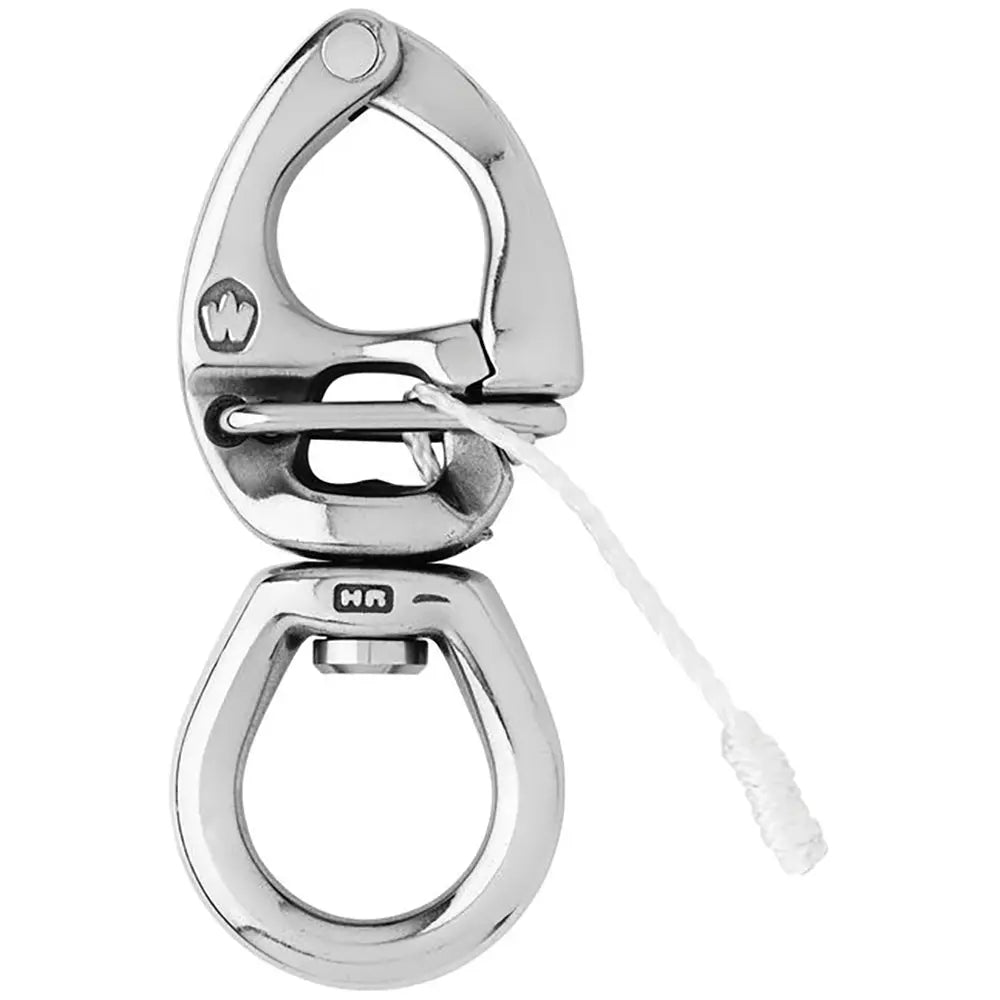

Wichard Marine HR Quick Release Snap Shackle with Large Bail - 90mm Length

HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.22 / (g) 100

Dimensions:

• A; (inch) 5/8" / (mm) 16
• B: (inch) 29/32" / (mm) 23
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Quick Release Snap Shackle with Large Bail offers reliable performance for demanding sailing applications. Made from high-resistance 17.4 PH stainless steel, this shackle is engineered for strength, durability, and ease of use. Its large bail design simplifies attachment to multiple lines such as spinnaker sheets, making it an essential component for sailboat operations. The quick-release feature is activated by pulling the lanyard, allowing rapid disconnection when needed. The swivel mechanism enables free rotation, reducing line twist and ensuring smooth operation during critical maneuvers. This snap shackle's outstanding working and breaking loads provide confidence in high-stress situations, whether in racing or routine sailing. Its compact size and lightweight construction make it suitable for a wide range of nautical applications, delivering both safety and convenience in a durable package. Perfect for spinnaker setups and other line attachment needs, the Wichard HR snap shackle is a dependable choice for serious sailors seeking performance and reliability.

Features:

• Forged from high-resistance 17.4 PH stainless steel for strength and durability

• Large bail design facilitates attachment to multiple lines such as spinnaker sheets

• Pull-lanyard activation allows quick release for rapid disconnection

• Swivel feature provides free rotation to prevent line twist

• High working load and breaking load ensure safety in demanding conditions

• Ideal for spinnaker operations and multi-line attachments
