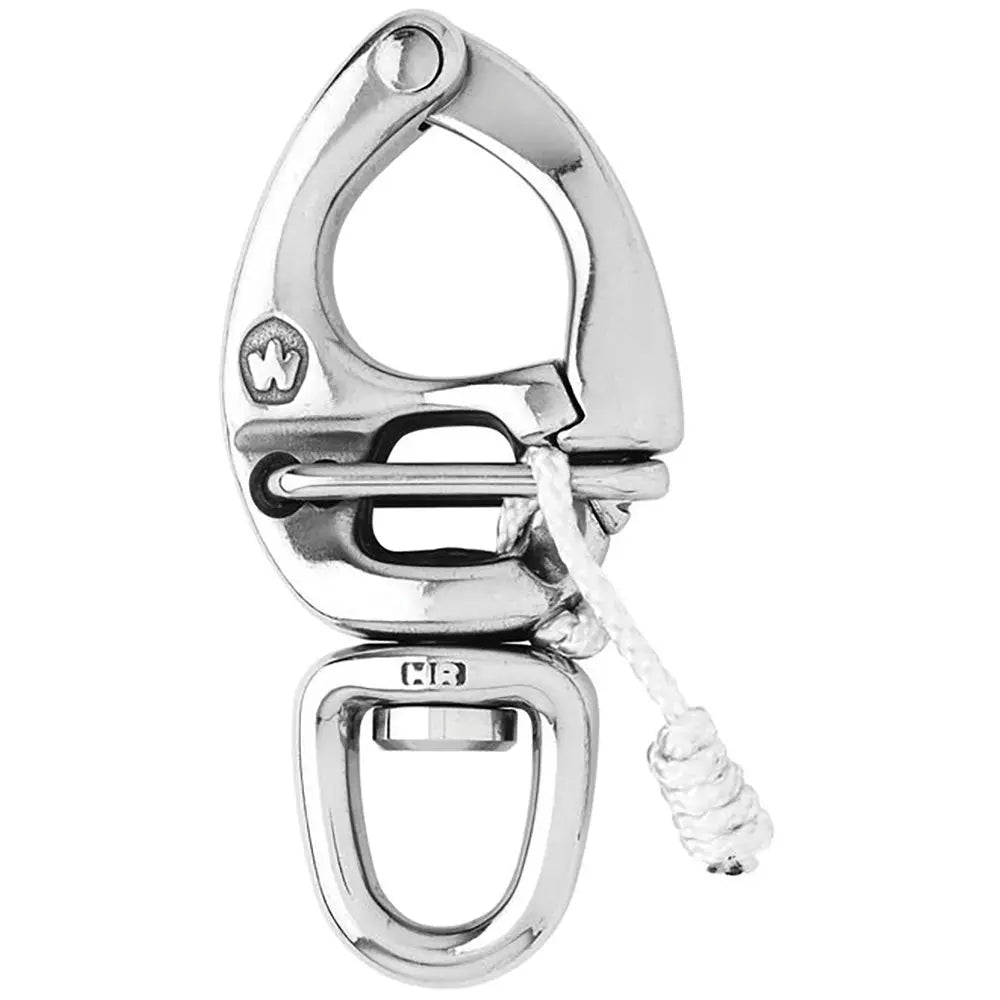

Wichard Marine HR Quick Release Snap Shackle with Swivel Eye - 150mm Length

HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11460 / (kg) 5200
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.208 / (g) 548

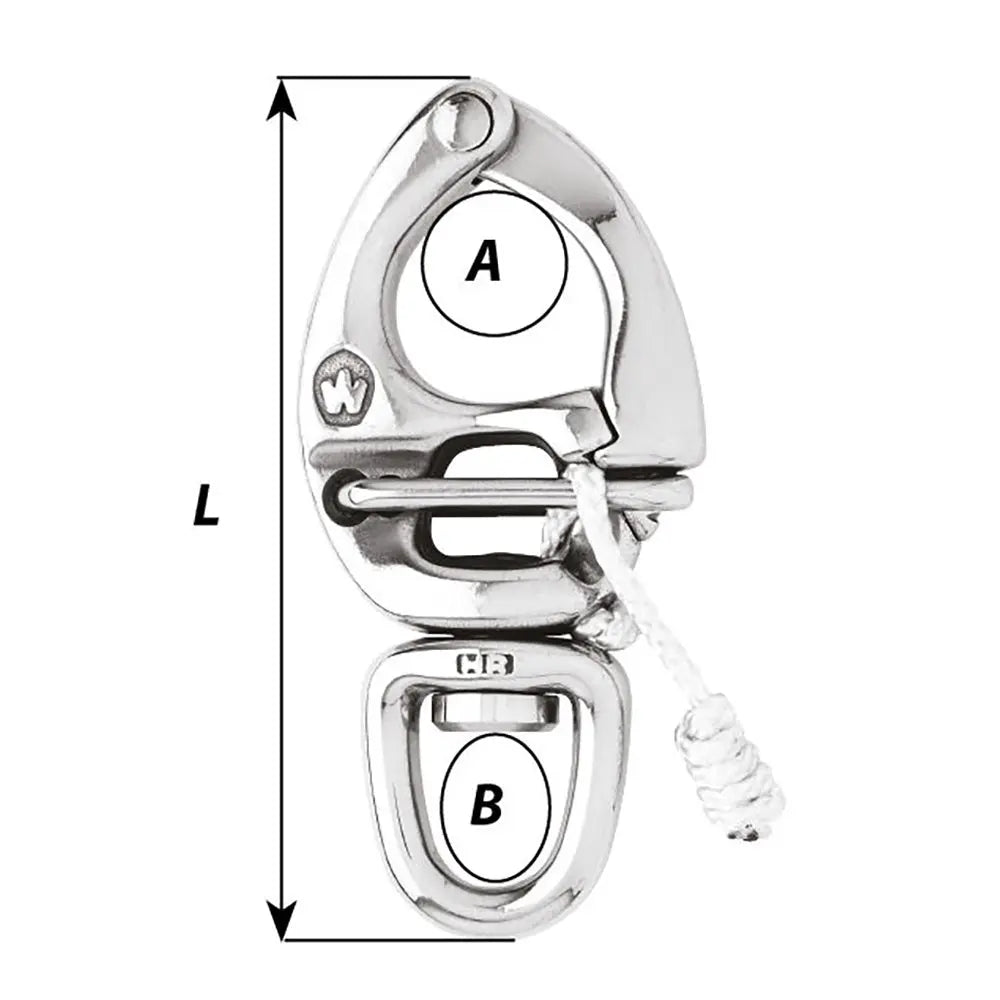

Dimensions:

• A: (inch) 1 11/32" / (mm) 34
• B: (inch) 15/16" / (mm) 24
• Length: (inch) 5 29/32" / (mm) 150

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Quick Release Snap Shackle with Swivel Eye offers a robust and reliable connection solution for demanding maritime applications. Crafted from high-resistance (HR) 17.4 PH stainless steel, this shackle is engineered for durability and strength, making it ideal for spinnaker operations, halyards, and sheet attachments. Its forged construction ensures outstanding working and breaking loads, providing safety margins necessary for critical sailing tasks. The snap shackle features a convenient lanyard pull mechanism for quick release, facilitating swift adjustments and secure connections. The swivel eye design allows for free rotation, reducing torsion and ensuring smooth operation under load. With a length of approximately 6 inches, it is well-suited for various rigging configurations, combining ease of use with high performance. This component is perfect for sailors seeking a dependable, easy-to-operate shackle that withstands harsh marine conditions and heavy loads. Suitable for both recreational and professional sailing, it ensures safety and efficiency in complex rigging setups. The Wichard HR Quick Release Snap Shackle is sold individually, offering a versatile and durable solution for your maritime hardware needs.

Features:

• Forged from high-resistance (HR) 17.4 PH stainless steel for maximum strength and durability

• Quick-release mechanism activated by pulling the lanyard for fast and secure operation

• Swivel eye design allows free rotation to prevent torsion and facilitate smooth movement

• Outstanding working and breaking loads ensure safety during demanding sailing conditions

• Ideal for spinnaker operations, halyards, and sheet attachments with a length of 150mm (about 6 inches)
