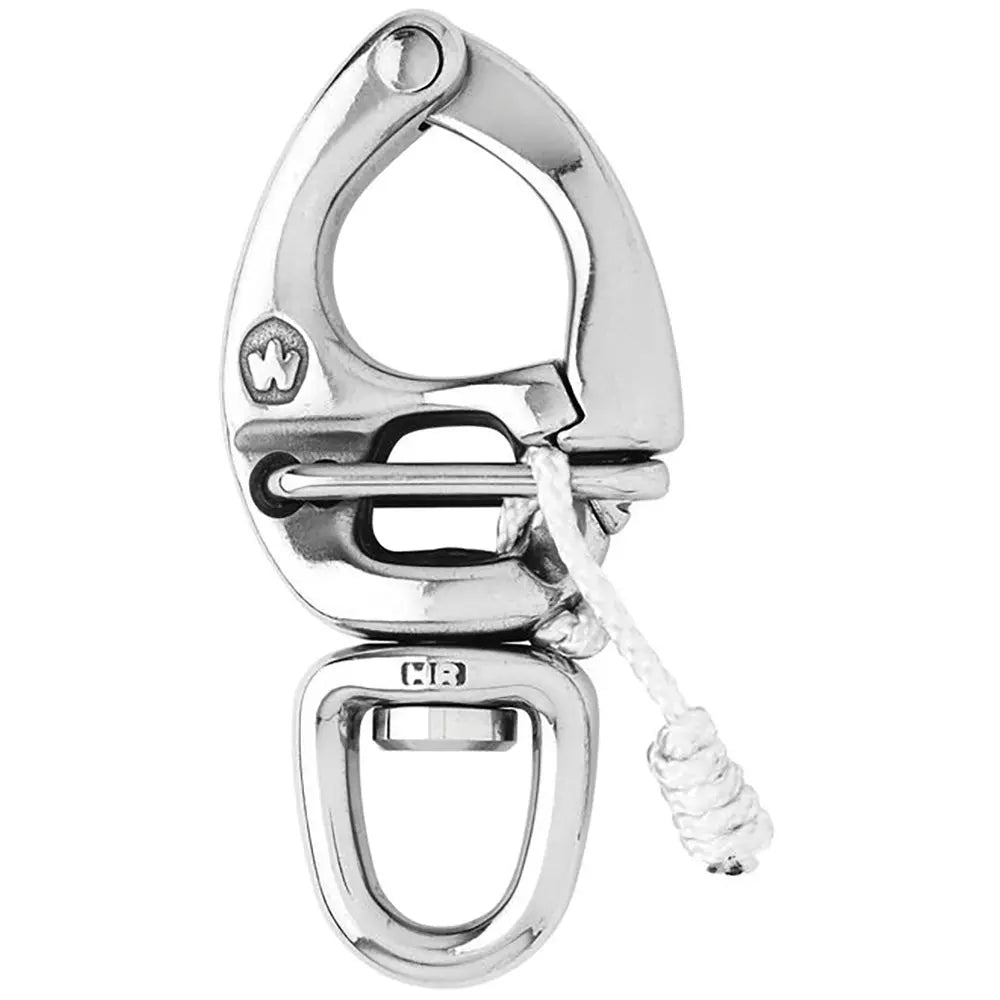

Wichard Marine HR Quick Release Snap Shackle with Swivel Eye – 90mm Length for Sailing and Marine Applications

HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 7050 / (kg) 3200

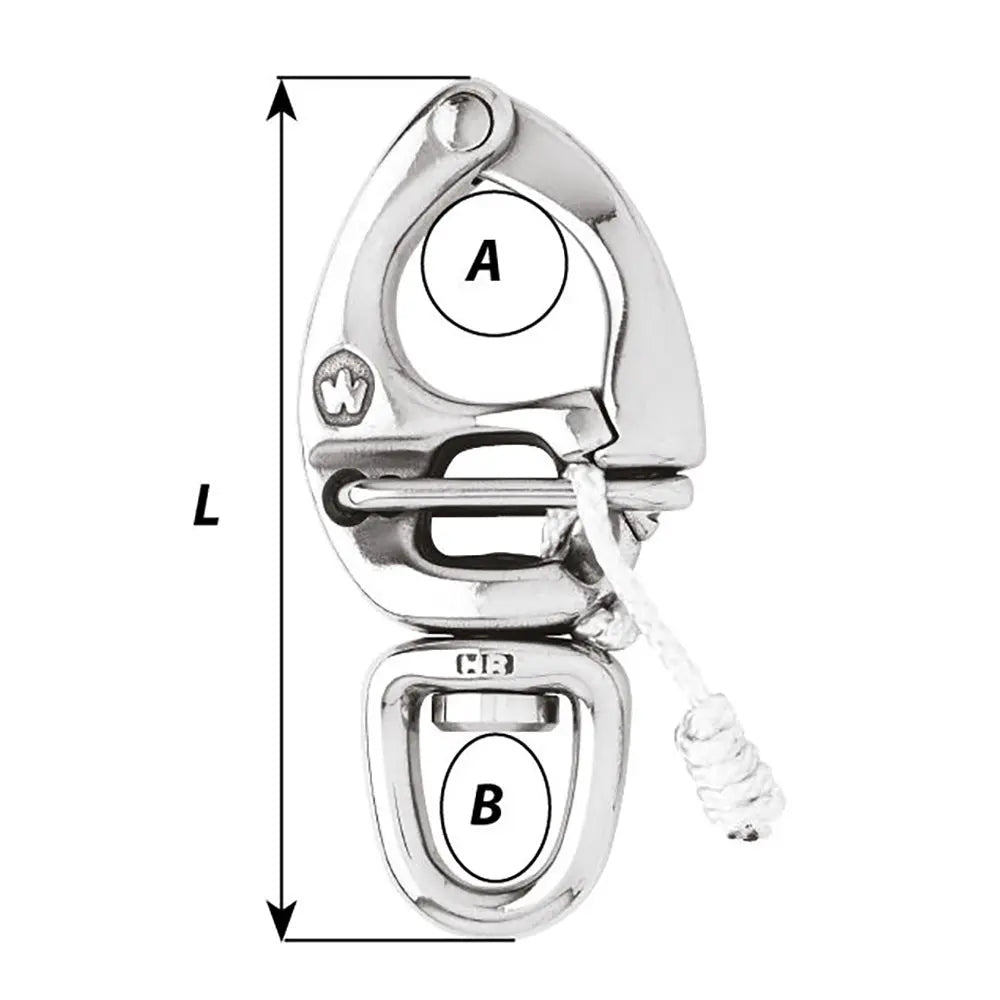

Dimensions:

• A: (inch) 25/32" / (mm) 20
• B: (inch) 17/32" / (mm) 13.5
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Quick Release Snap Shackle with Swivel Eye is a high-quality, durable hardware component designed for demanding nautical tasks. Crafted from premium HR 17.4 PH stainless steel, this snap shackle offers exceptional strength and corrosion resistance, making it ideal for use in spinnaker operations, halyards, and sheet attachments. Its 90mm (approximately 3-3/8 inches) length provides a versatile and reliable connection point for various sailing gear. The open mechanism is activated by pulling the lanyard, allowing quick and easy attachment or release under load, which is essential during sail adjustments or emergency situations. The swivel eye feature ensures free rotation, reducing wear and preventing tangling during operation, thereby enhancing performance and longevity. With a working load capacity of up to 3,520 pounds and a breaking load of 7,050 pounds, this snap shackle is engineered to meet rigorous safety standards and demanding marine environments. It is suitable for both recreational and professional sailing applications, providing a dependable connection that can handle high loads with ease. The compact and robust design ensures ease of handling and secure attachment, making it an indispensable component for sailors seeking reliability and quick-release functionality in their gear. Sold individually, the Wichard HR Snap Shackle combines strength, safety, and convenience, ensuring your sailing hardware performs under pressure and enhances your overall sailing experience.

Features:

• Forged HR 17.4 PH stainless steel construction for exceptional strength and corrosion resistance

• Quick-release mechanism activated by pulling the lanyard for fast, reliable operation

• Swivel eye allows free rotation to prevent tangling and reduce wear

• Designed for high working load capacity of 3,520 pounds and breaking load of 7,050 pounds

• Ideal for spinnaker operations, halyards, and sheet attachments in marine applications
