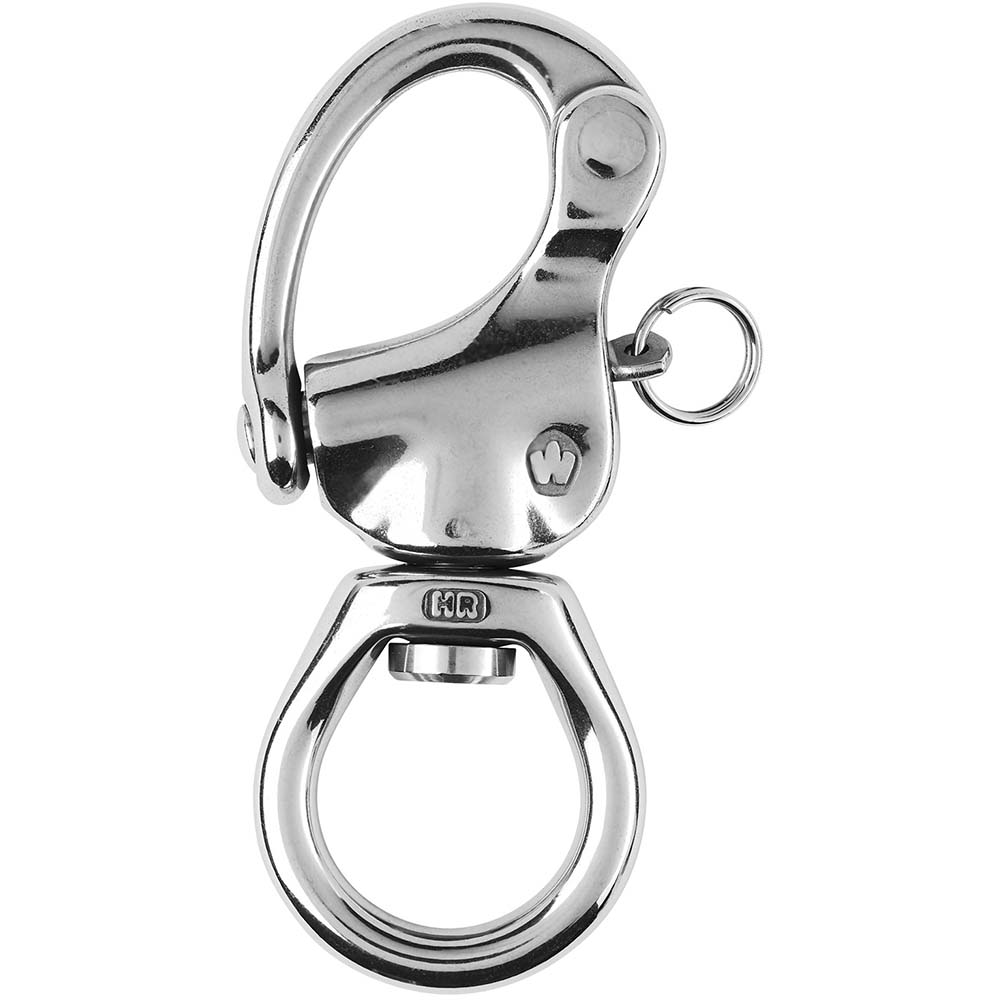

Wichard Marine HR Snap Shackle Large Bail, 105mm Length – Grade 17.4 PH Stainless Steel

HR Snap Shackle - Large Bail - Length 105mm

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
• The large eye allows attaching several ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Length (inch) 4-9/64"
• Working load (lb) 2820
• Breaking load (lb) 7930
• Weight (lb) 0.353

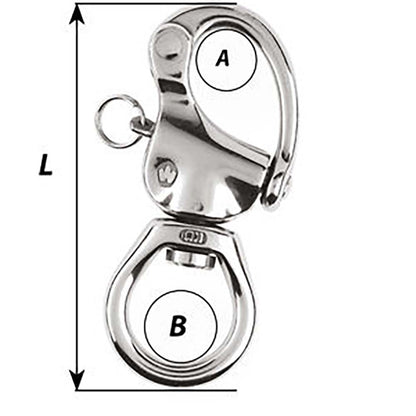

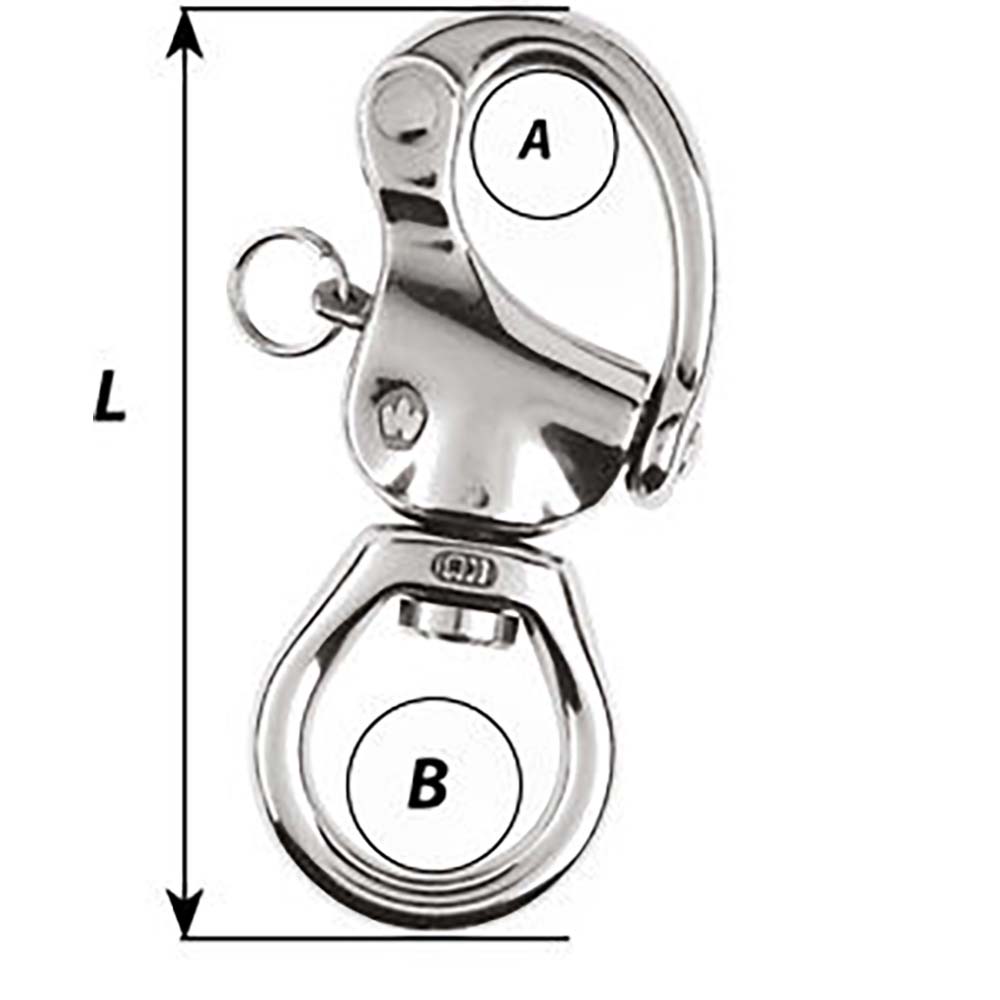

Dimensions (see 2nd image):

• A (inch) 53/64"
• B (inch) 1-1/32"

The Wichard Marine HR Snap Shackle with a large bail offers a reliable and versatile connection solution ideal for marine and sailing applications. Crafted from high-grade 17.4 PH stainless steel, this snap shackle ensures durability and corrosion resistance in demanding environments. Its length of approximately 4-9/64 inches and large eye facilitate attaching multiple ropes or lines, making it suitable for various rigging setups. The swivel eye design allows for free rotation, which helps maintain optimal sail orientation and prevents line twisting during operation. The captive plunger pin enhances safety by preventing accidental detachment, while the easy-to-open mechanism enables quick releases, even under load. An optional lanyard attachment point ensures secure handling and accessibility when needed. Designed for applications requiring robust load-bearing capacity, the HR Snap Shackle supports working loads up to 2,820 pounds and features a breaking load of 7,930 pounds, providing confidence in its strength and reliability. Its lightweight construction, at just over 0.35 pounds, ensures minimal impact on overall rig weight without compromising performance. Suitable for snap shackle applications and scenarios where free rotation improves sail handling, this product is a dependable choice for demanding marine environments. Whether used on sailboats, yachts, or other marine vessels, the Wichard HR Snap Shackle delivers high performance, safety, and ease of use in a compact, corrosion-resistant package.

Features:

• Forged from Grade 17.4 PH stainless steel for strength and corrosion resistance

• Large eye allows attaching multiple ropes or lines

• Swivel eye design enables free rotation for better sail orientation

• Captive plunger pin prevents accidental detachment

• Supports working loads up to 2,820 pounds and breaks at 7,930 pounds

• Easy to open with pull mechanism, with optional lanyard attachment
