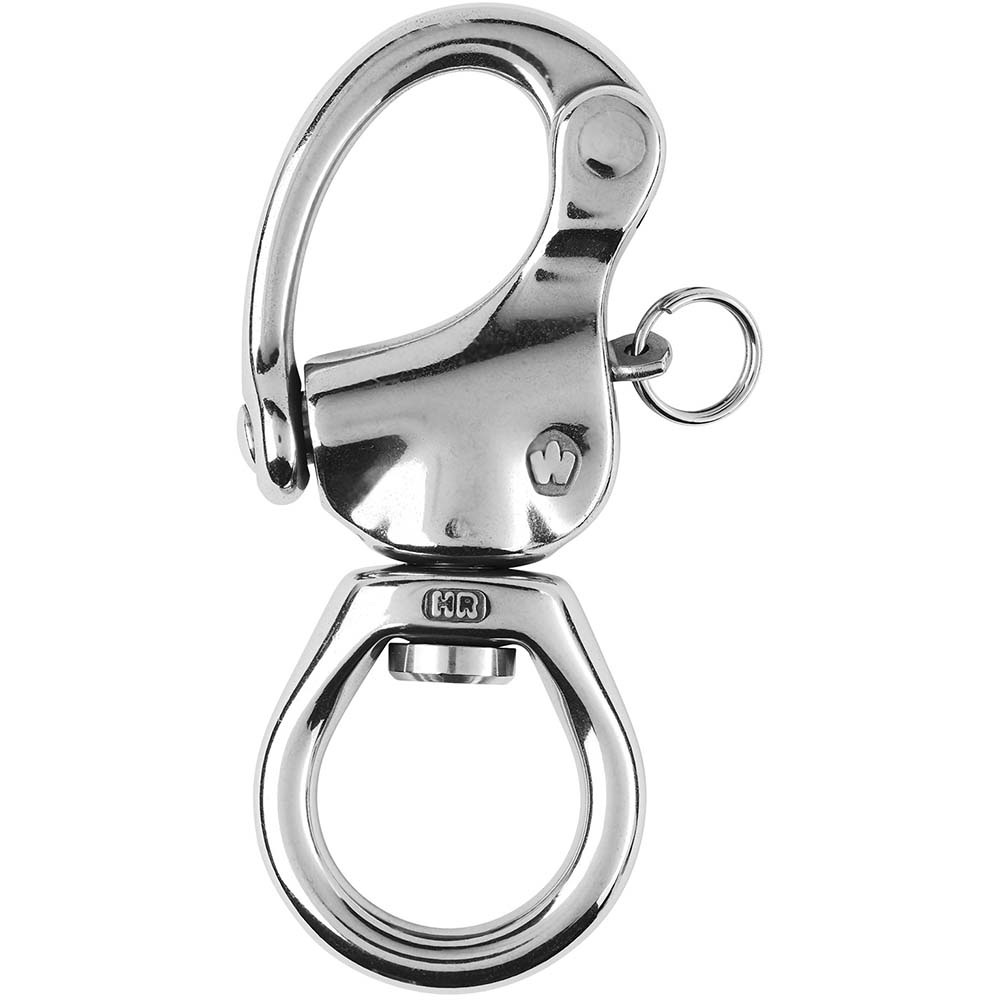

Wichard Marine HR Snap Shackle - Large Bail, 5-3/8 inch length, Grade 17.4 PH Stainless Steel

HR Snap Shackle - Large Bail - Length 140mm

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
• The large eye allows attaching several ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Length (inch) 5-33/64"
• Working load (lb) 6170
• Breaking load (lb) 16530
• Weight (lb) 0.877

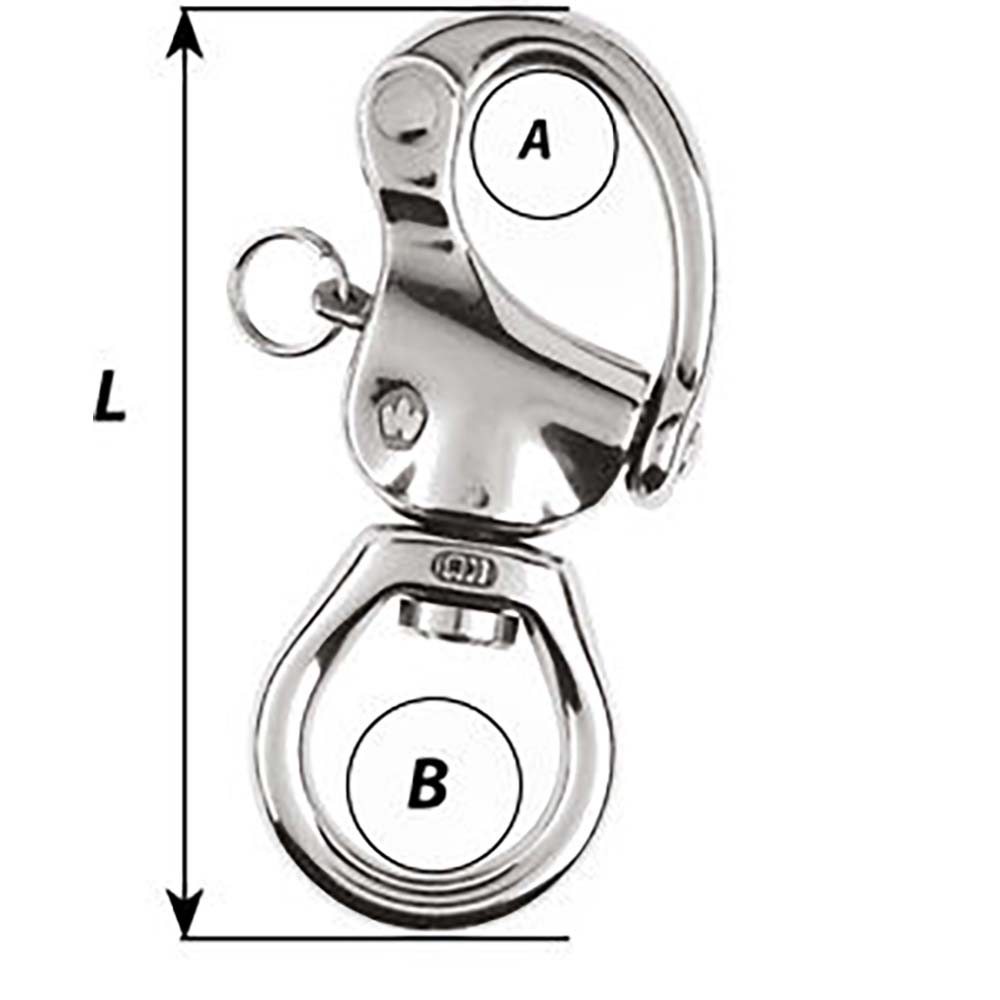

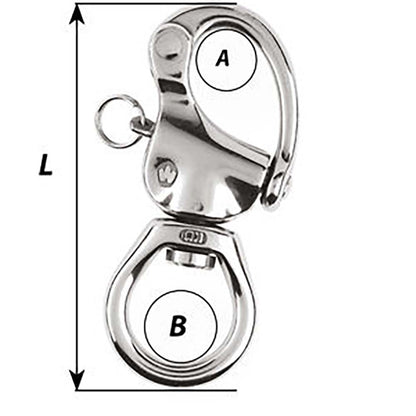

Dimensions (see 2nd image):

• A (inch) 1-1/32"
• B (inch) 1-3/8"

The Wichard Marine HR Snap Shackle with large bail offers a reliable and versatile fastening solution for marine applications. Crafted from durable Grade 17.4 PH stainless steel, this snap shackle features a large eye that accommodates multiple ropes, making it ideal for complex rigging or securing heavy loads. Its free-rotating swivel eye ensures smooth operation and maintains proper sail orientation by allowing the shackle to rotate freely without twisting the lines. The captive plunger pin enhances safety by preventing accidental detachment and simplifies operation with an easy pull mechanism, which can be secured with an optional lanyard for added convenience.
Designed for demanding marine environments, this snap shackle boasts excellent working and breaking loads, making it suitable for critical applications where strength and reliability are paramount. Its robust construction and high-grade materials ensure long-lasting performance even under repeated use and exposure to harsh conditions. The compact yet sturdy design makes it easy to handle and attach, providing a seamless experience during sailing or rigging adjustments.
The Wichard Marine HR Snap Shackle is perfect for snap shackle applications and situations requiring free rotation for optimal sail positioning. Its dimensions, including a length of approximately 5-3/8 inches, provide ample clearance for various rigging configurations. Whether used for attaching sail lines, halyards, or other critical components, this shackle delivers superior performance and safety, making it a trusted choice for sailors and marine professionals alike.

Features:

• HR Forged snap shackle made from Grade 17.4 PH stainless steel for durability and corrosion resistance

• Large eye design allows attaching multiple ropes for versatile use

• Swivel eye provides free rotation to improve sail orientation and reduce line twisting

• Captive plunger pin prevents accidental detachment, enhancing safety

• High working load of 6,170 pounds and breaking load of 16,530 pounds for demanding applications

• Easy to operate by pulling the plunger pin, with option to attach a lanyard for convenience
