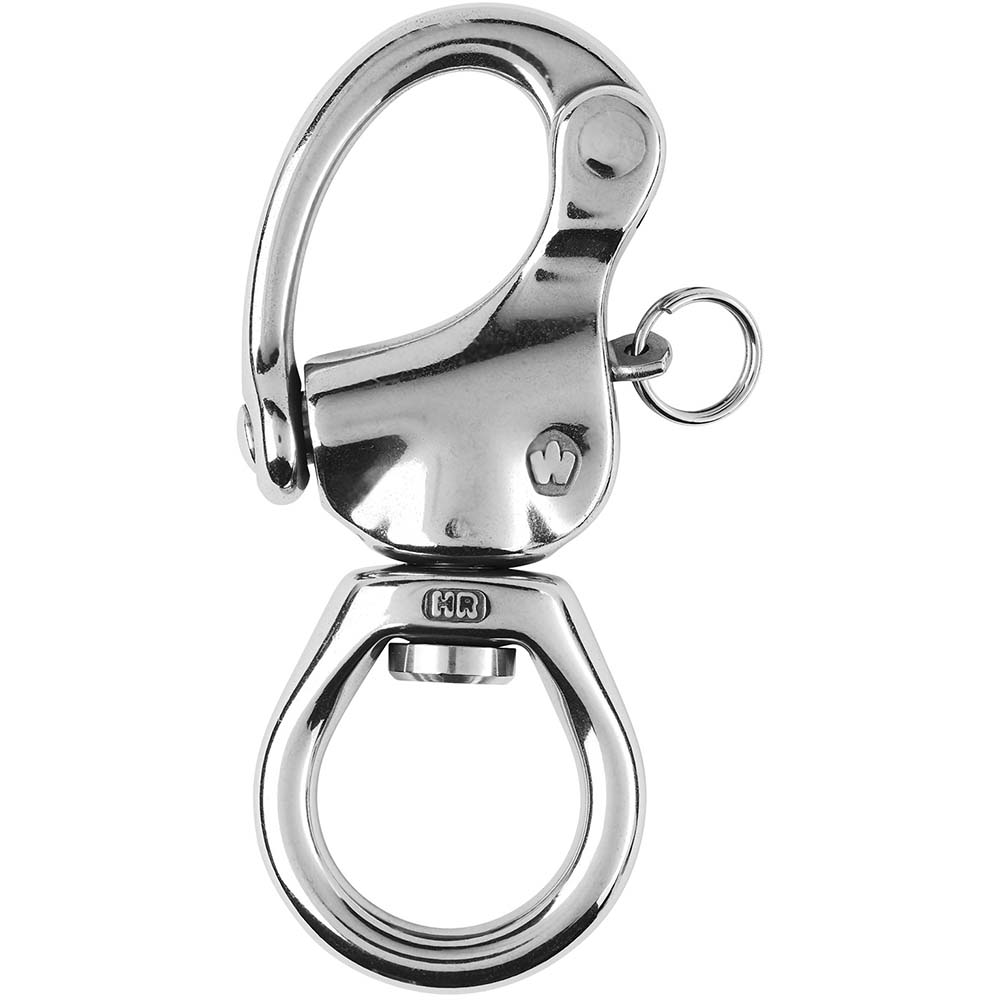

Wichard Marine HR Snap Shackle Large Bail - 80mm Length for Marine Rigging

HR Snap Shackle - Large Bail - Length 80mm

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
• The large eye allows attaching several ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Length (inch) 3-5/32"
• Working load (lb) 2110
• Breaking load (lb) 4400
• Weight (lb) 0.154

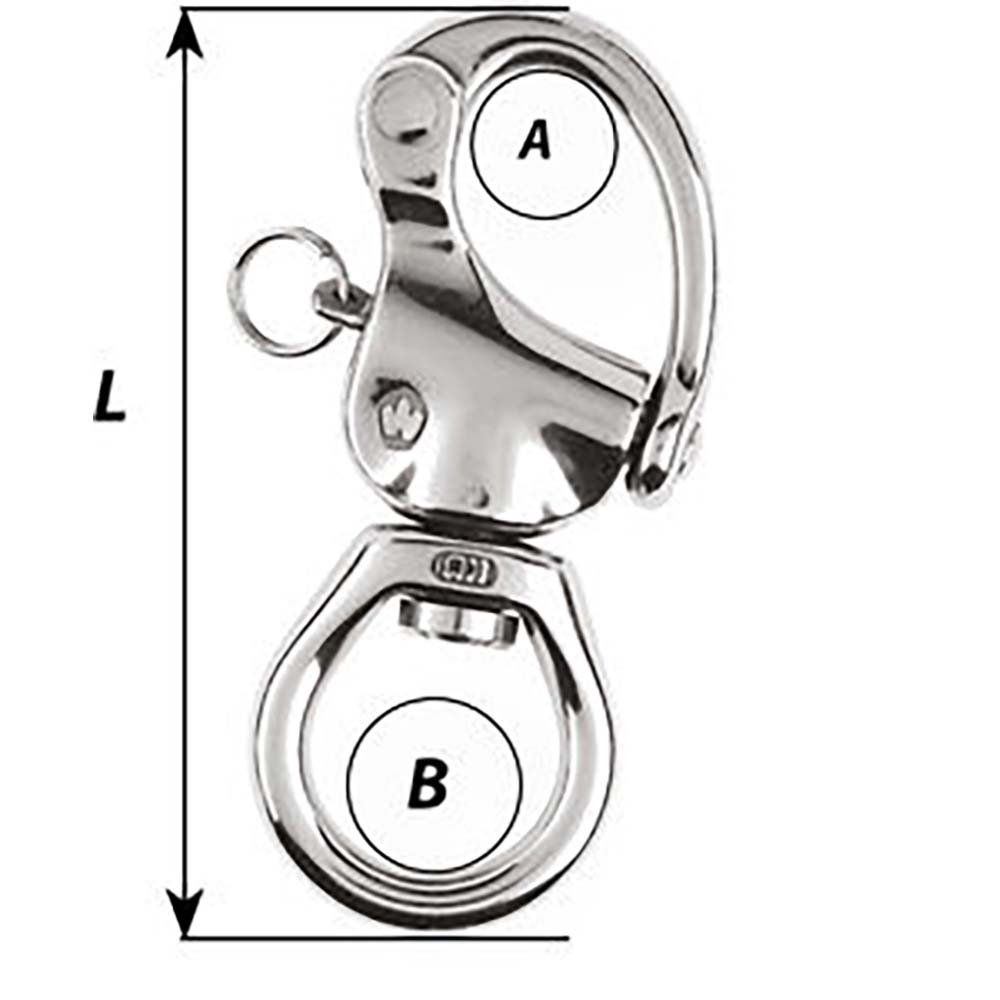

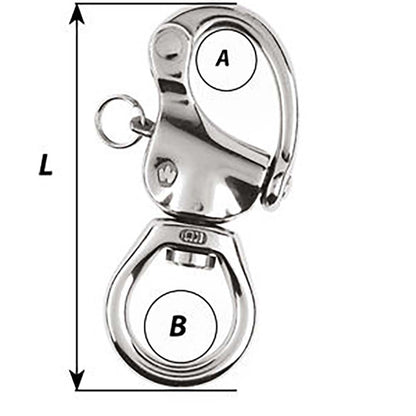

Dimensions (see 2nd image):

• A (inch) 5/8"
• B (inch) 3/4"

The Wichard Marine HR Snap Shackle Part Number 2373W is a high-quality stainless steel shackle designed for demanding marine applications. Crafted from Grade 17.4 PH stainless steel, this snap shackle offers exceptional strength, durability, and corrosion resistance essential for sailing and rigging. Its large eye accommodates multiple ropes or lines, making it versatile for various attachment points. The swivel eye enables free rotation, which helps maintain optimal sail orientation and reduces line tangling during operation. The captive plunger pin ensures secure fastening and prevents accidental loss, while the easy-to-open mechanism allows quick release when needed. This feature is especially useful in situations requiring fast adjustments or emergency releases. With a working load of 2,110 pounds and a breaking load of 4,400 pounds, the Wichard HR Snap Shackle provides reliable performance under heavy loads. Its compact size and lightweight construction, weighing just approximately 0.15 pounds, make it suitable for applications where space and weight are critical factors. The shackle’s dimensions include a length of 3-5/32 inches, with specific dimensions for the eye and other parts detailed in the product images. Ideal for snap shackle applications, particularly those that benefit from free rotation such as sailboat rigging, this shackle enhances safety and efficiency on the water. Its robust construction, combined with ease of use and secure locking features, makes the Wichard Marine HR Snap Shackle a trusted component for professional sailors and marine enthusiasts alike.

Features:

• HR Forged snap shackle made from Grade 17.4 PH stainless steel for superior strength and corrosion resistance

• Large eye allows attachment of multiple ropes or lines for versatile rigging

• Swivel eye design enables free rotation to improve sail orientation and reduce line tangling

• Captive plunger pin prevents detachment, ensuring secure fastening

• High working load capacity of 2,110 pounds and breaking load of 4,400 pounds for demanding applications

• Easy to open by pulling the plunger pin, with option to attach a lanyard for quick release
