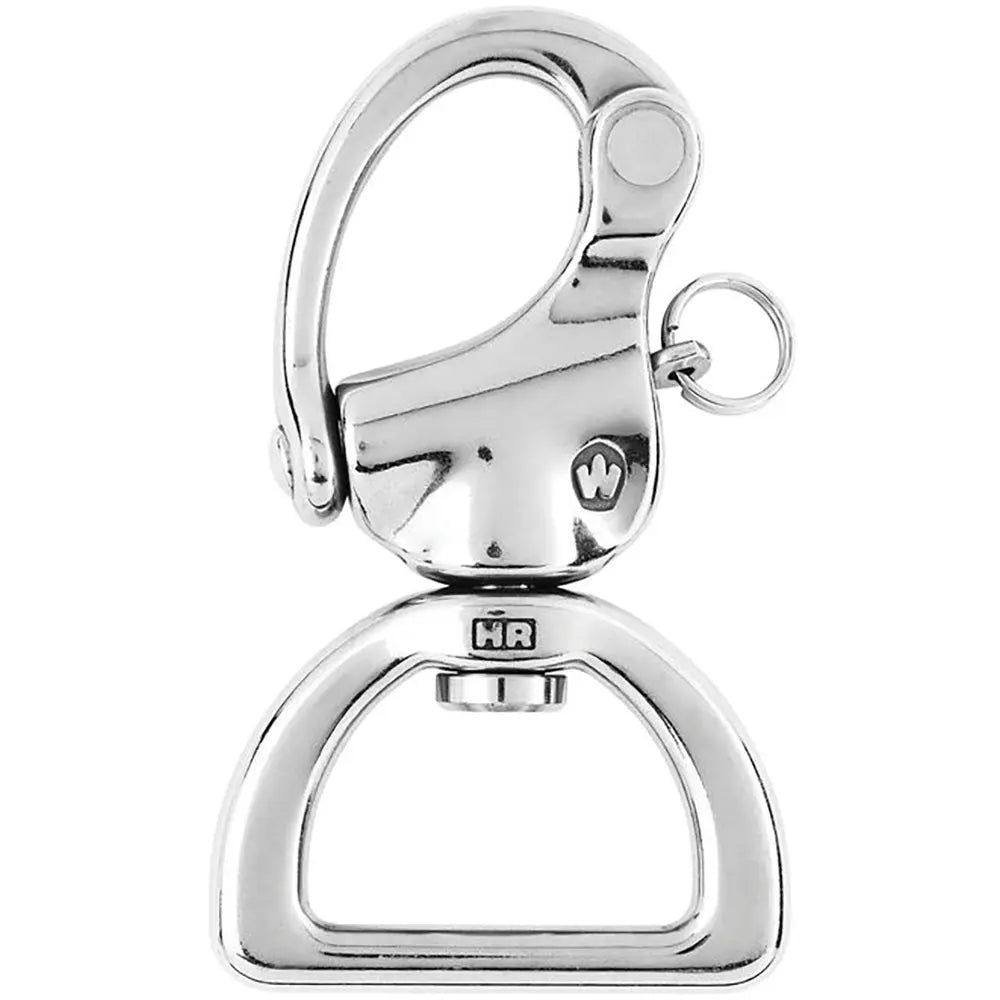

Wichard Marine HR Snap Shackle Webbing Swivel - 100mm (3-15/16") with Grade 17.4PH Stainless Steel

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Features:

• HR Forged snap shackle (Grade 17.4PH stainless steel) with webbing swivel.
• Its flat design allows attaching a webbing
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 8480 / (kg) 3850

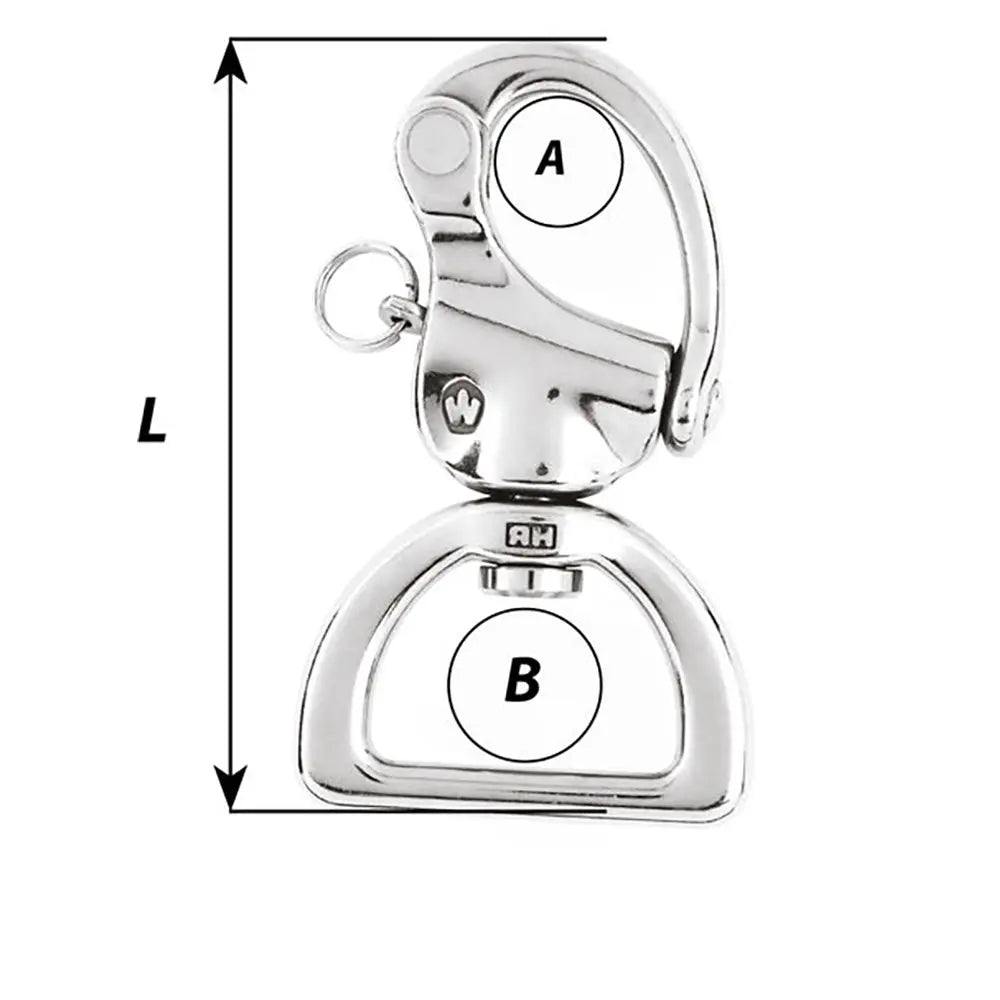

Dimensions:

• A: (inch) 53/64" / (mm) 21
• B: (inch) 1 37/64" / (mm) 40
• Length: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Snap Shackle Webbing Swivel is a high-strength hardware component designed for demanding nautical and industrial applications. Crafted from Grade 17.4PH stainless steel, this snap shackle offers excellent corrosion resistance and durability. Its flat design facilitates secure attachment to webbing, making it ideal for rigging, sailing, and other marine uses. The swivel eye allows for free rotation, which helps maintain optimal sail orientation and reduces stress on connected components. The captive plunger pin ensures safe operation by preventing accidental detachment, and the easy-to-open mechanism supports quick release under load, with the option to attach a lanyard for added security. With a working load of 2,820 pounds and a breaking load of 8,480 pounds, this hardware provides reliable performance in critical applications. The compact dimensions make it suitable for various rigging configurations, offering a balance of strength and ease of use. Whether for nautical tasks or industrial setups requiring a high safety factor, the Wichard HR Snap Shackle Webbing Swivel is engineered to meet professional standards and deliver consistent reliability over time.

Features:

• HR Forged snap shackle in Grade 17.4PH stainless steel for high corrosion resistance and strength

• Flat design allows secure attachment to webbing

• Swivel eye enables free rotation to improve sail orientation and reduce stress

• Captive plunger pin prevents accidental detachment and is easy to operate

• High working and breaking loads ensure safety and durability

• Easy-to-open mechanism with optional lanyard attachment
