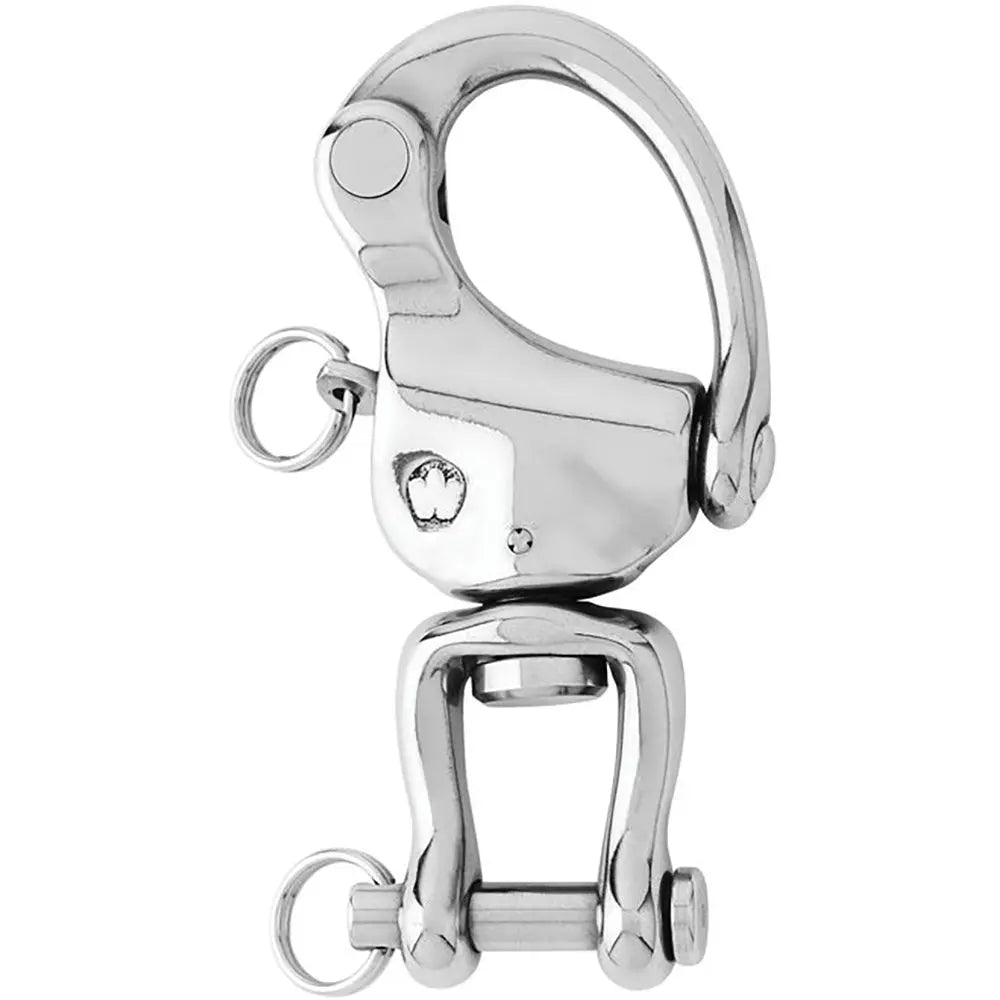

Wichard Marine HR Snap Shackle with Clevis Pin Swivel - 4-23/32 Inch Length

HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

Features:

• HR Forged snap shackle (Grade 17.4PH stainless steel)with clevis pin swivel
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.919 / (g) 417

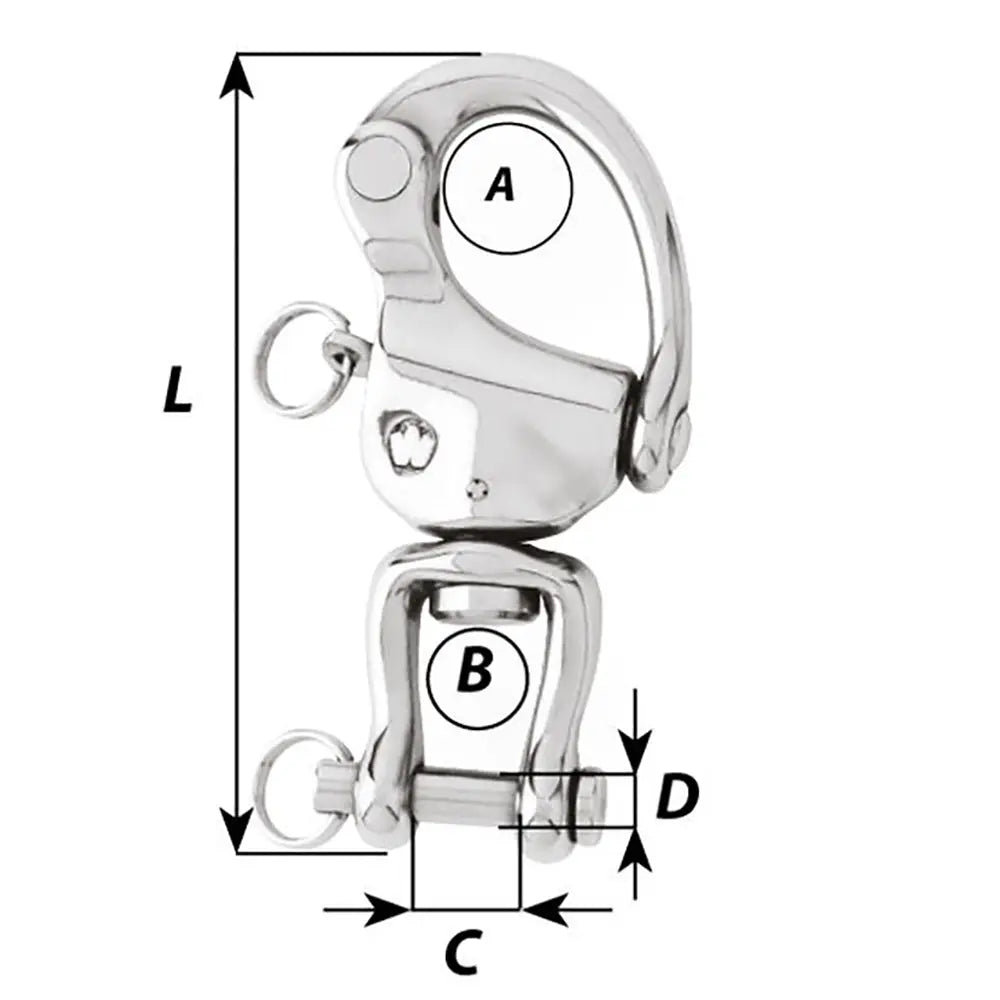

Dimensions:

• A: (inch) 1 1/32" / (mm) 26
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 45/64" / (mm) 18
• D diameter: (inch) 7/16" / (mm) 11
• Length: (inch) 4 23/32" / (mm) 120

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Snap Shackle with Clevis Pin Swivel is designed for demanding nautical and industrial applications, offering exceptional strength and reliability. Crafted from Grade 17.4PH stainless steel, this snap shackle ensures durability and resistance to corrosion, making it ideal for marine environments. The swivel eye allows for free rotation, reducing stress and wear during use, while the captive plunger pin secures the connection and prevents accidental detachment. The easy-to-open mechanism, which allows pull activation and the attachment of a lanyard, enhances operational safety and convenience.
With a working load limit of 2,400 kg (5,290 lbs) and a breaking load of 7,000 kg (15,430 lbs), this shackle is engineered to handle heavy loads with confidence. Its compact design features a length of approximately 4.65 inches (120 mm) and a weight of just over 0.9 pounds (417 grams), making it suitable for a variety of demanding applications without adding excessive bulk or weight. The robust construction and high resistance grade ensure long-term performance in harsh conditions, whether used on sailboats, industrial rigs, or other heavy-duty equipment.
The Wichard HR Snap Shackle is a versatile component that combines safety, strength, and ease of use. It is sold individually and adheres to safety standards, with a safety factor of five times the working load. Whether you need a reliable shackle for nautical tasks or industrial rigging, this product provides a trustworthy connection solution built to withstand rigorous use in demanding environments.

Features:

• Forged from Grade 17.4PH stainless steel for high strength and corrosion resistance

• Swivel eye allows free rotation to reduce stress during operation

• Captive plunger pin prevents accidental detachment

• High working load limit of 2,400 kg (5,290 lbs) and breaking load of 7,000 kg (15,430 lbs)

• Easy to open with pull mechanism; compatible with lanyards for added safety
