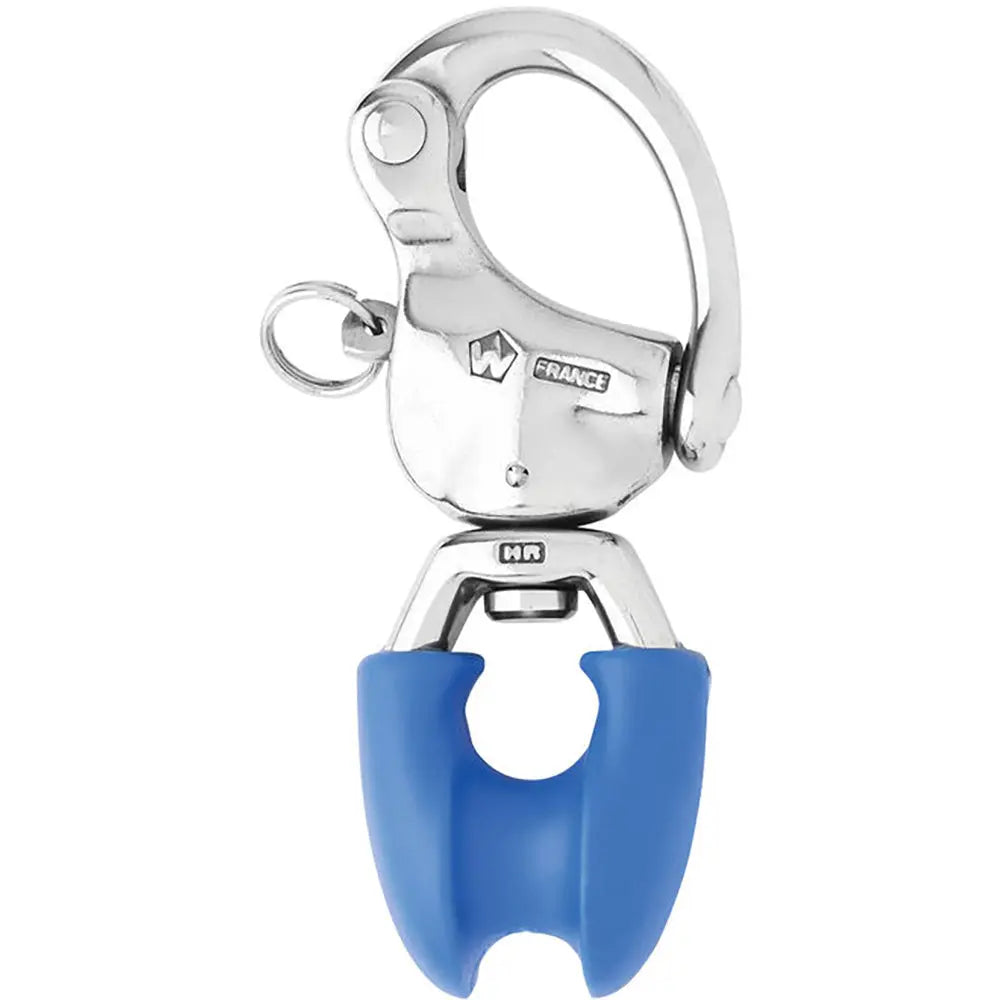

Wichard Marine HR Snap Shackle with Thimble Eye - 110mm (4-21/64") Length for Nautical and Industrial Use

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
• Allows to splice the halyard directly onto the snap shackle (without using a thimble)
• Avoids the wear of the ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Allows to splice the halyard
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 5290 / (kg) 2400

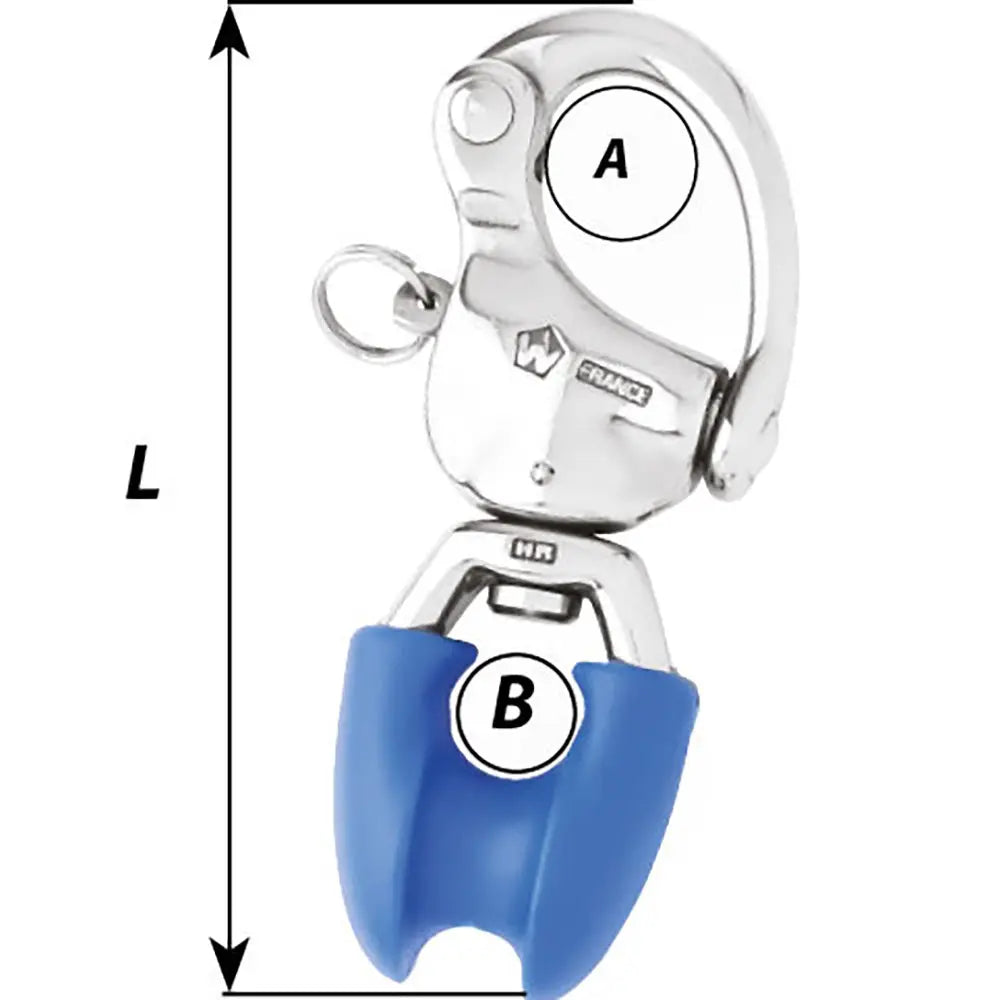

Dimensions:

• A: (inch) 53/64" / (mm) 110
• B: (inch) 35/64" / (mm) 21
• Length: (inch) 4 21/64" / (mm) 14

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Snap Shackle with Thimble Eye is a high-performance hardware component designed for demanding nautical and industrial applications. Crafted from Grade 17.4 PH stainless steel, this snap shackle offers exceptional strength and corrosion resistance, making it ideal for marine environments. Its 110mm (4-21/64 inches) length provides versatility in various rigging and lifting tasks. The shackle features a swivel eye that allows for free rotation, which enhances sail orientation and prevents rope wear. The plunger pin is securely captive within the hook, ensuring safety and preventing accidental detachment during operation. This design allows users to easily open the shackle by pulling the plunger pin, with the option to attach a lanyard for added convenience. The HR Forged snap shackle with thimble eye is engineered to handle working loads of up to 2,820 pounds and breaking loads of 5,290 pounds, offering a robust solution for load management and halyard splicing. Its capability to splice directly onto the halyard without requiring a thimble reduces wear on ropes and extends their service life. Suitable for snap shackle applications, halyard splicing, and situations that benefit from a free-rotating shackle, this component ensures reliable performance and safety in critical operations. Designed with a high resistance grade, the Wichard HR Snap Shackle provides a durable and efficient connection point, whether used on boats or industrial equipment. Sold individually, this hardware is essential for professionals seeking dependable and safe rigging solutions.

Features:

• HR Forged snap shackle made from Grade 17.4 PH stainless steel for durability and corrosion resistance

• Thimble eye design allows direct halyard splicing without using a thimble, reducing rope wear

• Swivel eye provides free rotation to improve sail orientation and prevent rope twisting

• Captive plunger pin ensures safety and prevents accidental detachment

• Easy to operate by pulling the plunger pin, with optional lanyard attachment for convenience

• High working load capacity of 2,820 pounds and breaking load of 5,290 pounds for demanding applications
