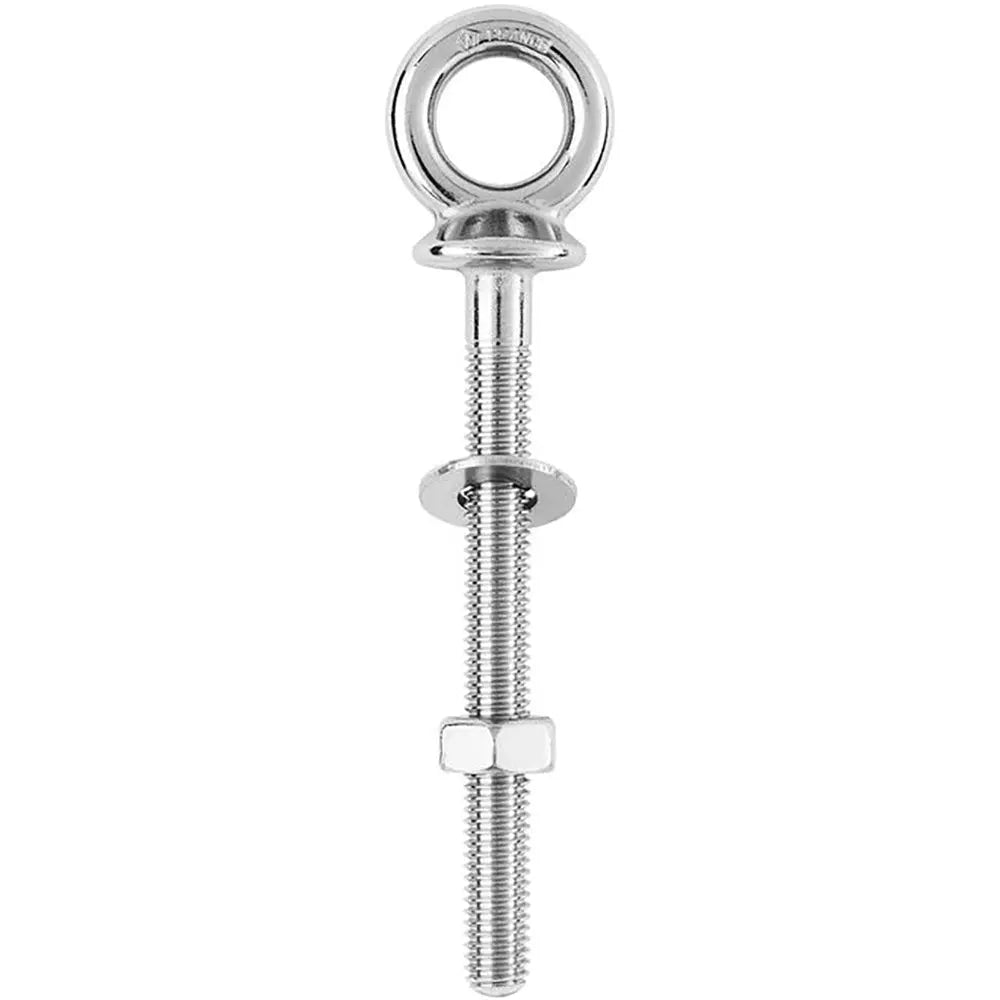

Wichard Marine M10 x 150mm Stainless Steel Eye Bolt - Heavy Duty Fastening and Towing Hardware

Eye Bolt - M10 x 150mm - Length 100mm

Features:

• A complete range of single piece forged products for fastenings applications
• Outstanding working and breaking loads
• Available in different sizes
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.216 / (g) 98

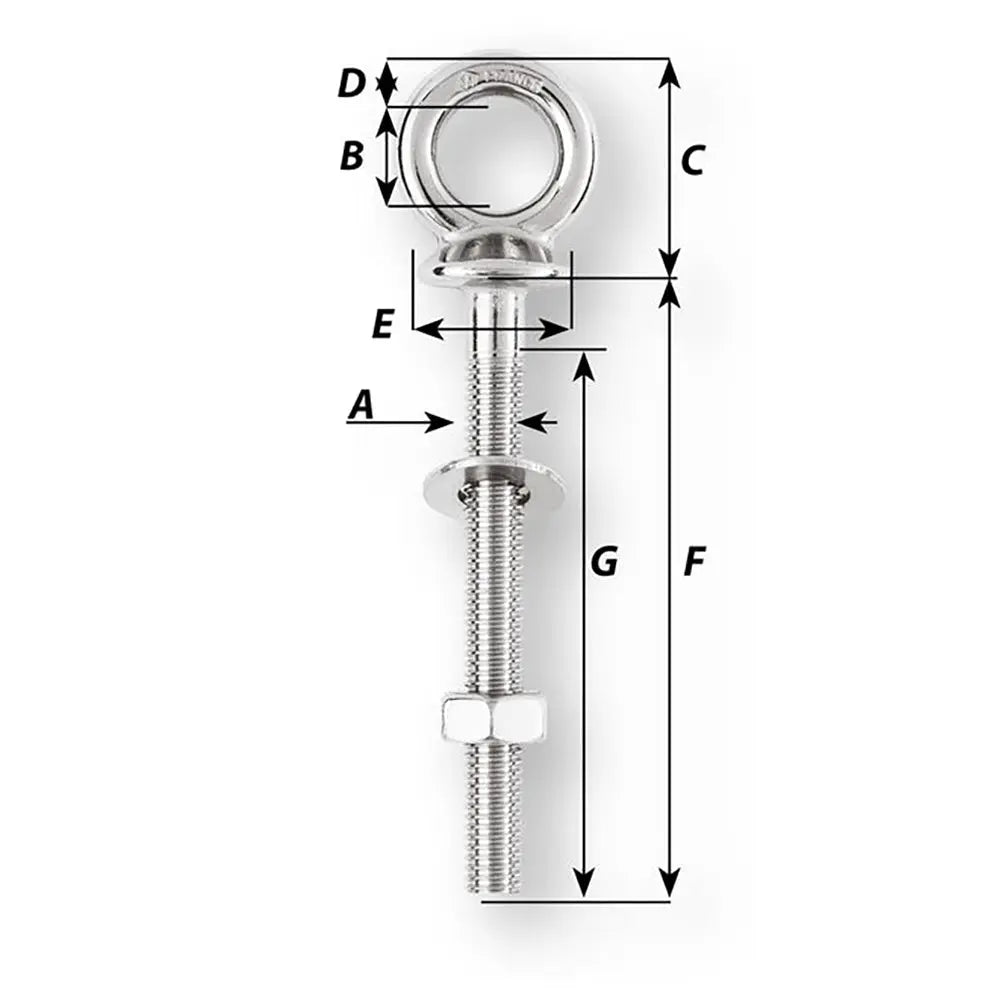

Dimensions:

• A: (mm) M10 x 150
• B: (inch) 5/8" / (mm) 16
• C: (inch) 1 27/64" / (mm) 36
• D: (inch) 9/32" / (mm) 7
• E: (inch) 63/64" / (mm) 25
• F: (inch) 3 15/16" / (mm) 100
• G: (inch) 3 15/32" / (mm) 88

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine M10 x 150mm eye bolt is a robust and reliable fastening component crafted from high-grade 316L stainless steel, ensuring exceptional durability and corrosion resistance. Designed for demanding applications, this eye bolt features a working load of up to 3,520 pounds and a breaking load of 5,950 pounds, making it suitable for both industrial and nautical use. Its forged single-piece construction guarantees outstanding strength and safety in critical load-bearing situations. The eye bolt's dimensions include a length of 150mm with a 100mm eye opening, providing ample space for secure attachments. It is engineered to handle maximum tightening torque of 36 Nm, ensuring proper installation without compromising integrity. This versatile hardware is ideal for a variety of applications including towing, waterskiing lines attachment, and other fastening needs where strength and reliability are paramount. Whether used on boats, trailers, or industrial equipment, this eye bolt offers a high safety factor, with a design that supports both working load limits and breaking loads effectively. The product's compact weight of approximately 98 grams makes it easy to handle and install, while its stainless steel construction ensures longevity even in harsh environments. Suitable for applications requiring rigorous safety standards, it is sold as an individual piece for flexible use in multiple projects. Trust the Wichard Marine M10 x 150mm eye bolt for secure, heavy-duty fastening solutions that deliver performance and peace of mind in demanding settings.

Features:

• Forged single-piece construction for maximum strength and safety

• Made from durable 316L stainless steel for corrosion resistance

• High working load capacity of 3,520 pounds (1,600 kg)

• Breaks at 5,950 pounds (2,700 kg) for reliable safety margins

• Designed for demanding applications including towing and waterskiing

• Maximum tightening torque of 36 Nm for secure installation

• Compact weight of approximately 3.4 ounces (98 grams) for easy handling

• Versatile use in industrial, nautical, and heavy-duty fastening applications
