MXLEvo 12 - Soft Block - 12mm Rope Size - 15/32"
Features:
- MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes
- Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system
- The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market
- Heavy load applications: The MXLEvo is designed to use heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc.
- Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 12 is: twice as robust, half the weight, a lighter rope with a stronger breaking load
- A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is extremely reliable and requires no maintenance
- Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily adaptable to your deck and to whatever anchoring point or chain plate alignment you choose
Applications:
- Mast foot block
- Halyard block
- Barber hauler
- Purchase
- Tackle
- Sheet return
- Mainsail outhaul
- Snatch block (in that case it is recommended to use an 8 mm rope size)
Specifications:
- Materials: Duplex stainless steel grade S78 Dyneema
- Rope size: (inch) 15/32" / (mm) 12
Dimensions:
- Length: (inch) 1 37/64" / (mm) 40
- Width: (inch) 2 1/8" / (mm) 54
- Thickness: (inch) 1 3/8" / (mm) 35
- Loop diameter: (inch) 13/64" / (mm) 5
- Loop length: (inch) 8 21/32" / (mm) 220
- Working load: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 8370 / (kg) 3800
- Weight: (lb) 0.198 / (g) 90
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual

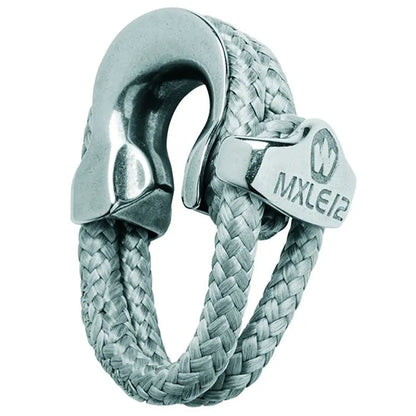

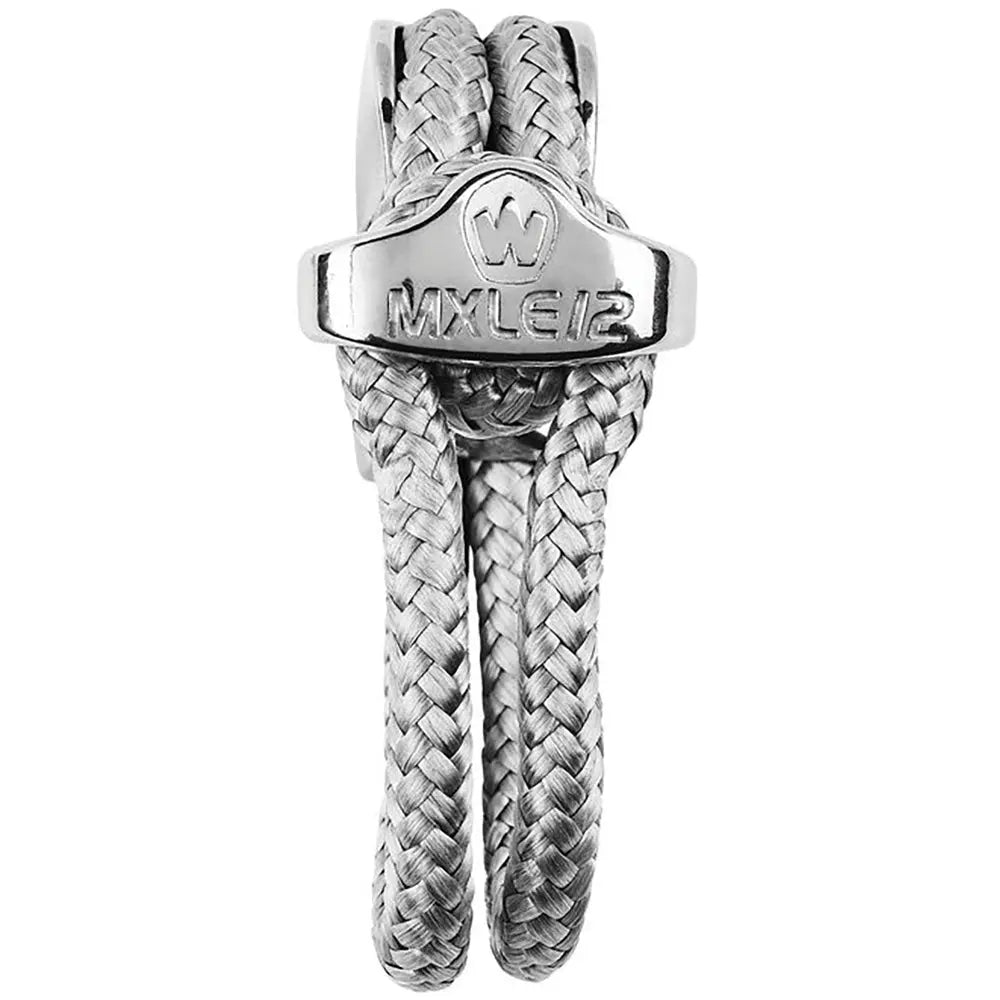

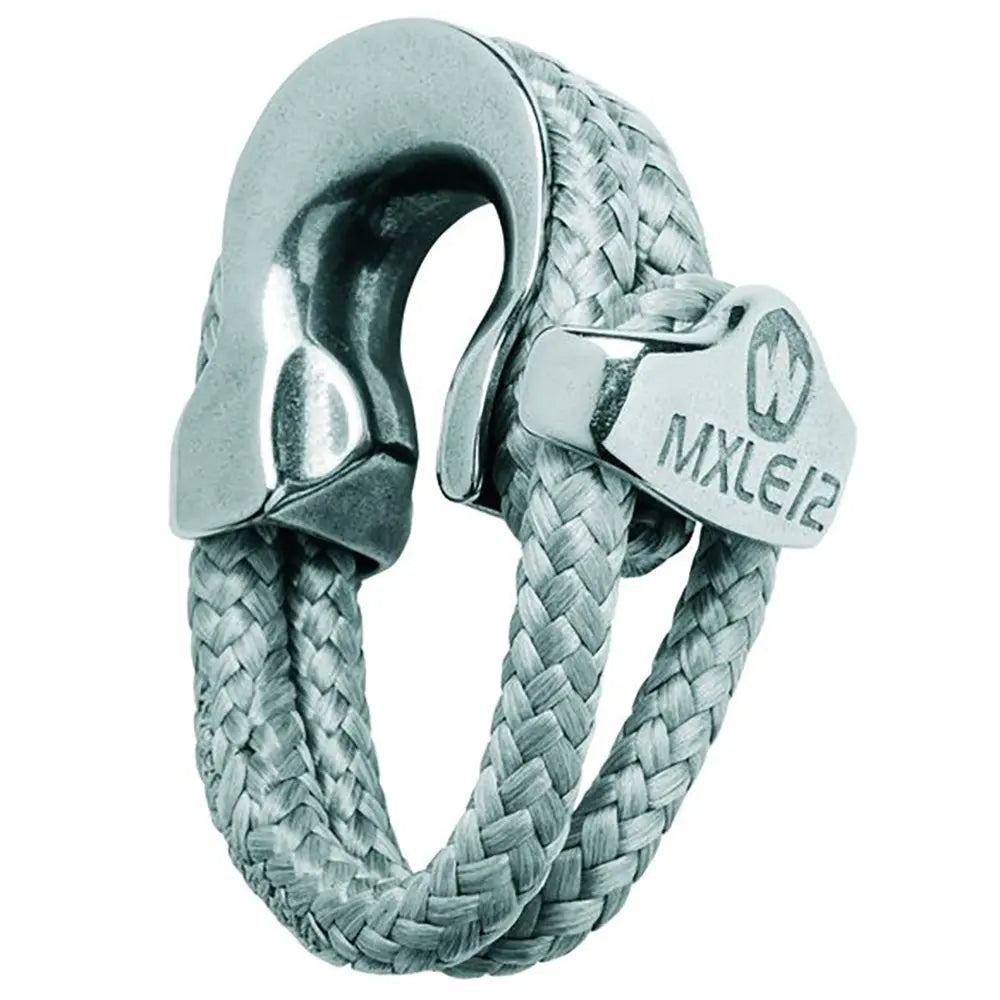

The Wichard Marine MXLEvo 12 is a versatile and reliable soft block designed to meet the demanding needs of both amateur and professional yachtsmen. Crafted from durable duplex stainless steel grade S78 Dyneema, this soft block is optimized for heavy-load applications such as mast foot blocks, halyard tackles, barber haulers, and sheet returns. Its robust construction ensures high strength and resistance while maintaining a lightweight profile, making it an ideal choice for critical sailing systems. The MXLEvo 12 features a simple, complete design including a Dyneema SK78 loop that facilitates quick installation on various anchoring points like chain plates and head ropes without requiring specialized technical knowledge. The rope housing securely retains the line when unloaded, preventing accidental dislodgement and simplifying handling during maneuvers.
Designed for heavy loads, the MXLEvo 12 can handle working loads up to 3,520 pounds with a breaking load of approximately 8,370 pounds. Its compact dimensions and lightweight construction—approximately 0.2 pounds—make it highly portable without sacrificing strength. The system's innovative design eliminates moving parts such as sheaves, resulting in a maintenance-free operation that enhances reliability and longevity. The loop can be positioned in two different ways, providing flexibility to adapt to various deck configurations and anchoring points, further simplifying installation and integration into your boat's rigging system.
Ideal for a broad range of sailing applications, the MXLEvo 12 is not only cost-effective but also offers exceptional durability and ease of use. Whether used as a mast foot block, halyard block, or in tackle systems, its high resistance to wear and corrosion ensures dependable performance in harsh marine environments. The product's features include a 12mm rope size compatibility, a working load limit suitable for nautical use, and a design that supports heavy-duty sailing operations with minimal maintenance. Trust the Wichard Marine MXLEvo 12 for your next project to combine strength, simplicity, and value in one comprehensive soft block solution.
Features:
- Heavy-duty design: Suitable for mast foot, halyard, and tackle applications with high load capacity
- Easy installation: Comes complete with a Dyneema SK78 loop, adaptable to various deck points
- Corrosion resistant: Made from duplex stainless steel grade S78 and Dyneema, ideal for marine environments
- Lightweight and robust: Provides exceptional strength-to-weight ratio, twice as robust as standard competitors
- No maintenance required: Lacks moving parts such as sheaves, ensuring long-term reliability
- Flexible configuration: Loop can be positioned in two ways to suit different deck plans
- Cost-effective: One of the most affordable soft block options on the market for heavy-duty use
- Versatile applications: Suitable for mast foot, halyard, barber hauler, sheet return, and more
