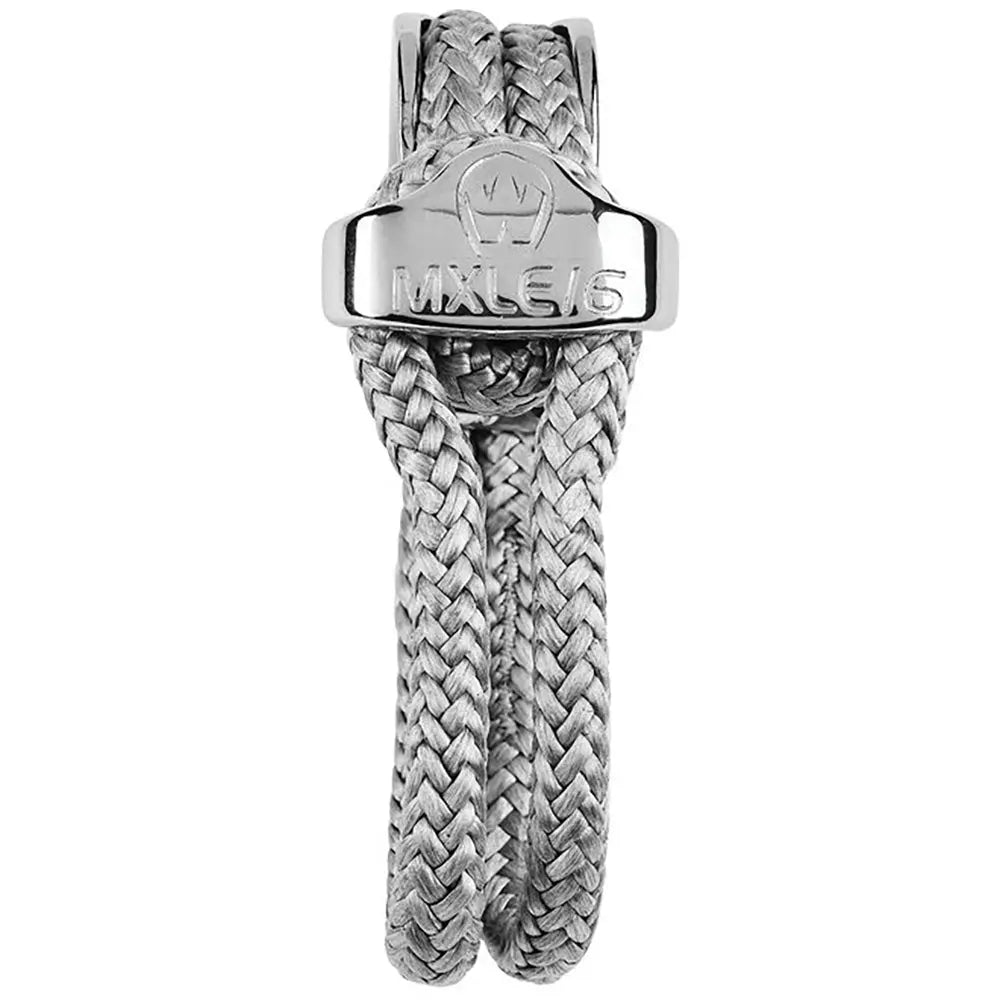

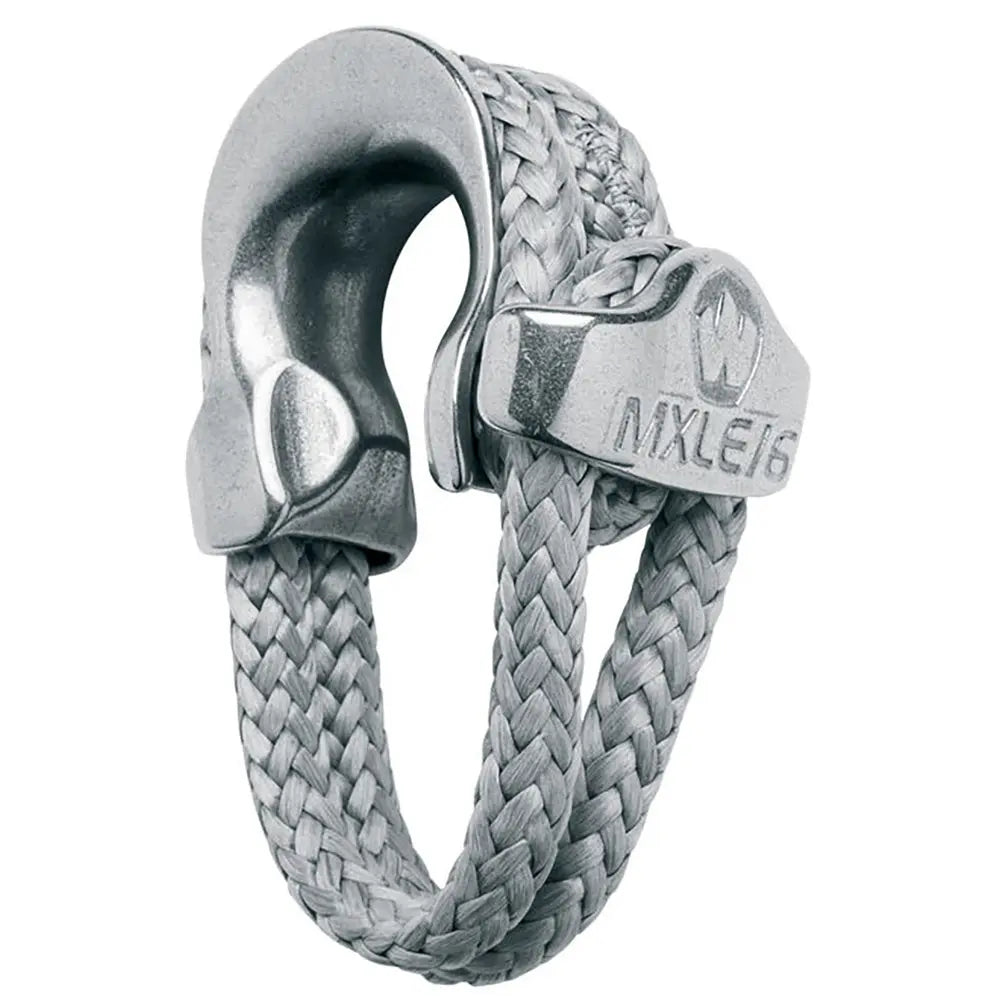

Wichard Marine MXLEvo 16 Soft Block for 16mm Rope – Heavy Load Marine Hardware

MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"

Features:

• MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes
• Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any type of anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system
• The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market
• Heavy load applications: The MXLEvo is designed to be used with heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc.
• Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 16 is: twice as robust, half the weight, a 35% lighter rope with a stronger breaking load
• A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is highly reliable and requires no maintenance
• Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily flexible to your deck and to whatever anchoring point or chain plate alignment you choose

Applications:

• Mast foot block
• Halyard block
• Barber hauler
• Purchase
• Tackle
• Sheet return
• Mainsail outhaul
• Snatch block (in that case it is recommended to use an 8 mm rope size)

Specifications:

• Materials: Duplex stainless steel grade S78 Dyneema
• Rope size: (inch) 11/16" / (mm) 16

Dimensions:

• Length: (inch) 1 27/32" / (mm) 47
• Width: (inch) 2 23/64" / (mm) 60
• Thickness: (inch) 1 39/64" / (mm) 41
• Loop diameter: (inch) 15/64" / (mm) 6
• Loop length: (inch) 10 5/8" / (mm) 270
• Working load: (lb) 5510 / (kg) 2500
• Breaking load: (lb) 11020 / (kg) 5000
• Weight: (lb) 0.309 / (g) 140

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine MXLEvo 16 soft block is a versatile and reliable solution designed for all types of yachtsmen, from amateurs to seasoned professionals. Crafted for heavy-load applications, this soft block is suitable for tasks such as halyard tensioning, mast foot blocks, barber haulers, and sheet returns. Its robust construction ensures durability and high performance in demanding maritime environments, making it an excellent choice for various deck rigging needs. The MXLEvo 16's innovative design includes a Dyneema SK78 loop that simplifies installation on different anchoring points like chain plates or head ropes, providing flexibility and ease of use without requiring specialized technical knowledge. Its rope housing keeps the ropes secure when under no load, enhancing safety and operational efficiency.

Engineered to offer exceptional value, the MXLEvo 16 stands out as one of the most cost-effective soft blocks on the market. Despite its affordability, it does not compromise on strength or lightweight design. It is significantly more robust than standard competitors, with twice the durability, half the weight, and a 35% lighter rope, all while maintaining a superior breaking load capacity. Its lightweight, compact form does not sacrifice resilience; it is built from duplex stainless steel grade S78 Dyneema, ensuring high resistance to corrosion and wear. The absence of moving parts, such as sheaves, means the MXLEvo 16 requires no maintenance, offering long-term reliability in marine applications.

Flexibility in installation is a key feature, with the loop capable of being positioned in two different ways to adapt to your deck plan and anchoring preferences. Its working load limit for nautical use is 2,500 kg (5,510 lbs), with a breaking load of 5,000 kg (11,020 lbs), ensuring safe operation under heavy loads. The soft block's dimensions are compact, and it weighs only about 0.31 lbs, making it easy to handle and install. With its high strength-to-weight ratio and corrosion-resistant materials, the MXLEvo 16 is an ideal choice for various sailing and industrial applications, including mast foot blocks, halyard tackles, and purchase systems. Its easy-to-use design and robust construction make it a dependable component for demanding marine rigging tasks.

Suitable for use with 16mm (11/16 inch) ropes, the MXLEvo 16 is recommended for tasks requiring high load capacity, including snatch block applications with an 8mm rope size. This product is sold individually and provides a reliable, maintenance-free solution for sailors seeking durability, flexibility, and value in their rigging hardware.

Features:

• Designed for heavy-load applications such as halyard, mast foot, and sheet return systems

• Complete with Dyneema SK78 loop for easy installation on various anchoring points

• Affordable yet durable, offering excellent value for money

• Constructed from duplex stainless steel S78 Dyneema for corrosion resistance and strength

• Lightweight and compact with high resistance to wear and corrosion

• No moving parts, requiring no maintenance for long-term reliability

• Flexible loop positioning to adapt to different deck plans and anchoring needs

• High working load limit and breaking load for demanding marine applications
