SKU:97629

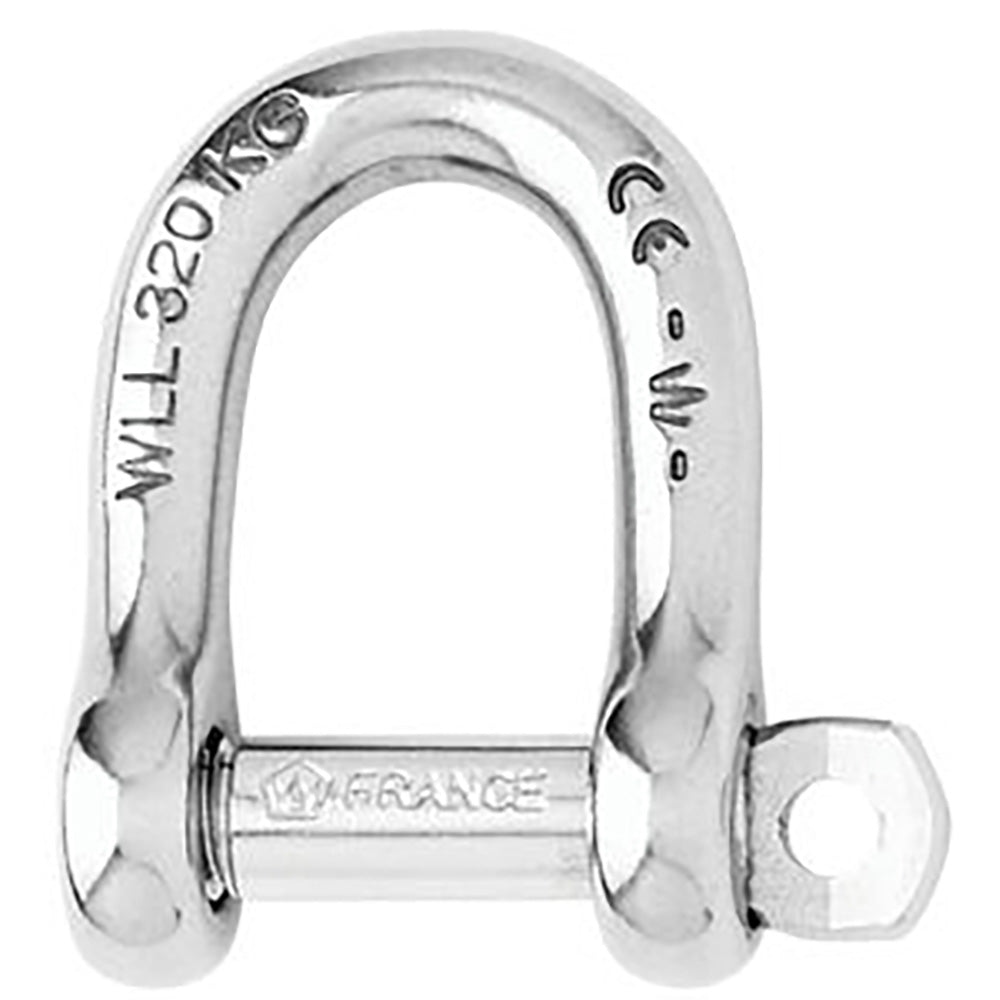

Wichard Marine Not Self-Locking D Shackle 14mm Diameter 9/16 inch for Industrial Lifting

Wichard Marine Not Self-Locking D Shackle 14mm Diameter 9/16 inch for Industrial Lifting

Regular price $191.54 USD
Sale price $191.54 USD Regular price
Sale Sold out
Shipping calculated at checkout.

Not Self-Locking D Shackle - 14mm Diameter - 9/16"

Features:

  • D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e)
  • CE marking
  • Part #01207 is not a self-locking D shackle

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • WLL: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 17630 / (kg) 8000
  • Weight: (lb) 0.688 / (g) 312

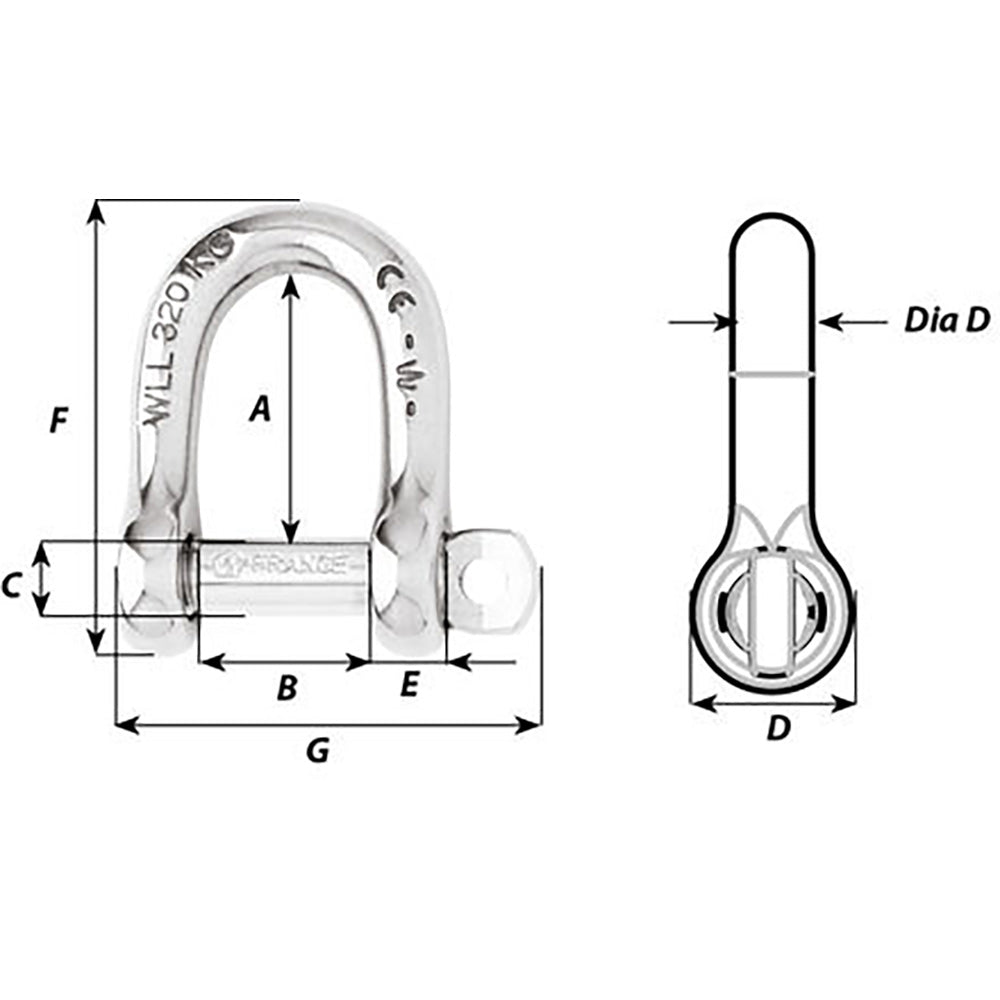

Dimensions:

  • A: (inch) 1 27/32" / (mm) 47
  • B: (inch) 1 7/64" / (mm) 28
  • C: (inch) 35/64" / (mm) 14
  • D: (inch) 1 7/64" / (mm) 28
  • D diameter: (inch) 35/64" / (mm) 14
  • E: (inch) 33/64" / (mm) 13
  • F: (inch) 3 15/64" / (mm) 82
  • G: (inch) 3 5/64" / (mm) 78

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Part #1207W is a high-quality, non-self-locking D shackle designed for demanding industrial lifting applications. Crafted from durable grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength. Its 14mm (9/16 inch) diameter pin ensures a secure connection while maintaining ease of use. The pin is locked into one of the indentations, providing a reliable connection that resists loosening due to vibrations, making it suitable for rigorous industrial environments.

This shackle features outstanding working and breaking loads, with a working load limit (WLL) of 3,520 pounds (1,600 kg) and a breaking load of 17,630 pounds (8,000 kg). The WLL is calculated with a safety factor of 5, making it ideal for heavy-duty lifting tasks. It is CE marked, indicating compliance with European safety standards, and is intended exclusively for industrial applications such as lifting, rigging, and attachment points in various equipment setups.

Designed for versatility, the Wichard Marine D shackle can be used in standard applications or for attaching blocks and heads. Its compact dimensions contribute to its strength and ease of integration into existing systems, with a weight of approximately 0.688 pounds (312 grams). The shackle's precise measurements, including the shackle body and pin diameters, ensure compatibility with a variety of rigging components. Whether used in marine, construction, or industrial settings, this shackle provides reliable performance and safety.

Note that this model is not self-locking and must be properly secured during use. Sold individually, the Wichard Marine Not Self-Locking D Shackle is a trusted choice for professionals requiring durable lifting hardware that combines strength, corrosion resistance, and safety.

Features:

  • Made from grade 316L stainless steel for excellent corrosion resistance and durability
  • 14mm (9/16 inch) diameter pin for secure attachment
  • Pin locked into indentations, preventing loosening due to vibrations
  • Outstanding working load limit of 3,520 lbs (1,600 kg) and breaking load of 17,630 lbs (8,000 kg)
  • CE marked, suitable for industrial lifting and rigging applications
  • Designed for standard and attachment applications such as blocks and heads
  • Compact design with precise dimensions for versatile use
  • Sold individually for flexible deployment in various projects

Only 6 piece in stock!
