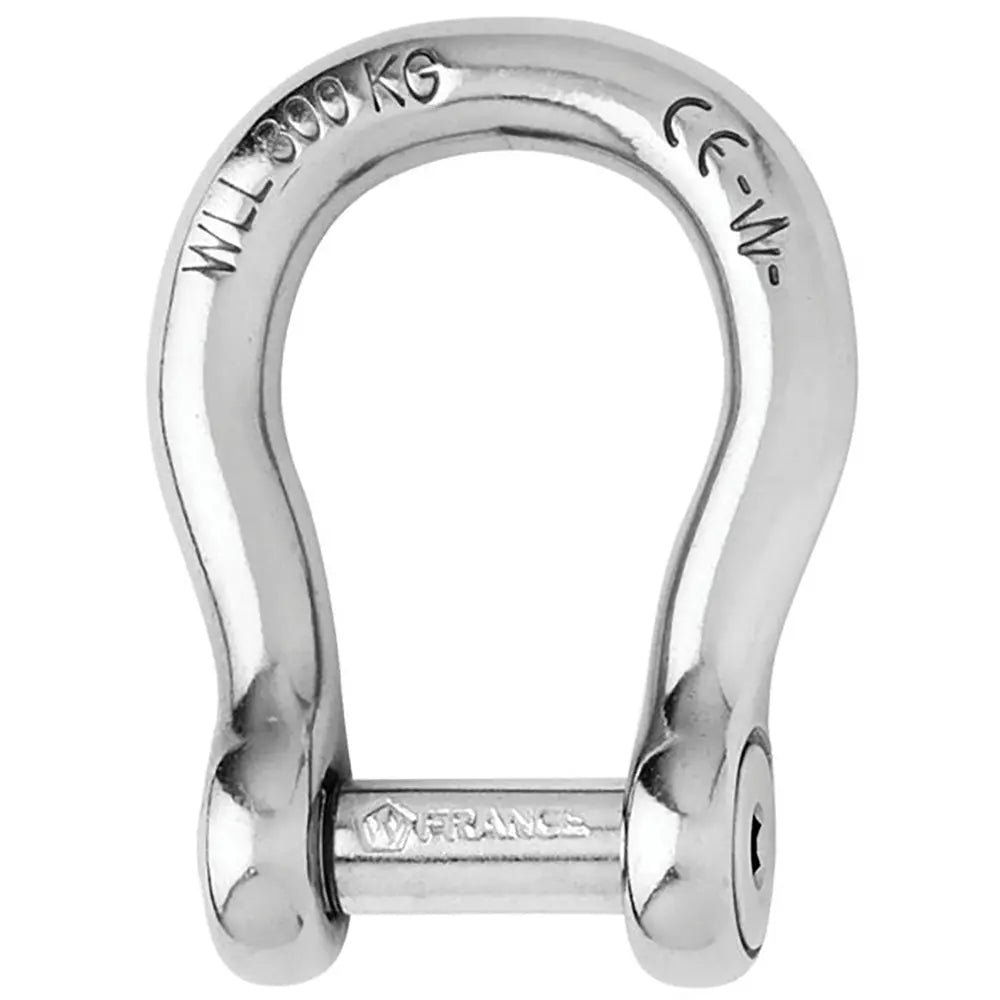

Wichard Marine Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter

Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal to link chain and anchor
• On the halyard, avoids to damage the sails
• To be used when the clutter is reduced
• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.293 / (g) 133

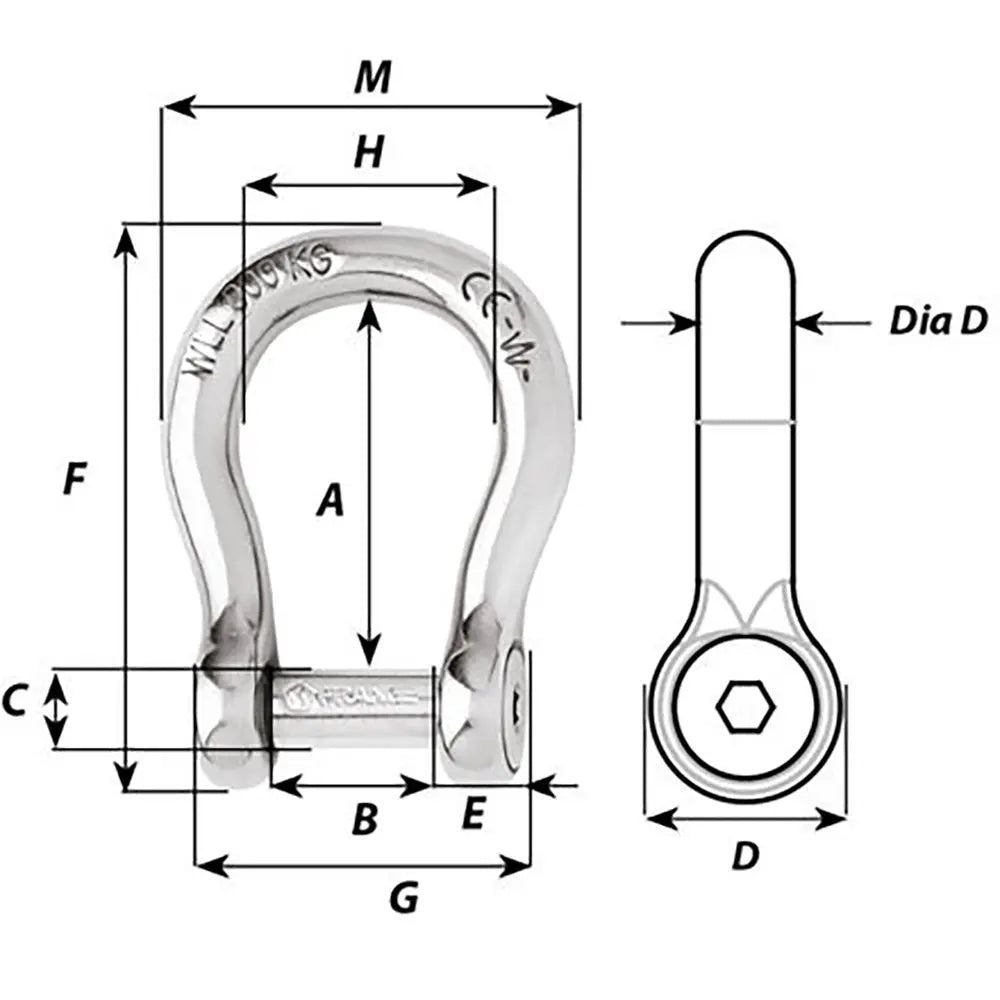

Dimensions:

• A: (inch) 1 27/32" / (mm) 47
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• F: (inch) 1 17/64" / (mm) 32
• M: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin Bow Shackle is a high-strength industrial hardware component designed for secure and reliable connections in demanding environments. Crafted from durable grade 316L stainless steel, this shackle features a self-locking twisted design with an Allen head pin that is forged for maximum strength and corrosion resistance. The pin locks into one of the indentations, ensuring a secure fit without protruding from the shackle body, which minimizes snagging risks during operations. Its robust construction and locking mechanism eliminate concerns about loosening due to vibrations, making it suitable for critical lifting and anchoring applications. The shackle's outstanding working and breaking loads provide confidence in its ability to handle heavy loads safely, with a working load limit (WLL) of 1,890 pounds and a breaking load of 9,470 pounds. This product is CE marked, affirming its compliance with international safety standards and quality assurance. Its compact design and high load capacity make it an ideal choice for linking chains, anchors, or halyards where space is limited or clutter must be minimized. The Wichard Marine shackle is particularly suited for industrial applications such as lifting, rigging, or securing loads, thanks to its high-grade stainless steel construction and safety features. Its weight is approximately 0.29 pounds, making it manageable for various installation scenarios. The dimensions are engineered to fit standard marine and industrial fittings, with key measurements tailored for ease of use and compatibility. Whether used in nautical contexts to prevent sail damage or in industrial settings requiring robust load-bearing hardware, this shackle offers a reliable and corrosion-resistant solution for demanding tasks. Sold individually, it provides a dependable component for professionals seeking durable, secure, and easy-to-install hardware for their lifting and securing needs.

Features:

• Self-locking twisted shackle with Allen head pin forged in grade 316L stainless steel

• Pin locks into one of the indentations for secure connection

• Head of the pin does not protrude, reducing snagging risk

• Design prevents loosening from vibrations

• High working and breaking load capacities

• CE marked for safety and quality assurance
