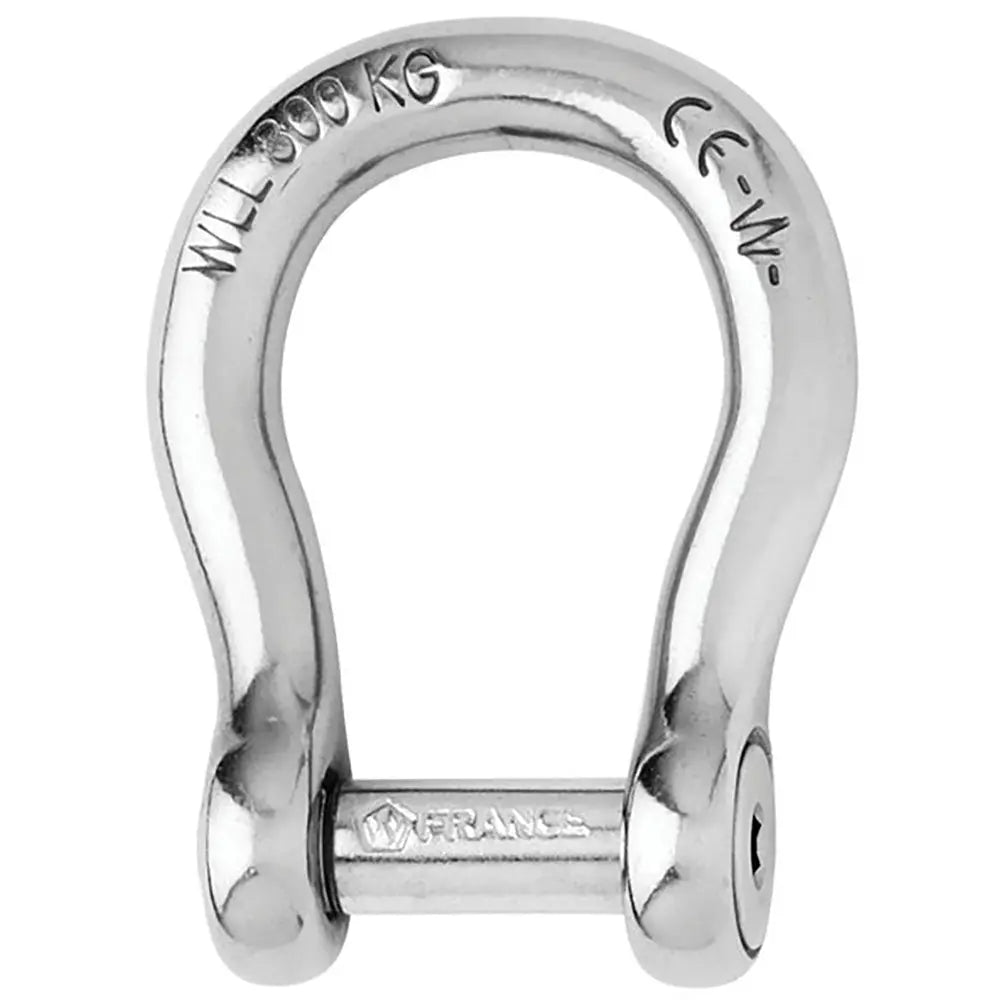

Wichard Marine Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter, 15/32 Inch

Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced
• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.489 / (g) 222

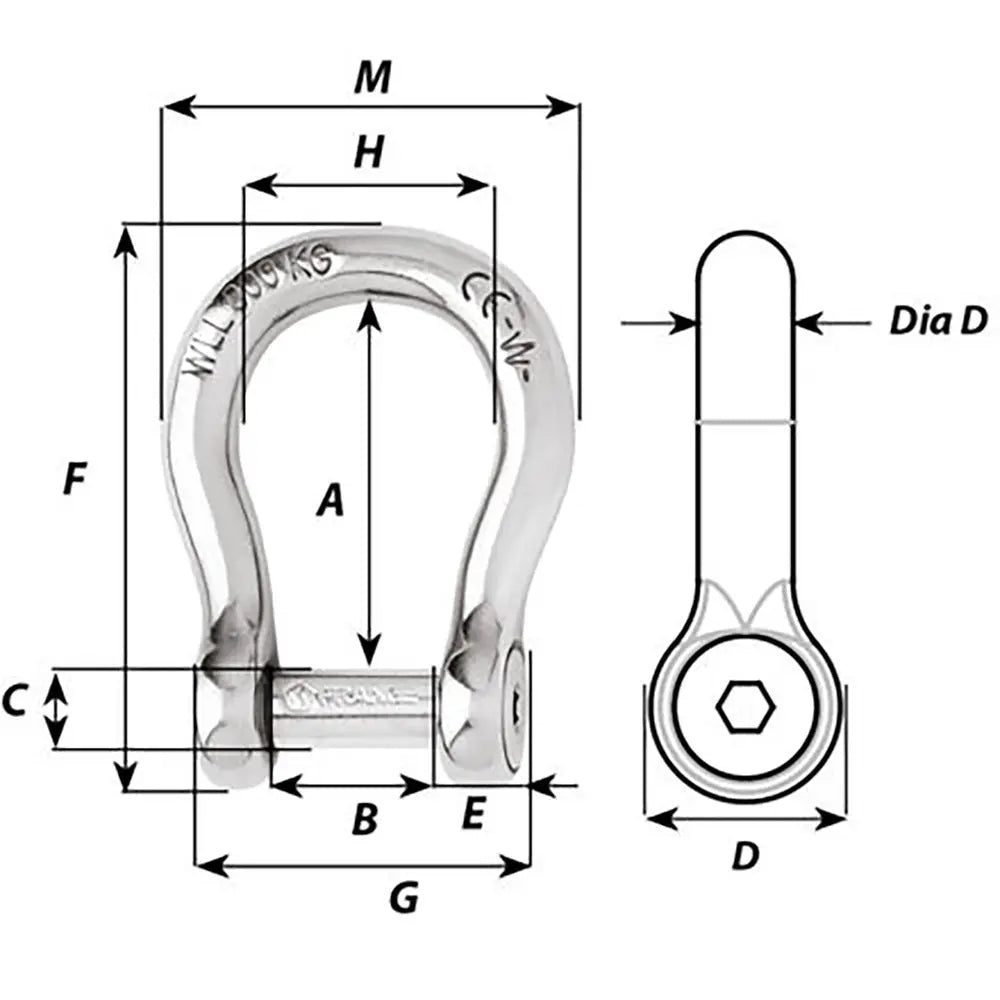

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 15/32" / (mm) 12
• D: (inch)15/16" / (mm) 24
• D diameter: (inch) 15/32" / (mm) 12
• E: (inch) 25/64" / (mm) 10
• F: (inch) 1 1/2" / (mm) 38
• M: (inch) 2 31/64" / (mm) 63

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin Bow Shackle (Part Number: 1346W) is a high-quality, corrosion-resistant shackle designed for demanding industrial and nautical applications. Crafted from durable grade 316L stainless steel, this shackle offers exceptional strength and longevity. The self-locking twisted design features an Allen head pin that is securely locked into one of the indentations, providing a flush profile that eliminates snagging risks and enhances safety during use. Its robust construction ensures outstanding working and breaking loads, making it suitable for critical lifting and anchoring tasks. The shackle’s design minimizes the chance of loosening due to vibrations, providing reliable performance in dynamic environments. Certified with CE markings, it adheres to strict safety standards and is ideal for linking chains, anchoring, and halyard connections, especially where space is limited or clutter reduction is necessary. The compact dimensions and high load capacity make it a versatile component for marine, industrial, and rigging applications, ensuring secure connections and peace of mind during operation. Whether used in sailboats to prevent sail damage or in industrial lifting equipment, this shackle provides a dependable solution for demanding tasks. Sold individually, the Wichard Marine Self-Locking Allen Head Pin Bow Shackle combines safety, strength, and ease of use, making it an essential for professional and serious hobbyist applications.

Features:

• Self-locking twisted shackle with Allen head pin forged in grade 316L stainless steel

• Pin is securely locked into one of the indentations, preventing accidental disengagement

• Flush pin head design eliminates snagging hazards

• Resistant to loosening from vibrations, ensuring safety during dynamic operations

• High working and breaking load capacities for demanding applications

• CE marked for compliance with safety standards

• Suitable for marine, industrial, and rigging use
