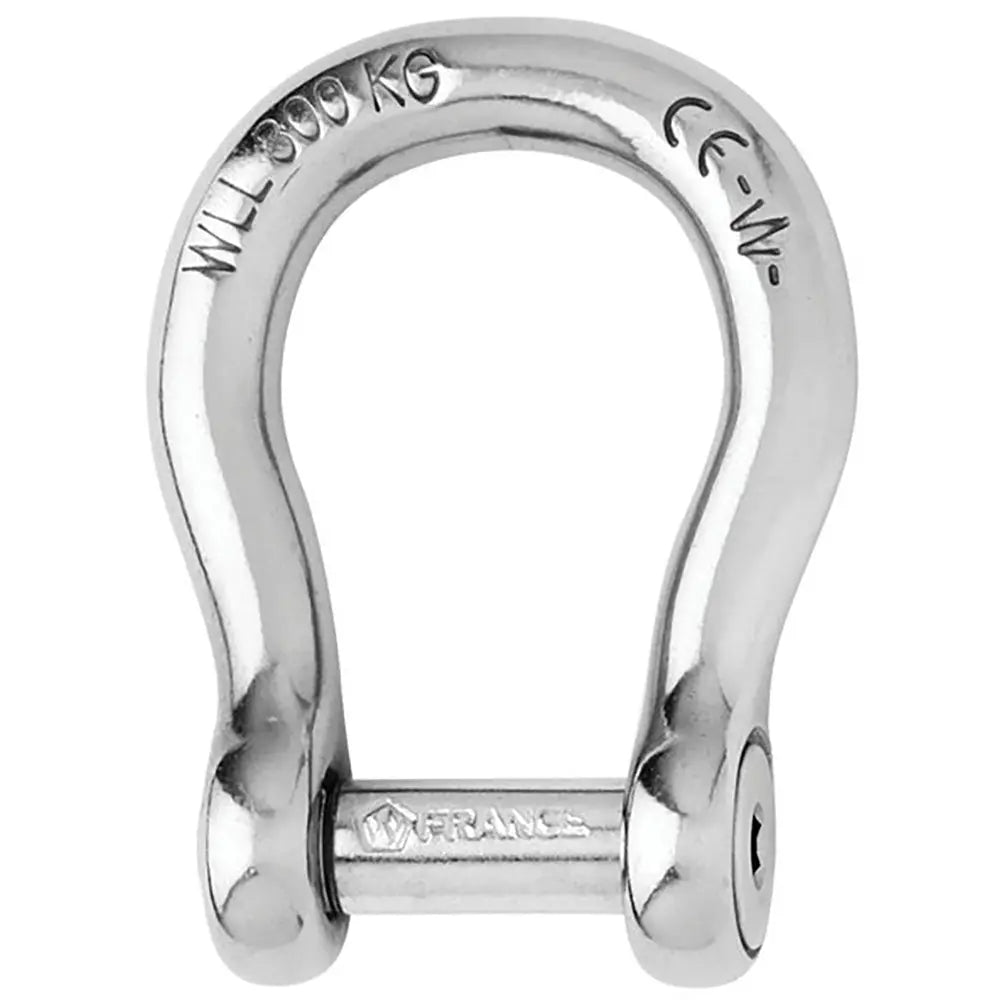

Wichard Marine Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter, 1/4 Inch

Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced
• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 1320 / (kg) 600
• WLL: (lb) 660 / (kg) 300
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.064 / (g) 29

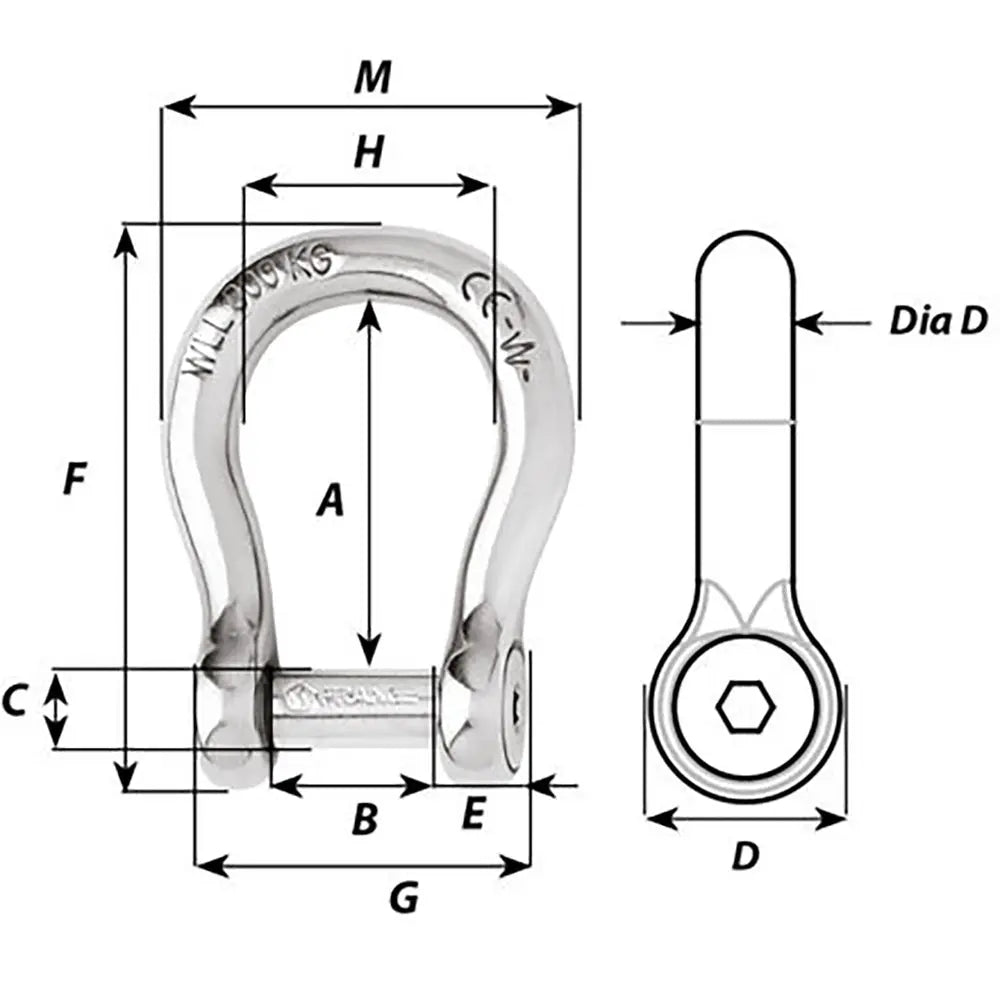

Dimensions:

• A: (inch) 1 1/16" / (mm) 27
• B: (inch) 15/32" / (mm) 12
• C: (inch) 15/64" / (mm) 6
• D: (inch) 15/32" / (mm) 12
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 13/64" / (mm) 5
• F: (inch) 3/64" / (mm) 1
• M: (inch) 1 17/64" / (mm) 32

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin Bow Shackle is crafted from durable grade 316L stainless steel, designed for reliable industrial and nautical applications. Its self-locking twisted shackle features an integrated Allen head pin that is securely locked into one of the indentations, ensuring a secure connection without protruding parts that could snag or cause damage. This design eliminates the risk of loosening due to vibrations, making it suitable for demanding environments where safety and stability are paramount. With outstanding working and breaking loads, this shackle provides a high safety margin, ideal for lifting, anchoring, or linking chains in various industrial settings. Its corrosion-resistant properties make it well-suited for marine environments, ensuring long-term performance despite exposure to harsh conditions. The shackle's compact dimensions and low weight facilitate easy installation and use in confined spaces or where maneuverability is essential. It is particularly useful for connecting halyards without damaging sails, reducing clutter, and providing ample room for operation. Whether used in marine or industrial applications, this shackle offers a robust and reliable solution for secure load handling and connection tasks. The working load limit (WLL) of 300 kg (660 lbs) ensures safe operation within specified parameters, adhering to safety standards with a design safety factor of five. The product is sold individually, making it a versatile and essential component for professionals seeking dependable hardware for their lifting and anchoring needs.

Features:

• Self-locking twisted shackle with Allen head pin forged in grade 316L stainless steel

• Pin securely locks into one of the indentations to prevent loosening

• Recessed pin head eliminates snagging risk and damage to sails or other surfaces

• Design prevents loosening due to vibrations, ensuring safety and stability

• High working and breaking loads for demanding industrial and marine applications

• Suitable for lifting, anchoring, and chain linking in various environments
