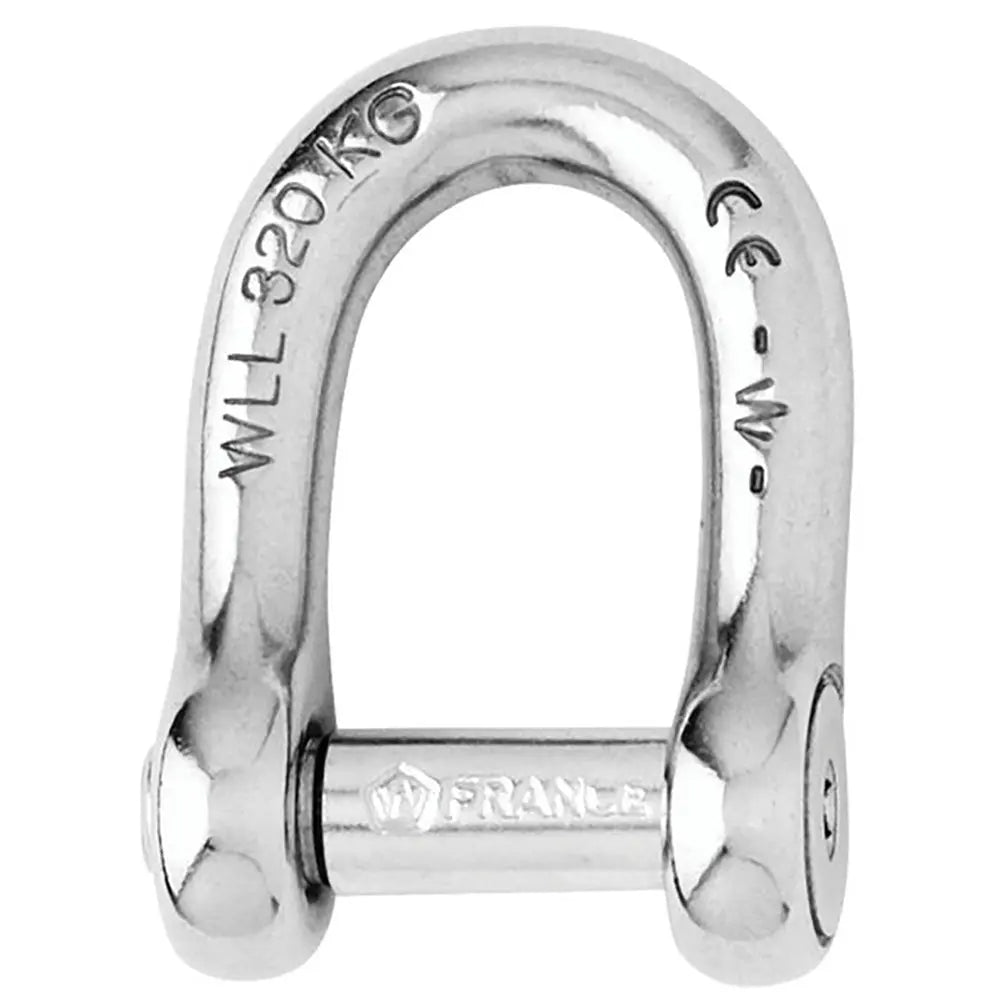

Wichard Marine Self-Locking Allen Head Pin D Shackle 10mm Diameter - Industrial Grade Stainless Steel

Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal for linking chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.218 / (g) 99

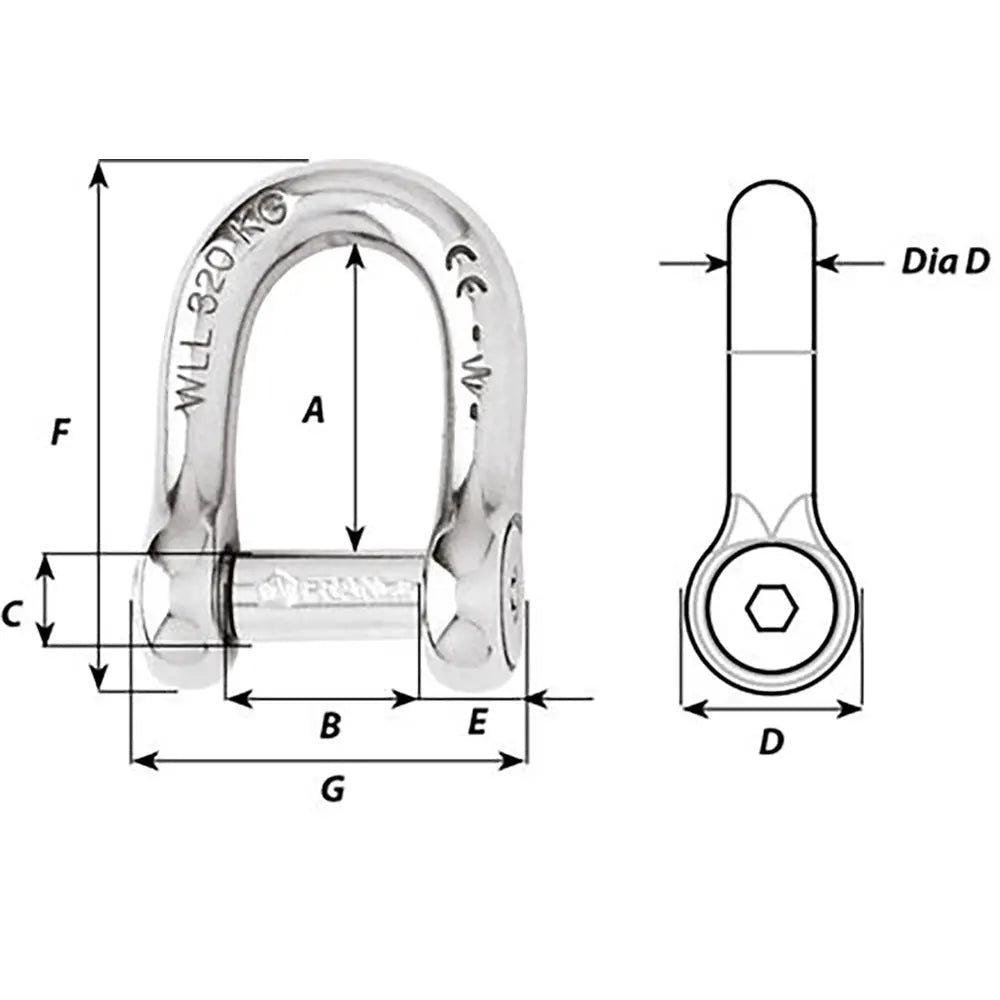

Dimensions:

• A: (inch) 1 19/64" / (mm) 33
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 3/4" / (mm) 19
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• F: (inch) 2 1/4" / (mm) 57
• G: (inch) 1 39/64" / (mm) 41

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin D Shackle, with a 10mm diameter, is designed for demanding industrial and nautical applications. Constructed from durable grade 316L stainless steel, this shackle offers exceptional corrosion resistance, making it ideal for use in harsh marine environments as well as industrial settings. Its self-locking feature ensures the pin remains securely in place without the need for additional tools, reducing the risk of accidental loosening due to vibrations or dynamic loads. The Allen head design allows for easy installation and removal, even in tight spaces, while the pin's flush fit prevents snagging on ropes, chains, or other rigging components. This shackle combines high working and breaking loads with a compact, streamlined profile, making it suitable for critical load-bearing tasks where safety and reliability are paramount. It is rated for a Working Load Limit (WLL) of 1,890 lbs and a breaking load of 9,470 lbs, providing robust safety margins for industrial lifting, rigging, and securing applications. The Wichard Marine D shackle is CE marked, confirming compliance with international safety standards, and is sold individually for versatile use in various setups. Its corrosion-resistant construction and secure locking mechanism make it especially suitable for linking chains, securing anchors, or halyards where minimizing clutter and preventing sail damage are necessary. Whether used in maritime, industrial, or heavy-duty applications, this shackle offers dependable performance, ease of use, and enhanced safety, ensuring your rigging system remains secure under demanding conditions.

Features:

• Self-locking design with Allen head pin for secure fastening

• Constructed from grade 316L stainless steel for excellent corrosion resistance

• Pin locks into indentations, flush with the shackle body to prevent snagging

• Vibration-resistant design prevents loosening during operation

• High working and breaking load capacities for demanding applications

• Rated for industrial use with a Working Load Limit (WLL) of 1,890 lbs

• CE marked for compliance with safety standards
