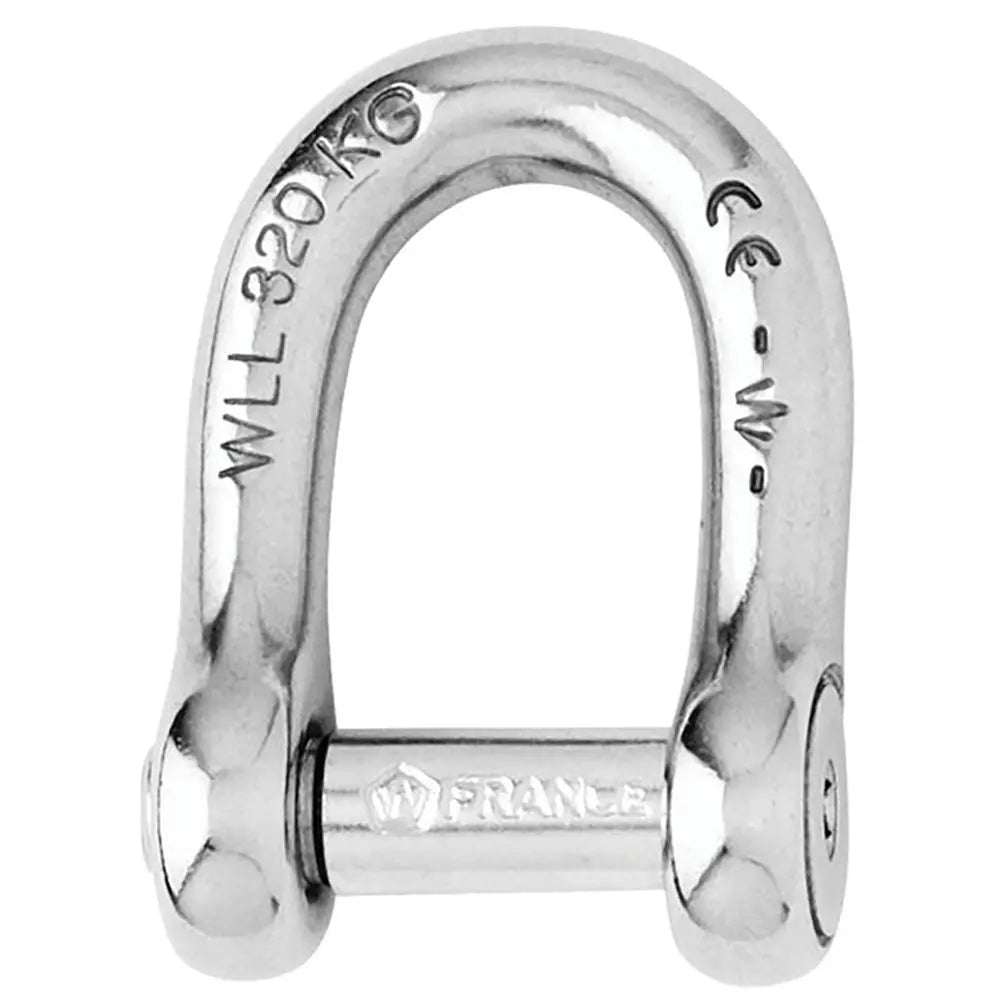

Wichard Marine Self-Locking Allen Head Pin D Shackle - 12mm Diameter, 15/32 inch

Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.412 / (g) 187

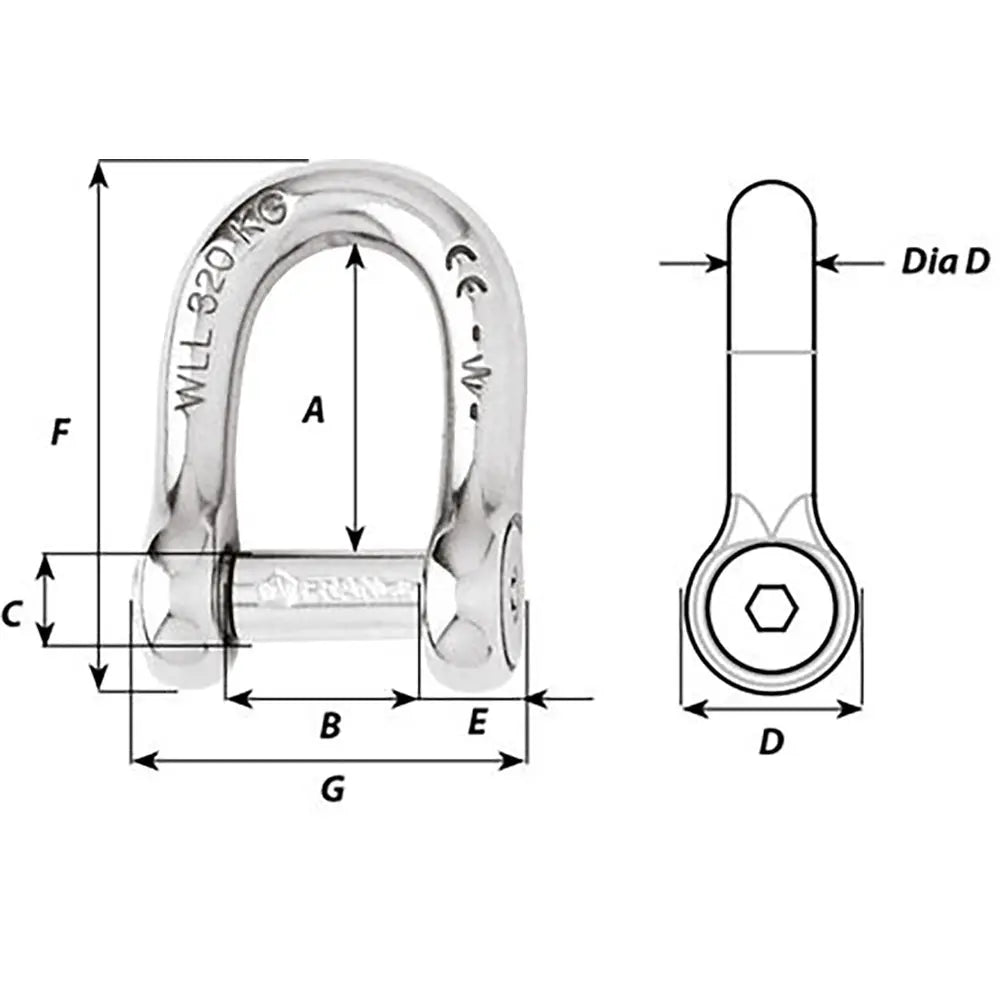

Dimensions:

• A: (inch) 1-21/32 / (mm) 42
• B: (inch) 1-1/16 / (mm) 27
• C: (inch) 15/32 / (mm) 12
• D: (inch) 15/16 / (mm) 24
• D diameter: (inch) 15/32 / (mm) 12
• E: (inch) 25/64 / (mm) 10
• F: (inch) 2-7/8 / (mm) 73
• G: (inch) 1-59/64 / (mm) 49

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin D Shackle, part number 1306W, is engineered from durable grade 316L stainless steel, ensuring excellent corrosion resistance and strength for demanding applications. With a 12mm (15/32 inch) diameter pin, this shackle is designed for secure connections where safety and reliability are paramount. Its self-locking feature involves the pin locking into one of the indentations, preventing accidental disengagement, while the flush head design minimizes snagging risks during handling or operation. This makes it especially suitable for marine, industrial, and nautical use where safety and performance are critical. The shackle boasts outstanding working and breaking loads, with a working load limit (WLL) of 1,200 kg (2,640 lb) and a breaking load of 6,000 kg (13,220 lb), providing a substantial safety margin. Its CE marking attests to compliance with international safety standards, making it a trusted component for various lifting and securing tasks. The compact dimensions, including a total length of approximately 1-21/32 inches, allow for versatile installation in tight spaces. This shackle is ideal for linking chains, anchoring, halyard connections, and other applications where reducing clutter and ensuring safety are priorities. The robust construction and safety features make it suitable for both industrial lifting and nautical environments, where high load capacities and secure locking are essential. The lightweight design, at just over 0.4 pounds, allows for easy handling without sacrificing strength or durability. Whether used in marine settings to prevent sail damage or in industrial contexts for secure load management, the Wichard Marine Self-Locking Allen Head Pin D Shackle offers a reliable and safe fastening solution for demanding applications.

Features:

• Self-locking shackle with allen head pin made from grade 316L stainless steel for corrosion resistance

• Pin locks into one of the indentations, ensuring secure connection without risk of loosening from vibrations

• Flush head design eliminates snagging hazards during handling or installation

• High working and breaking loads suitable for demanding applications

• CE marked for compliance with international safety standards
