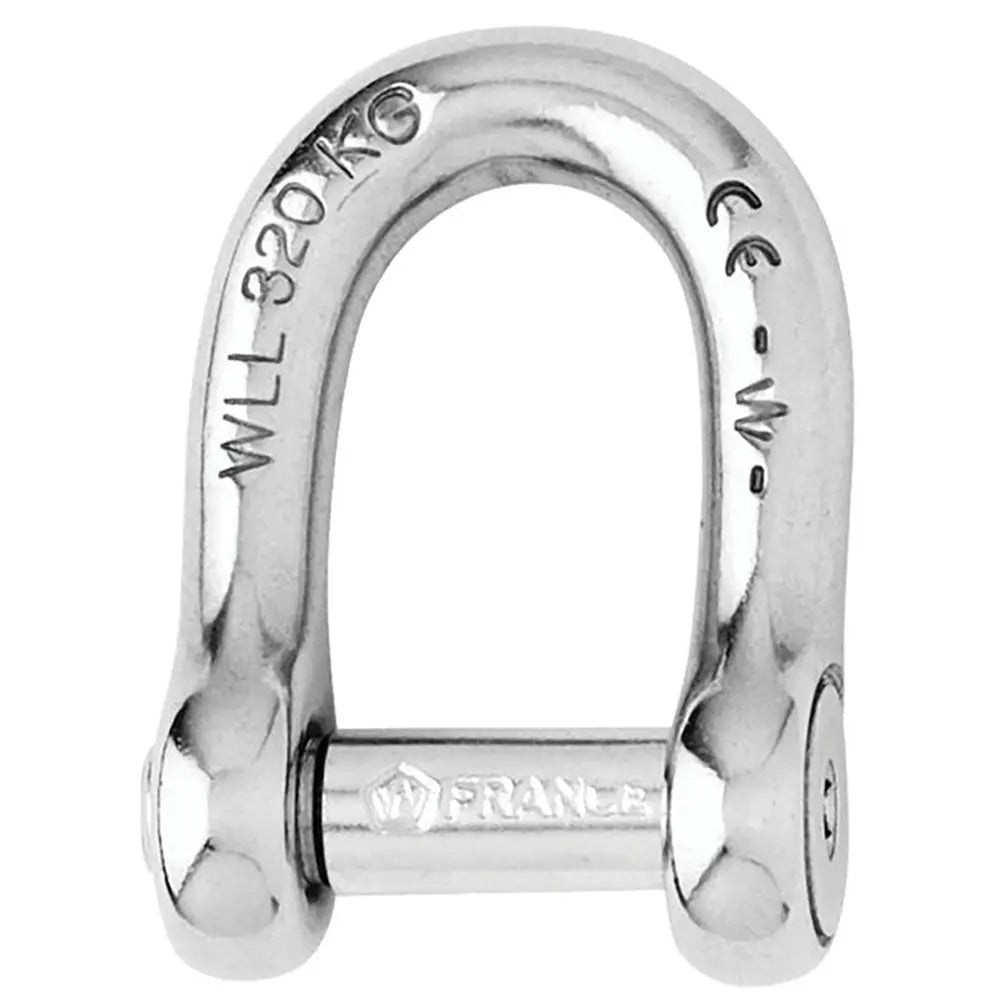

Wichard Marine Self-Locking Allen Head Pin D Shackle - 6mm Diameter / 1/4 inch

Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 1320 / (kg) 600
• WLL: (lb) 700 / (kg) 320
• Breaking load: (lb) 3520 / (kg) 1600
• Weight: (lb) 0.049 / (g) 22

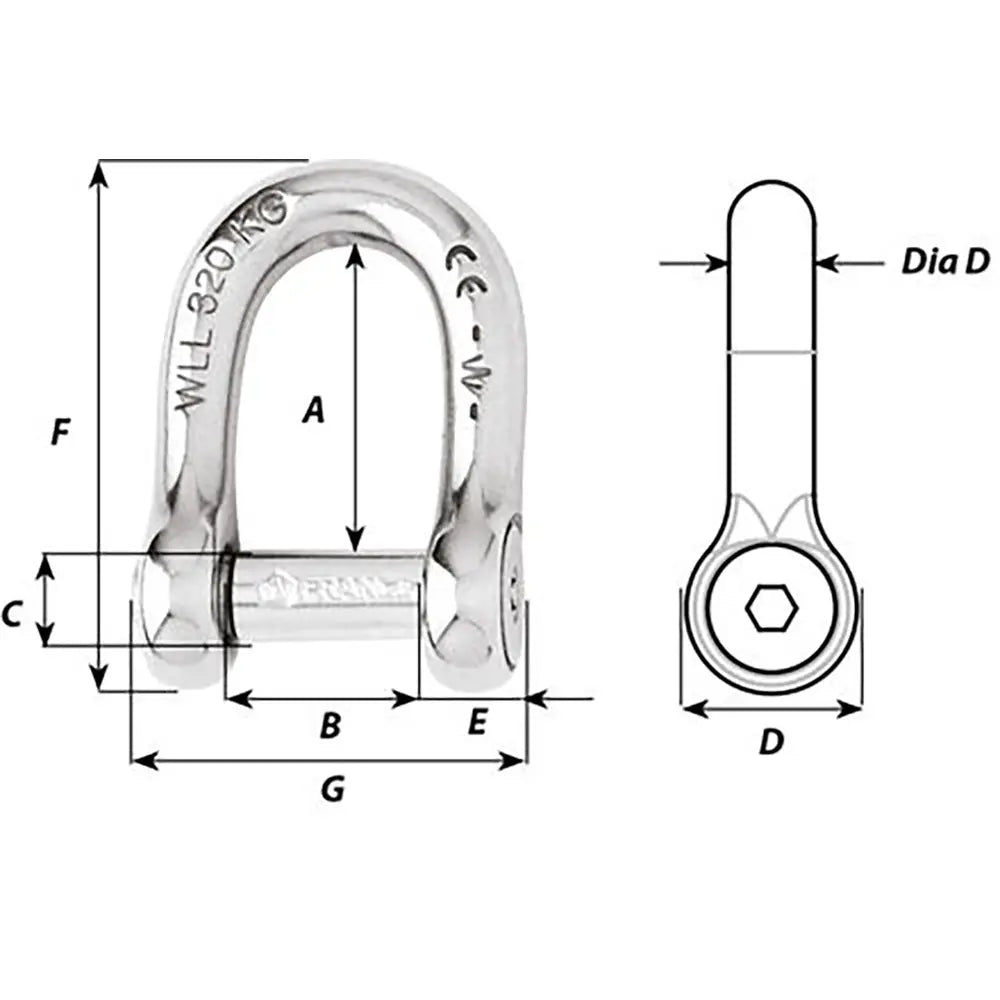

Dimensions:

• A: (inch) 3/4" / (mm) 19
• B: (inch) 15/32" / (mm) 12
• C: (inch) 15/64" / (mm) 6
• D: (inch) 15/32" / (mm) 12
• D diameter: (inch) 15/64" / (mm) 6

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin D Shackle, part number 1303W, is crafted from durable grade 316L stainless steel, ensuring corrosion resistance and longevity in demanding environments. With a 6mm (1/4 inch) diameter, this shackle features a self-locking mechanism that secures the pin into one of its indentations, providing a reliable connection that prevents accidental loosening caused by vibrations. The design eliminates protruding pin heads, reducing snagging risks during handling or use. This shackle boasts outstanding working and breaking loads, making it suitable for various industrial and nautical applications. Its CE marking certifies compliance with relevant safety standards, supporting its use in professional settings. The shackle is ideal for linking chains, anchoring, or securing halyards without damaging sails, especially in environments where clutter is minimized. Constructed from high-grade stainless steel, it offers excellent strength, corrosion resistance, and durability. The working load limit (WLL) is 320 kg (700 lbs), with a breaking load of 1,600 kg (3,520 lbs), making it suitable for heavy-duty tasks. Weighing just 22 grams (0.049 lbs), it is lightweight yet robust, facilitating easy handling and installation. Its compact dimensions include a 3/4-inch (19 mm) overall length and a 15/32-inch (12 mm) pin diameter, ensuring compatibility with various rigging setups. Designed for industrial applications with a safety factor of 5 times the WLL, this shackle provides a secure and reliable connection under load, making it an essential component for maritime and industrial use. Sold individually, the Wichard Marine Self-Locking Allen Head Pin D Shackle combines safety, strength, and ease of use for demanding applications.

Features:

• Self-locking shackle with allen head pin forged in grade 316L stainless steel

• Pin locks into one of the indentations for secure connection

• Head of the pin does not protrude, reducing snagging risks

• Designed to prevent loosening due to vibrations

• Offers outstanding working and breaking loads

• Suitable for industrial lifting applications

• CE marked for compliance with safety standards
