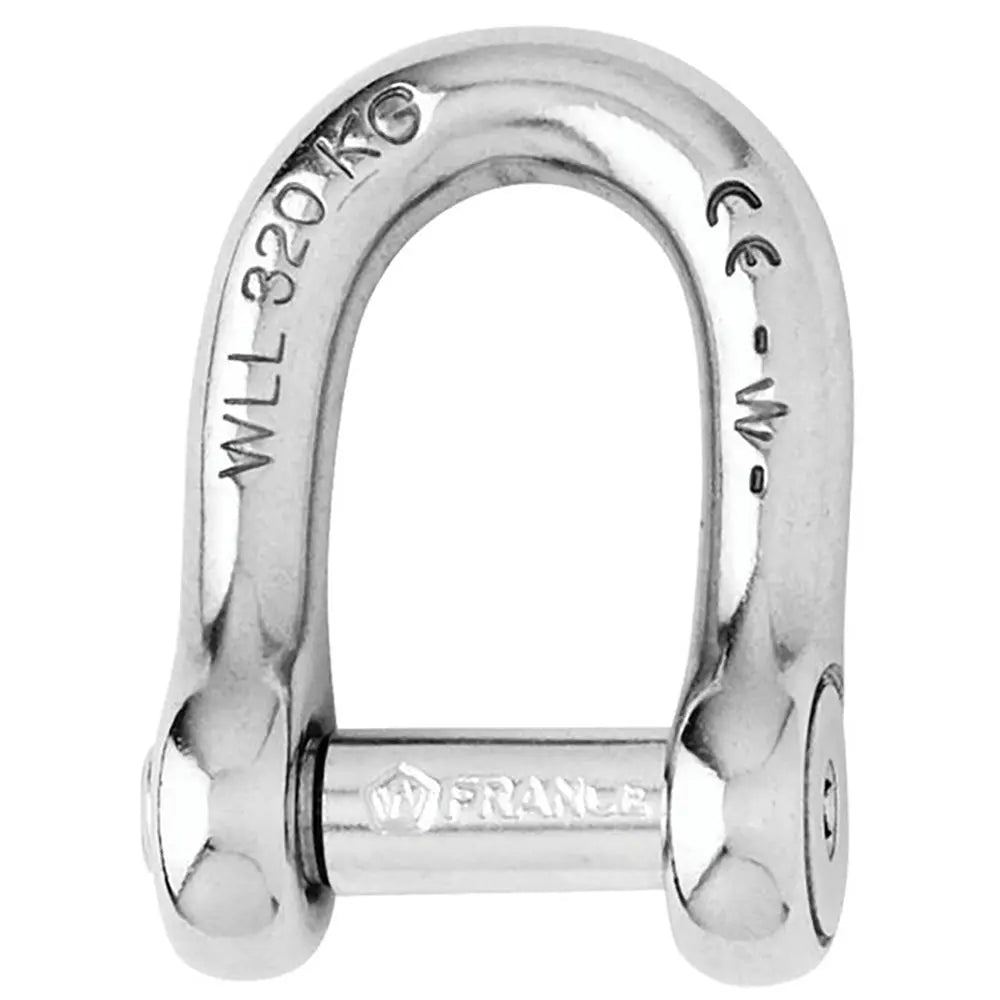

Wichard Marine Self-Locking Allen Head Pin D Shackle - 8mm Diameter, 5/16 Inch

Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal to link chain and anchor
• On the halyard, avoids to damage the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• WLL: (lb) 1190 / (kg) 540
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.117 / (g) 53

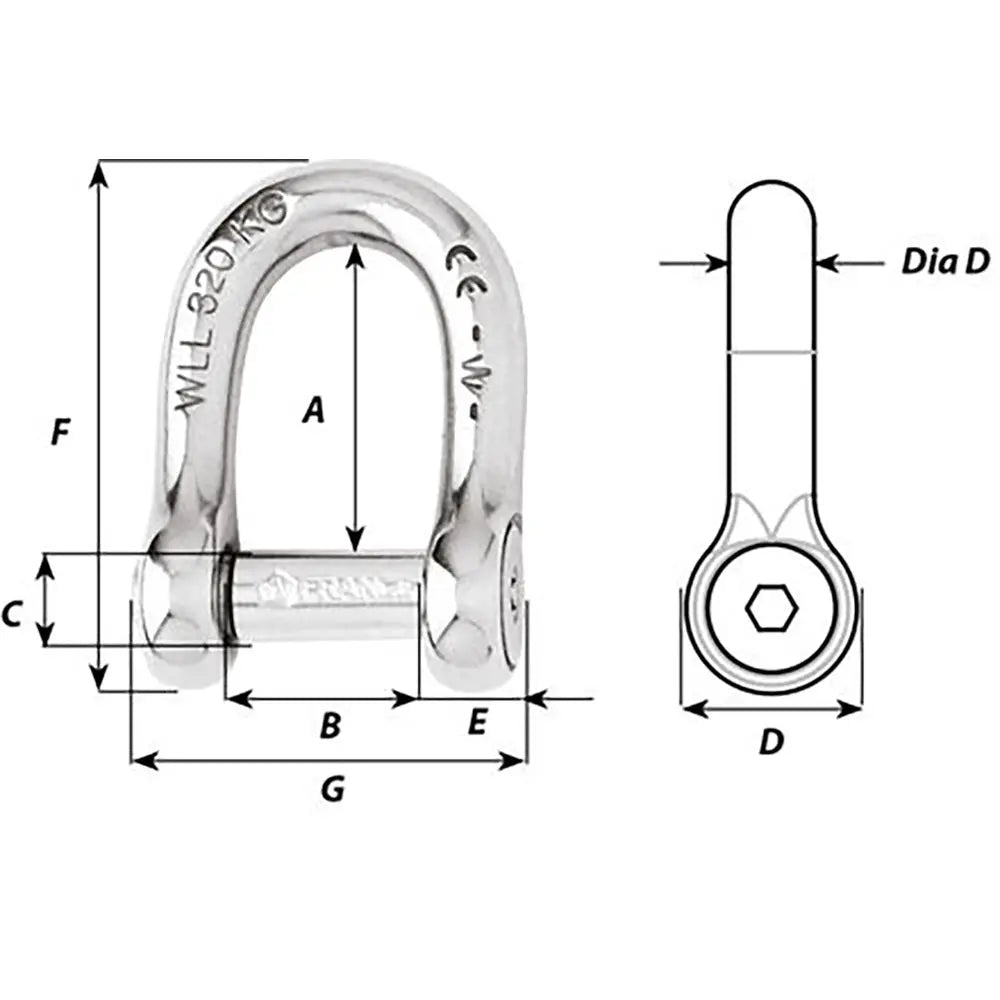

Dimensions:

• A: (inch) 1 1/32" / (mm) 26
• B: (inch)5/8" / (mm) 16
• C: (inch) 5/16" / (mm) 8
• D: (inch) 5/8" / (mm) 16
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 9/32" / (mm) 7
• F: (inch) 1 13/16" / (mm) 46
• G: (inch) 1 19/64" / (mm) 33

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Allen Head Pin D Shackle is crafted from high-grade 316L stainless steel, ensuring exceptional durability and corrosion resistance in demanding environments. With an 8mm diameter and a 5/16 inch pin, this shackle is designed to provide a secure and reliable connection for various industrial and nautical applications. Its self-locking mechanism features an Allen head pin that is locked into an indentation, eliminating the risk of loosening due to vibrations or movement. The pin's flush design prevents snagging hazards, making it ideal for tight spaces and reducing clutter. This shackle offers outstanding working and breaking loads, making it suitable for heavy-duty applications such as lifting, anchoring, and securing loads. It is CE marked, confirming compliance with essential safety standards, and is intended primarily for industrial use with a working load limit of 540 kg (1190 lb). Its robust construction and high load capacity make it a trusted choice for demanding tasks where safety and reliability are paramount. The Wichard Marine Self-Locking Allen Head Pin D Shackle is perfect for linking chains, attaching to anchors, or halyards, and can be used in situations where minimizing damage to sails or reducing clutter is important. Its compact dimensions and high-strength materials ensure longevity and dependable performance in marine or industrial environments, making it a versatile component for professionals requiring strong, secure, and corrosion-resistant shackles.

Features:

• Self-locking design with Allen head pin forged from grade 316L stainless steel

• Pin locks into one of the indentations, preventing accidental loosening

• Flush head design eliminates snagging hazards

• Resistant to vibrations, reducing risk of loosening during use

• High working and breaking load capacities for demanding applications

• CE marked for safety compliance

• Ideal for linking chains, anchoring, halyards, and reducing clutter in tight spaces
