Wichard Marine Self-Locking Bow Shackle 10mm Diameter, Part No. 1245W

Self-Locking Bow Shackle - Diameter 10mm - 13/32"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• WLL (lb) 1890
• Breaking load (lb) 9470
• Weight (lb) 0.302

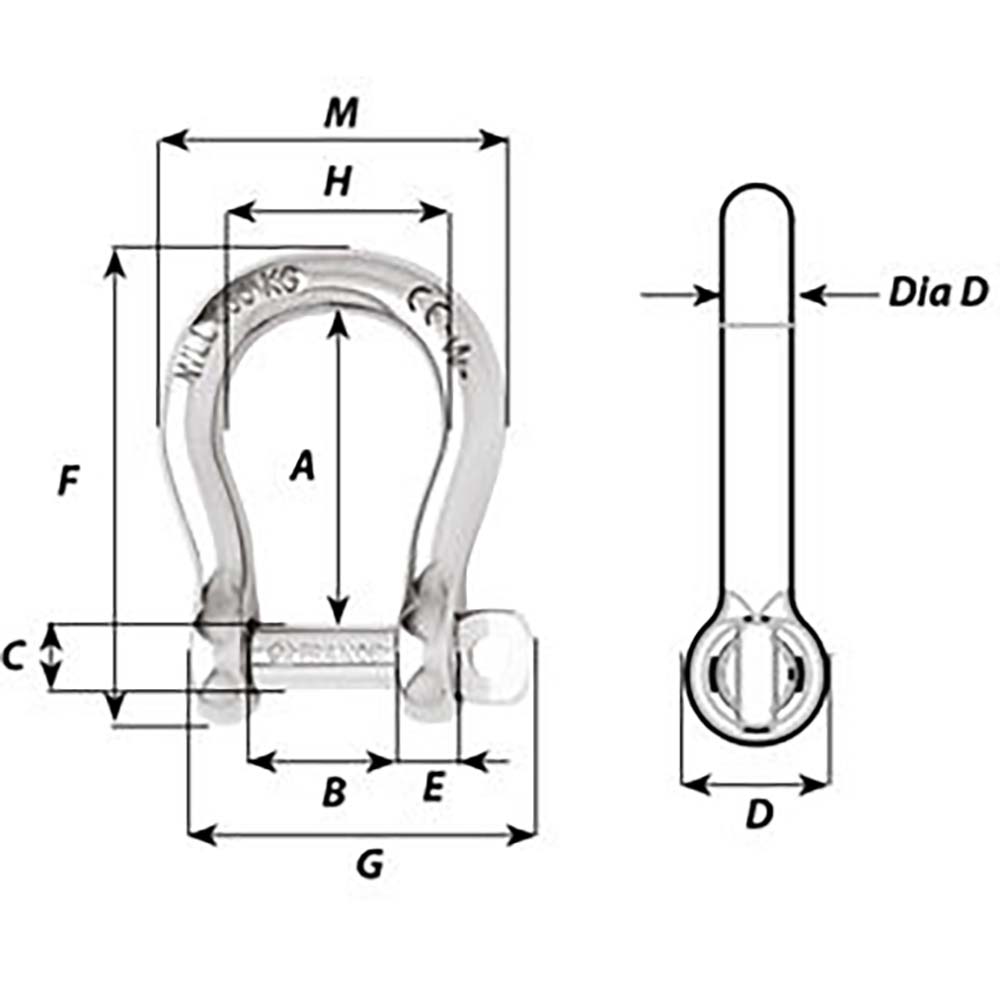

Dimensions:

• A (inch) 1-27/32"
• B (inch) 25/32"
• C (inch) 25/64"
• D (inch) 25/32"
• D diameter (inch) 25/64"
• E (inch) 23/64"
• M (inch) 2-3/64"

The Wichard Marine Self-Locking Bow Shackle, Part No. 1245W, is designed for demanding industrial lifting applications requiring secure and reliable connections. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance and durability in harsh environments. The self-locking pin mechanism ensures the pin remains securely engaged without risk of loosening due to vibrations, enhancing safety during operation. Its robust construction provides outstanding working and breaking loads, making it suitable for heavy-duty lifting tasks where maximum strength is essential. The shackle's design allows for ample room to attach multiple lines or cables, offering versatility in various industrial and marine setups. With a working load limit (WLL) of 1,890 lbs and a breaking load of 9,470 lbs, this shackle is ideal for professional use where safety and reliability are paramount. It features CE marking and batch number identification, complying with industry standards for quality assurance. The compact dimensions and lightweight design facilitate easy handling and installation, making it a practical choice for rigging, towing, and lifting operations. Whether used in marine environments or industrial settings, the Wichard Marine Self-Locking Bow Shackle provides a secure, corrosion-resistant solution for heavy lifting and load securing tasks.

Features:

• Self-locking pin prevents loosening due to vibrations

• Forged from durable grade 316L stainless steel

• High working and breaking load capacities for demanding applications

• Designed for industrial lifting with a WLL of 1,890 lbs

• CE marked with batch number for quality assurance
