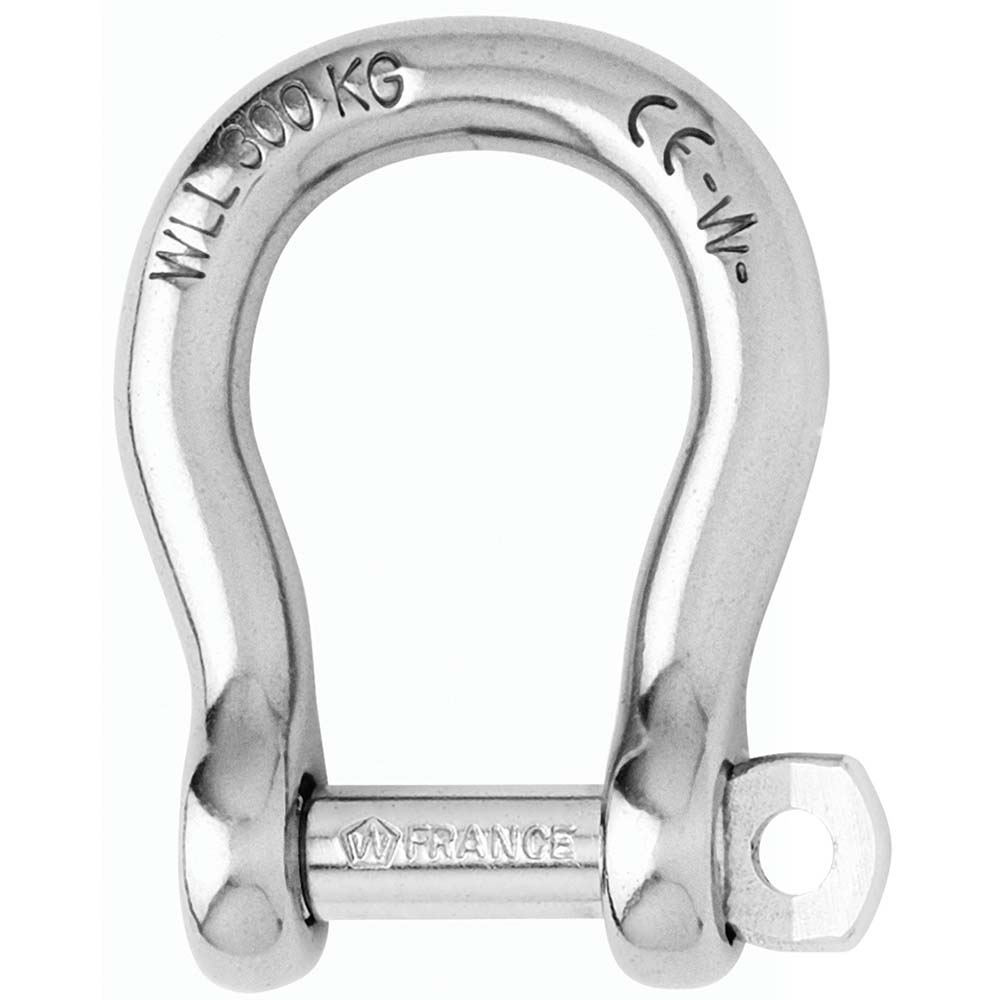

Wichard Marine Self-Locking Bow Shackle 4mm (5/32 inch) with Grade 316L Stainless Steel Construction

Self-Locking Bow Shackle - Diameter 4mm - 5/32"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 300
• Breaking load (lb) 1540
• Weight (lb) 0.02

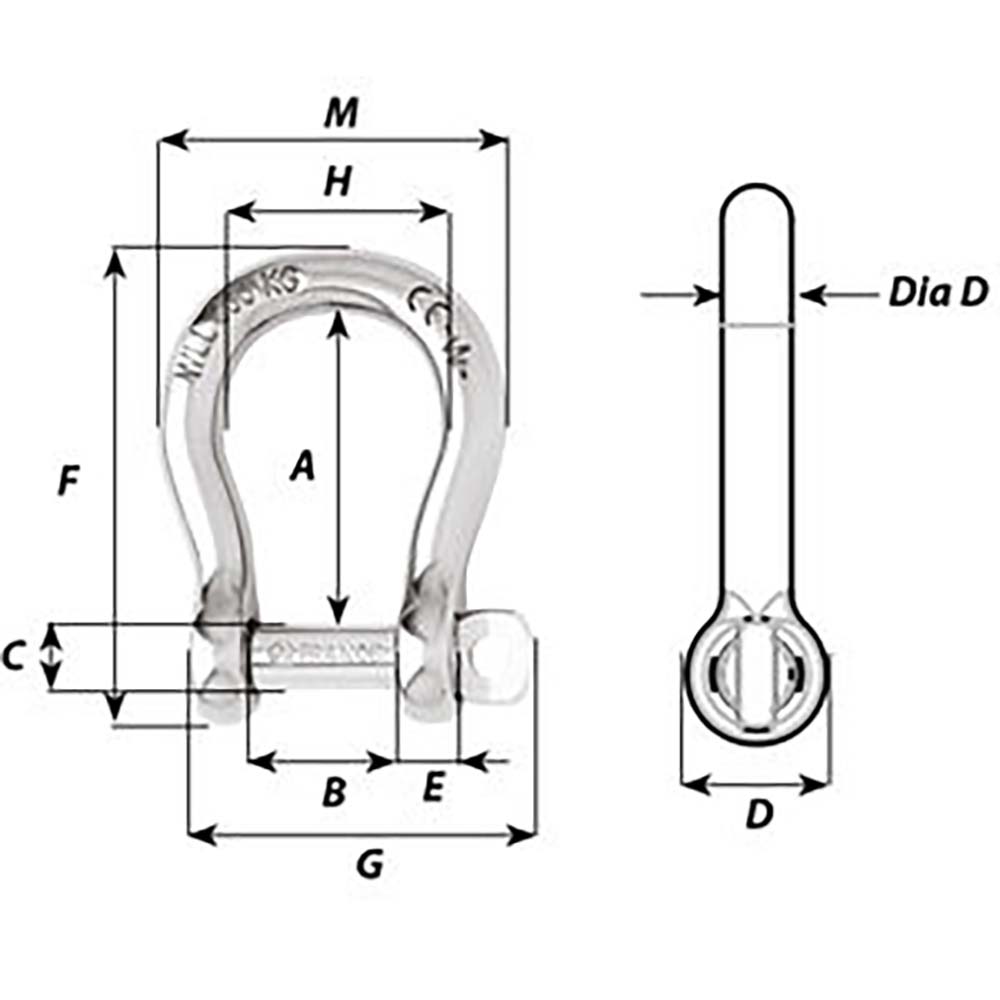

Dimensions (see 2nd image):

• A (inch) 45/64"
• B (inch) 5/16"
• C (inch) 5/32"
• D (inch) 5/16"
• D diameter (inch) 5/32"
• M (inch) 53/64"

The Wichard Marine Self-Locking Bow Shackle is designed for demanding industrial lifting applications where safety and reliability are paramount. Crafted from high-grade 316L stainless steel, this shackle offers excellent corrosion resistance and durability in harsh environments. Its self-locking mechanism ensures the pin stays securely in place by locking into one of the indentations, eliminating the risk of loosening due to vibrations or dynamic loads. This feature makes it ideal for lifting, rigging, and securing multiple lines or cables in industrial settings. The shackle's outstanding working load limit (WLL) of 300 pounds and breaking load capacity of 1,540 pounds provide a substantial safety margin for various heavy-duty tasks. Its compact size and versatile design allow for ample room when attaching multiple lines, making it a reliable choice for complex rigging configurations. The Wichard Marine part number 1241W is CE marked and includes a batch number for traceability. Its lightweight construction, weighing only 0.02 pounds, ensures ease of handling without compromising strength or safety. The dimensions are optimized for ease of use, with a length of approximately 45/64 inches and a width of 5/16 inches, accommodating a 5/32-inch diameter pin. Whether used in marine, industrial, or construction environments, this self-locking bow shackle provides a secure, corrosion-resistant connection that meets the demanding requirements of professional applications.

Features:

• Self-locking mechanism forged from grade 316L stainless steel for security and corrosion resistance

• Pin locks into one of the indentations, preventing loosening from vibrations

• Outstanding working and breaking load capacities suitable for industrial lifting

• Designed for applications requiring ample room and multiple line attachments

• CE marked with batch number for compliance and traceability

• Lightweight construction weighing only 0.02 pounds for easy handling

• Dimensions optimized for secure and versatile rigging in demanding environments
