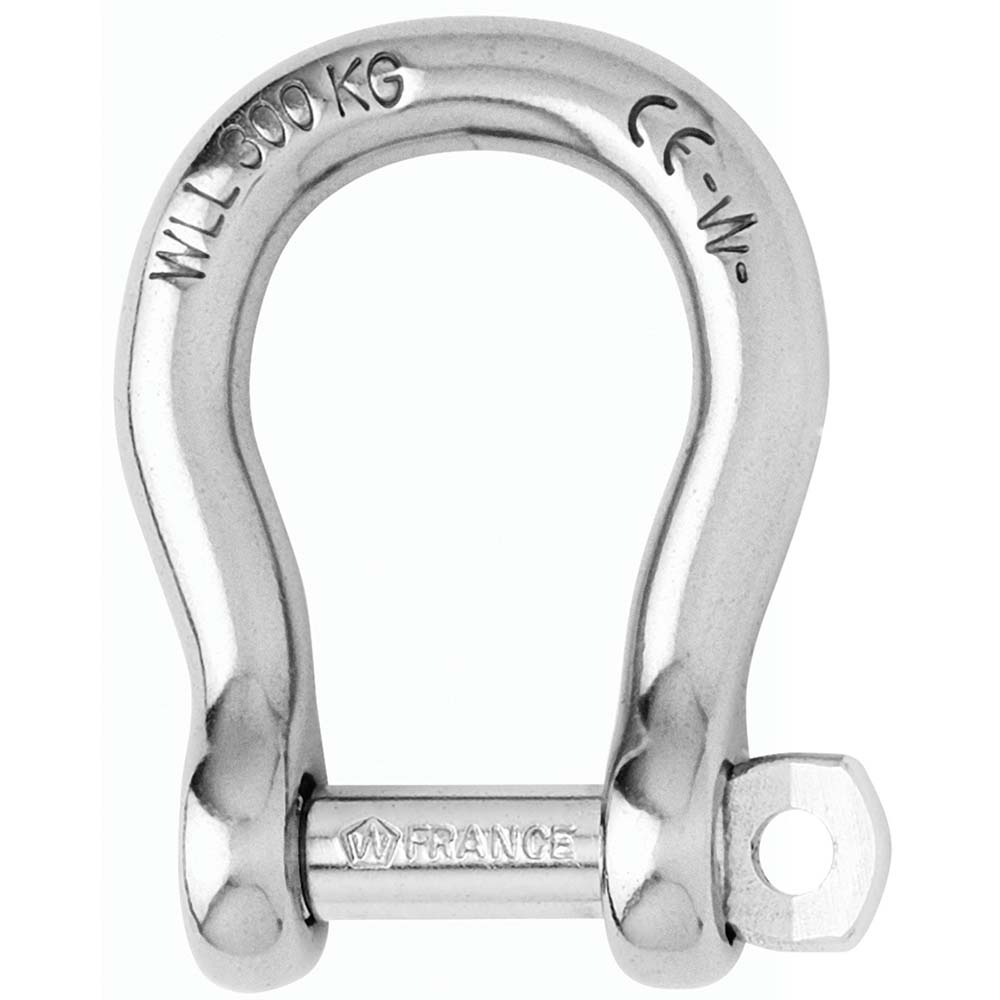

Wichard Marine Self-Locking Bow Shackle 5mm Diameter, Part No. 1242W

Self-Locking Bow Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 880
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.037

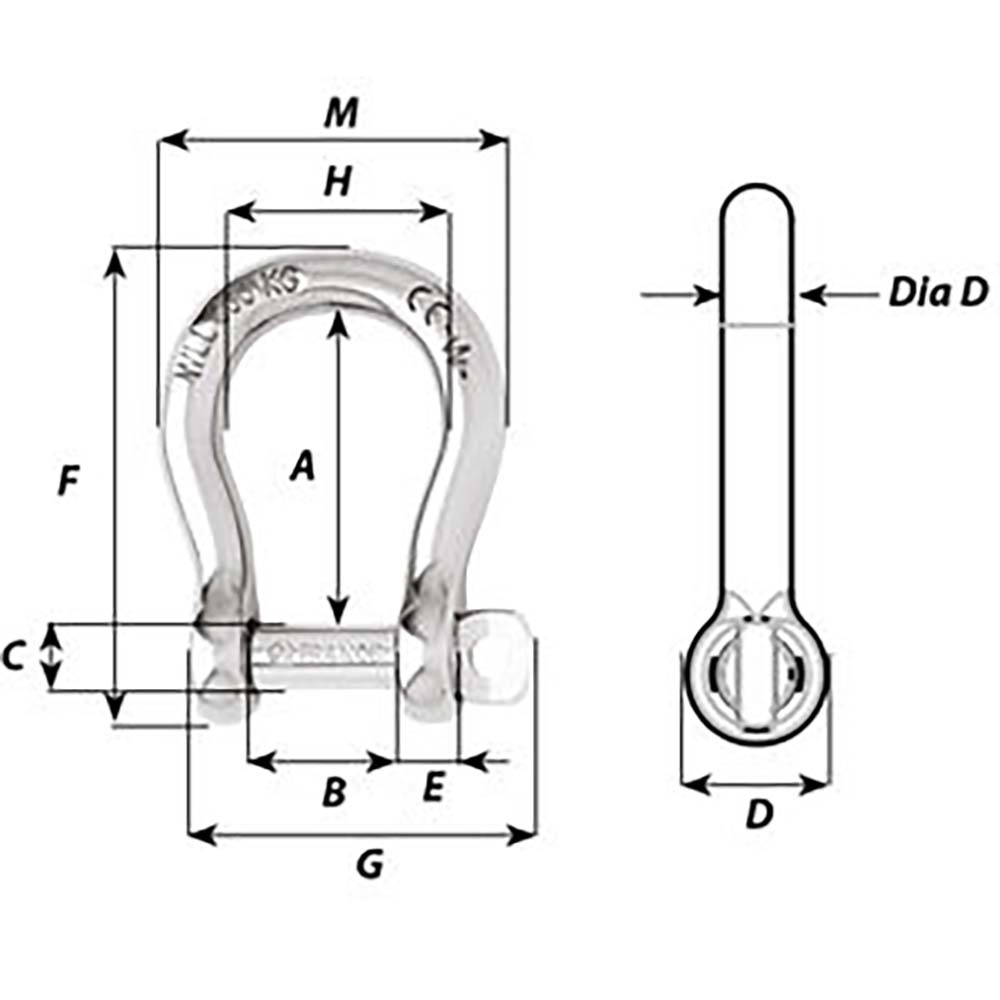

Dimensions (see 2nd image):

• A (inch) 29/32"
• B (inch) 25/64"
• C (inch) 13/64"
• D (inch) 25/64"
• D diameter (inch) 13/64"
• E (inch) 5/32"
• M (inch) 63/64"

The Wichard Marine Self-Locking Bow Shackle, part number 1242W, offers a reliable solution for industrial lifting applications requiring secure and durable hardware. Crafted from premium grade 316L stainless steel, this shackle provides exceptional corrosion resistance and strength. Its self-locking design features a pin that locks into one of the indentations, eliminating any risk of loosening due to vibrations. This ensures safety and stability when securing multiple lines or cables in demanding environments. With outstanding working and breaking loads, this shackle is engineered for heavy-duty industrial use, supporting up to 880 pounds of working load limit (WLL) and a breaking load of 2,200 pounds. It is CE marked and batch numbered for compliance and traceability. The shackle's dimensions are optimized for versatility, providing ample room for attaching multiple lines or cables while maintaining a compact profile. Its lightweight construction, weighing only about 0.037 pounds, makes it easy to handle and install without sacrificing strength. Designed to meet rigorous industry standards, the Wichard Marine Self-Locking Bow Shackle ensures safe, secure, and reliable performance in lifting and securing applications. Its robust construction and thoughtful design make it an excellent choice for professionals seeking dependable hardware for demanding tasks. Whether used in maritime, industrial, or construction settings, this shackle delivers consistent performance and peace of mind.

Features:

• Self-locking pin forged in grade 316L stainless steel for secure attachment

• Pin locks into one of the indentations, preventing loosening from vibrations

• High working and breaking loads suitable for heavy-duty use

• CE marked with batch number for compliance and traceability

• Designed for industrial applications requiring ample room for multiple connections
