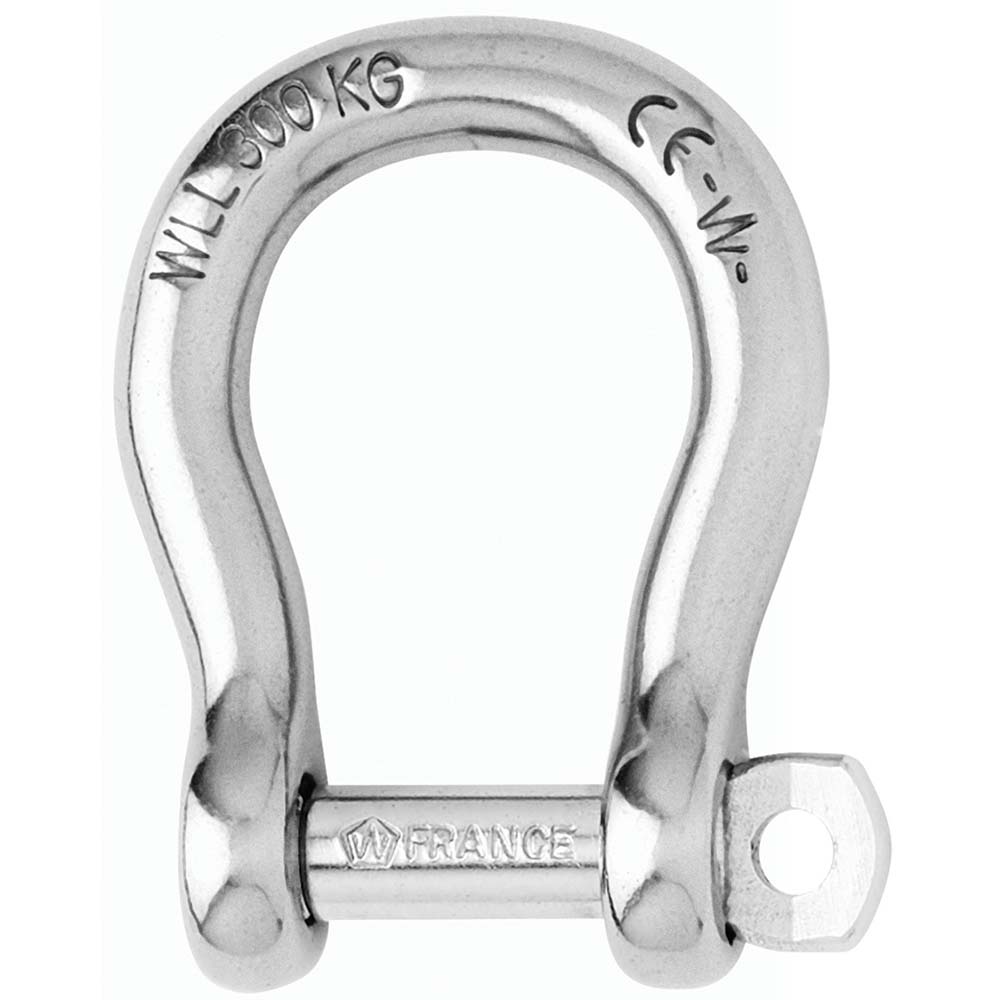

Wichard Marine Self-Locking Bow Shackle 8mm (5/16 inch) Diameter for Industrial Lifting

Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1190
• Breaking load (lb) 5950
• Weight (lb) 0.15

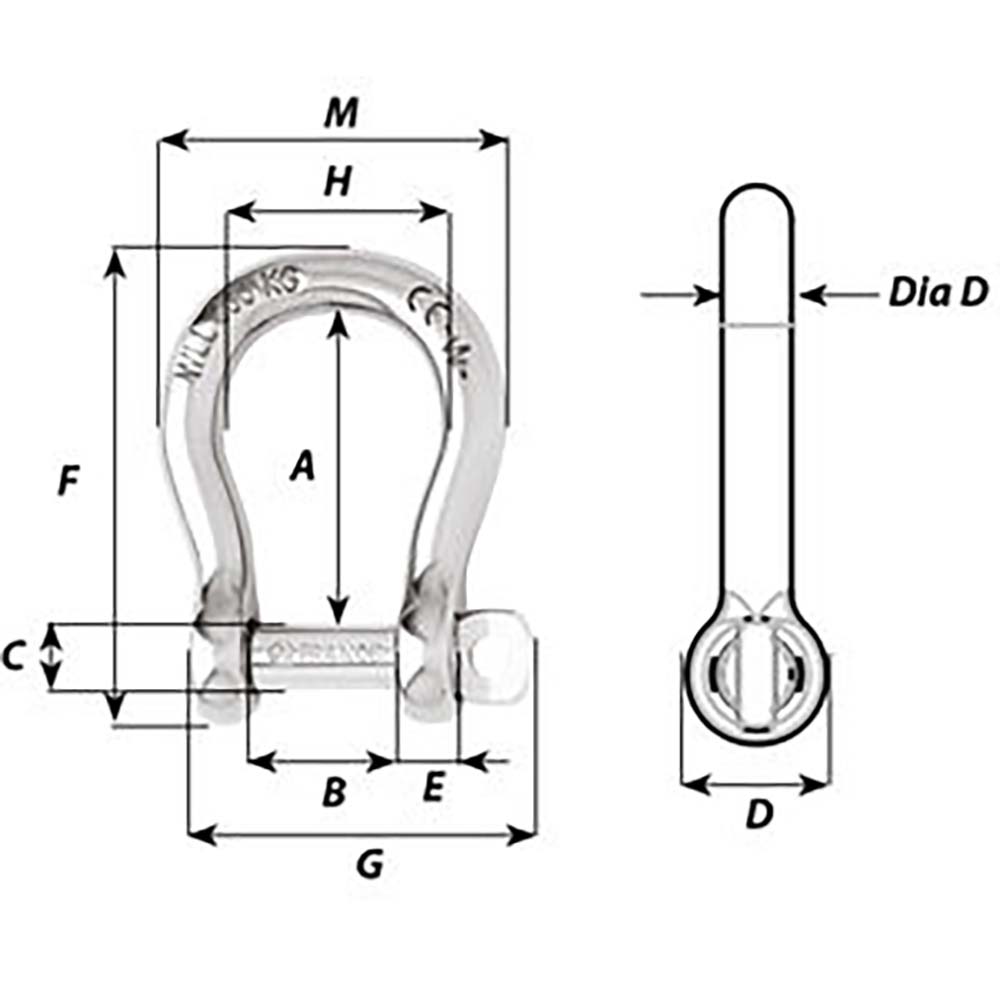

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• M (inch) 1-17/32"

The Wichard Marine Self-Locking Bow Shackle with an 8mm (5/16 inch) diameter is designed for demanding industrial lifting applications. Crafted from durable grade 316L stainless steel, this shackle offers excellent corrosion resistance and strength. Its self-locking pin securely engages into one of the indentations, eliminating the risk of loosening due to vibrations, ensuring safety and reliability during heavy-duty operations. With outstanding working and breaking loads, this shackle is ideal for situations requiring secure attachment points where ample room is needed to connect multiple lines or cables. The CE marking and batch number attest to its quality and compliance with industry standards, making it a trusted choice for professional use. Weighing approximately 0.15 pounds, it provides a robust solution without adding significant weight to your rigging setup. Whether used in marine, industrial, or construction environments, the Wichard Marine Self-Locking Bow Shackle ensures secure, vibration-proof connections with ease of installation and removal. Its versatile design and high load capacity make it suitable for a wide range of applications, from lifting heavy loads to securing equipment in challenging conditions. This shackle combines safety, durability, and convenience, making it a reliable component for demanding lifting and rigging tasks.

Features:

• Self-locking pin forged in grade 316L stainless steel for enhanced durability

• Pin locks into one of the indentations, preventing accidental loosening

• Vibration-resistant design enhances safety during dynamic operations

• Outstanding working load limit of 2,200 lbs and breaking load of 5,950 lbs

• Suitable for industrial applications such as lifting and rigging
