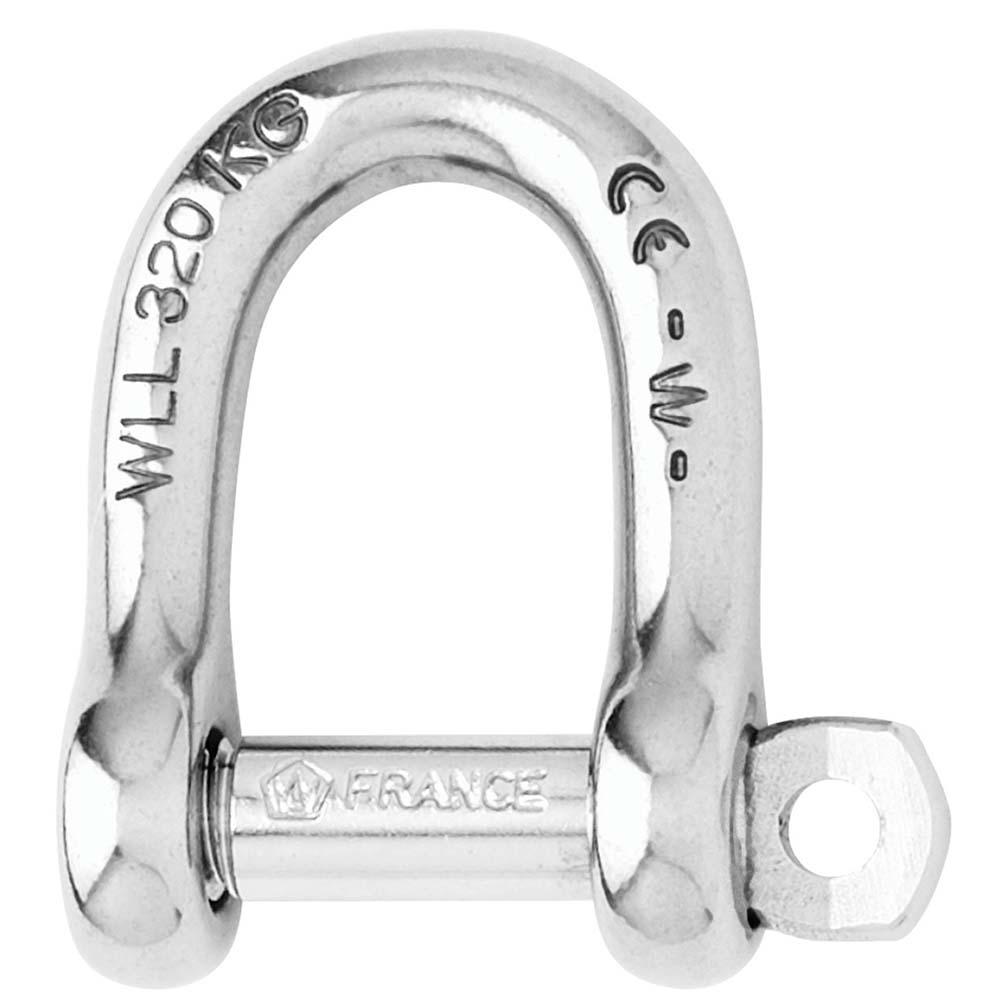

Wichard Marine Self-Locking D Shackle 10mm Diameter (Part #1205W)

Self-Locking D Shackle - Diameter 10mm - 13/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• WLL (lb) 1890
• Breaking load (lb) 9470
• Weight (lb) 0.216

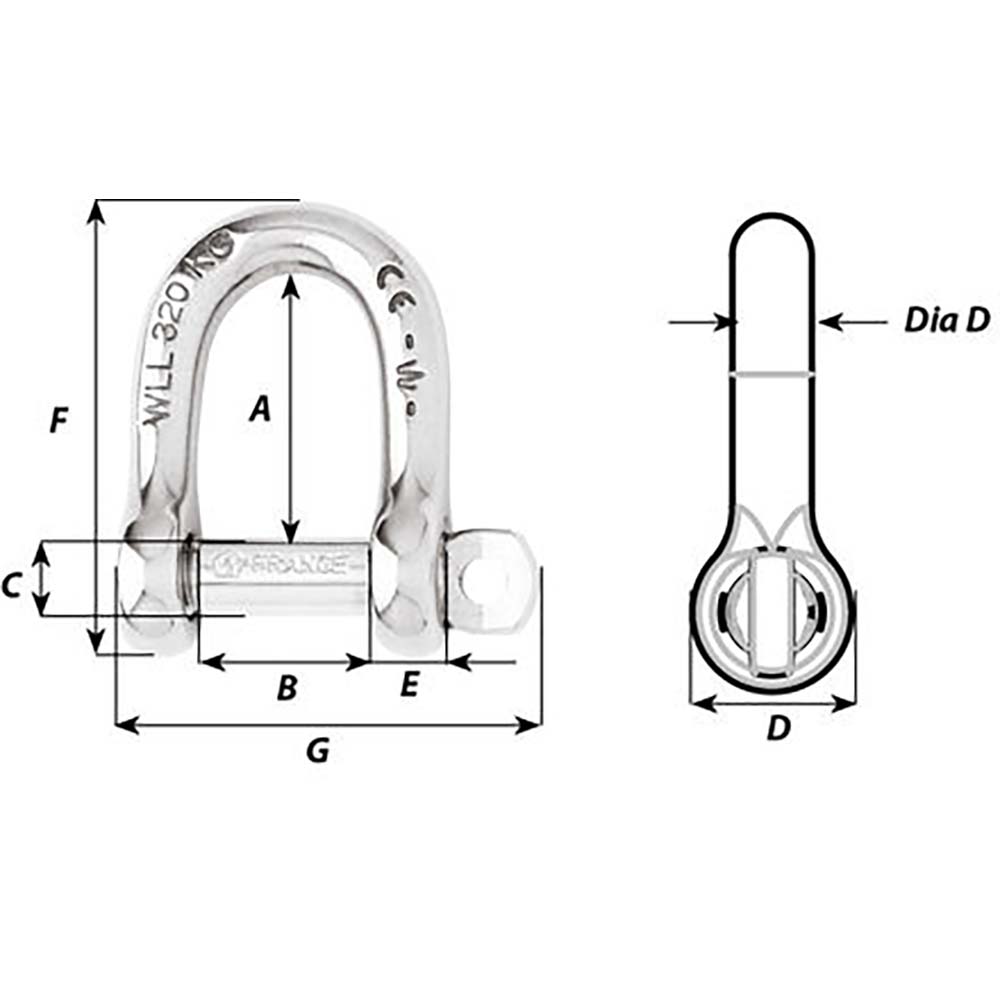

Dimensions (see 2nd image):

• A (inch) 1-19/64"
• B (inch) 25/32"
• C (inch) 25/64"
• D (inch) 3/4"
• D diameter (inch) 25/64"
• E (inch) 23/64"
• F (inch) 2-1/4"
• G (inch) 2-3/64"

The Wichard Marine Self-Locking D Shackle with a 10mm (13/32 inch) diameter offers a reliable and secure solution for industrial lifting and attachment applications. Made from high-grade 316L stainless steel, this shackle provides exceptional strength and corrosion resistance, ensuring durability in harsh marine and industrial environments. The self-locking feature ensures the pin remains securely engaged by locking into one of the indentations, eliminating the risk of loosening due to vibrations or dynamic loads. This design enhances safety and reliability during critical operations such as lifting, rigging, or securing equipment.
The shackle is engineered to handle substantial working loads, with a working load limit (WLL) of 1,890 pounds and a breaking load of 9,470 pounds, making it suitable for demanding industrial tasks. Its lightweight design, weighing just over 0.2 pounds, makes it easy to handle while maintaining robust performance. The CE marking and batch number certify compliance with European safety standards, providing additional assurance of quality.
Ideal for standard and attachment applications, including connecting blocks or heads, the Wichard Marine D Shackle is a versatile component for various lifting and securing needs. Its dimensions are optimized for compatibility with common rigging and hardware setups, with a length of approximately 1-3/4 inches and a width of about 25/32 inches. The shackle's design ensures easy installation and removal while maintaining a secure connection under load. Whether used in marine, industrial, or construction environments, this shackle offers excellent performance and safety features that meet professional standards.

Features:

• Self-locking D shackle forged in grade 316L stainless steel

• Pin locks into one of the indentations for secure engagement

• Designed to prevent loosening caused by vibrations

• Outstanding working and breaking loads for industrial use

• Suitable for lifting and attachment applications

• CE marked with batch number for quality assurance
