Wichard Marine Self-Locking D Shackle 12mm Diameter - 15/32" Pin for Industrial Lifting

Self-Locking D Shackle - 12mm Diameter - 15/32"

Features:

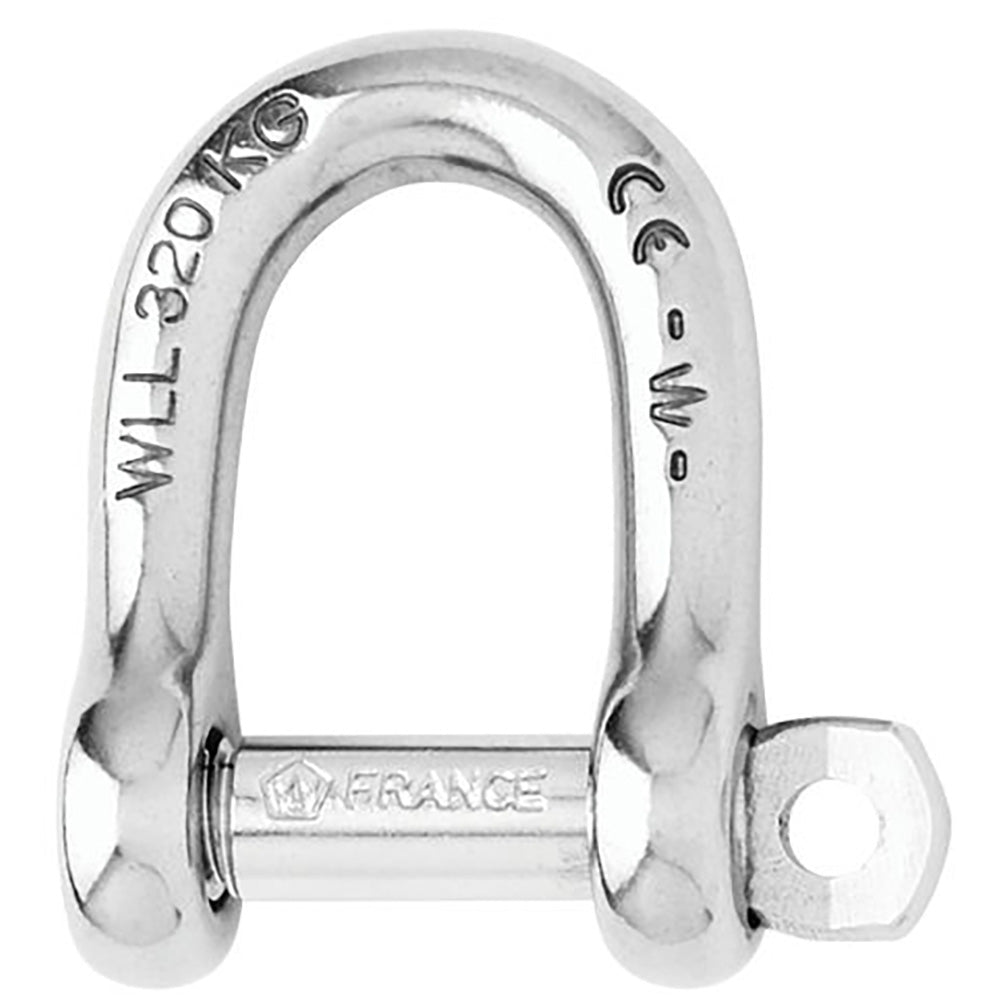

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / 1200 (kg)
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.425 / (g) 193

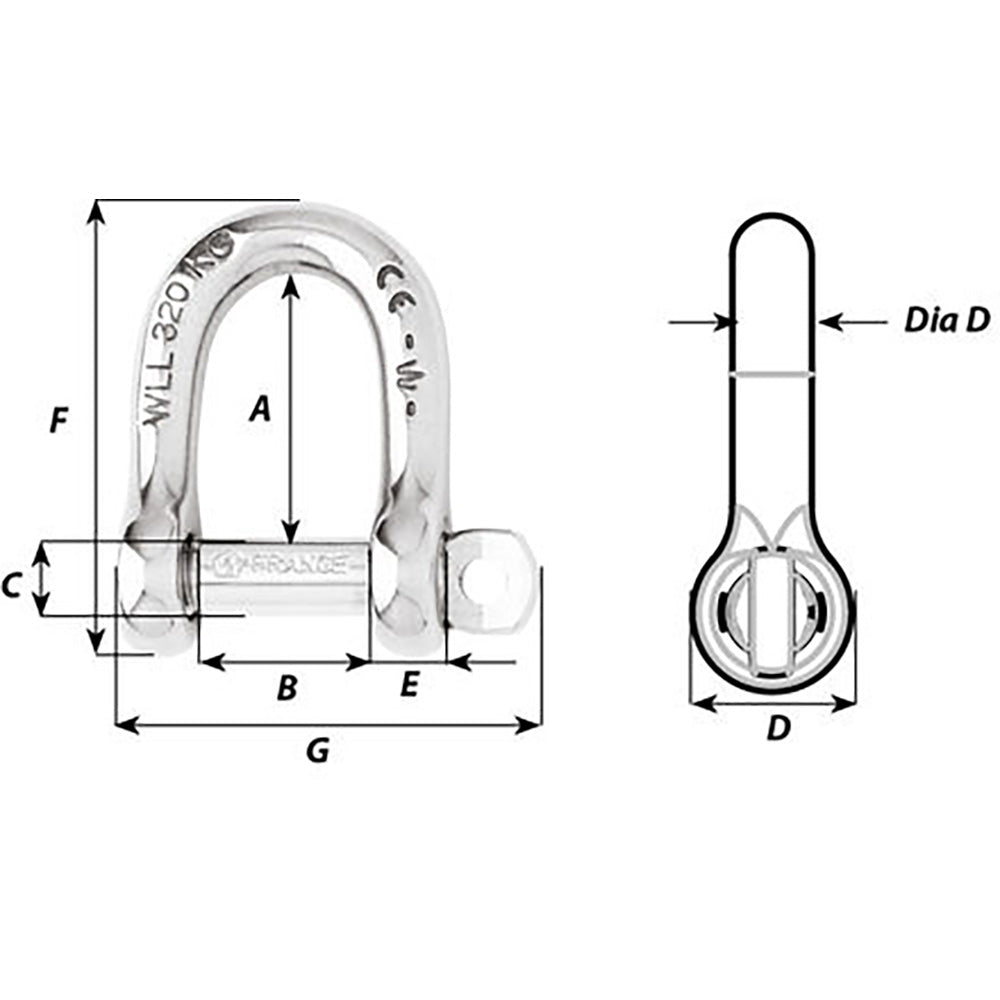

Dimensions:

• A: (inch) 1-21/32" / (mm) 42
• B: (inch) 1-1/16" / (mm) 27
• C: (inch) 15/32" / (mm) 12
• D: (inch) 15/16" / (mm) 24
• D diameter: (inch) 15/32" / (mm) 12
• E: (inch) 7/16" / (mm) 11
• F: (inch) 2-7/8" / (mm) 73
• G: (inch) 2-7/16" / (mm) 62

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking D Shackle with a 12mm (15/32 inch) diameter pin is designed for demanding industrial lifting applications. Crafted from durable grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength. Its self-locking pin is securely locked into an indentation, eliminating the risk of loosening caused by vibrations, making it ideal for rigorous environments. The shackle features outstanding working and breaking loads, ensuring reliable performance under heavy loads. It is primarily intended for industrial use, such as lifting operations, with a recommended working load limit (WLL) of 1,200 kg (2,640 lb). The breaking load exceeds 6,000 kg (13,220 lb), providing a substantial safety margin. This device bears CE marking, confirming compliance with European standards for safety and quality. The versatile design allows it to be used in various attachment scenarios, including blocks and heads, making it suitable for both fixed and mobile lifting setups. Constructed from premium stainless steel, the shackle is built to withstand harsh environments and frequent use. Its compact dimensions and robust construction make it an essential component for professional rigging and lifting operations, ensuring safety and reliability in industrial settings. Whether used on land or at sea, the Wichard Marine Self-Locking D Shackle provides a secure, durable connection for heavy-duty lifting tasks, backed by high-quality engineering and stringent safety standards.

Features:

• Self-locking pin forged from grade 316L stainless steel for corrosion resistance

• Pin secured into indentation to prevent loosening from vibrations

• High working load limit suitable for industrial lifting applications

• Exceptional breaking load for safety and reliability

• CE marked to meet European safety standards

• Versatile application for attachments such as blocks and heads
