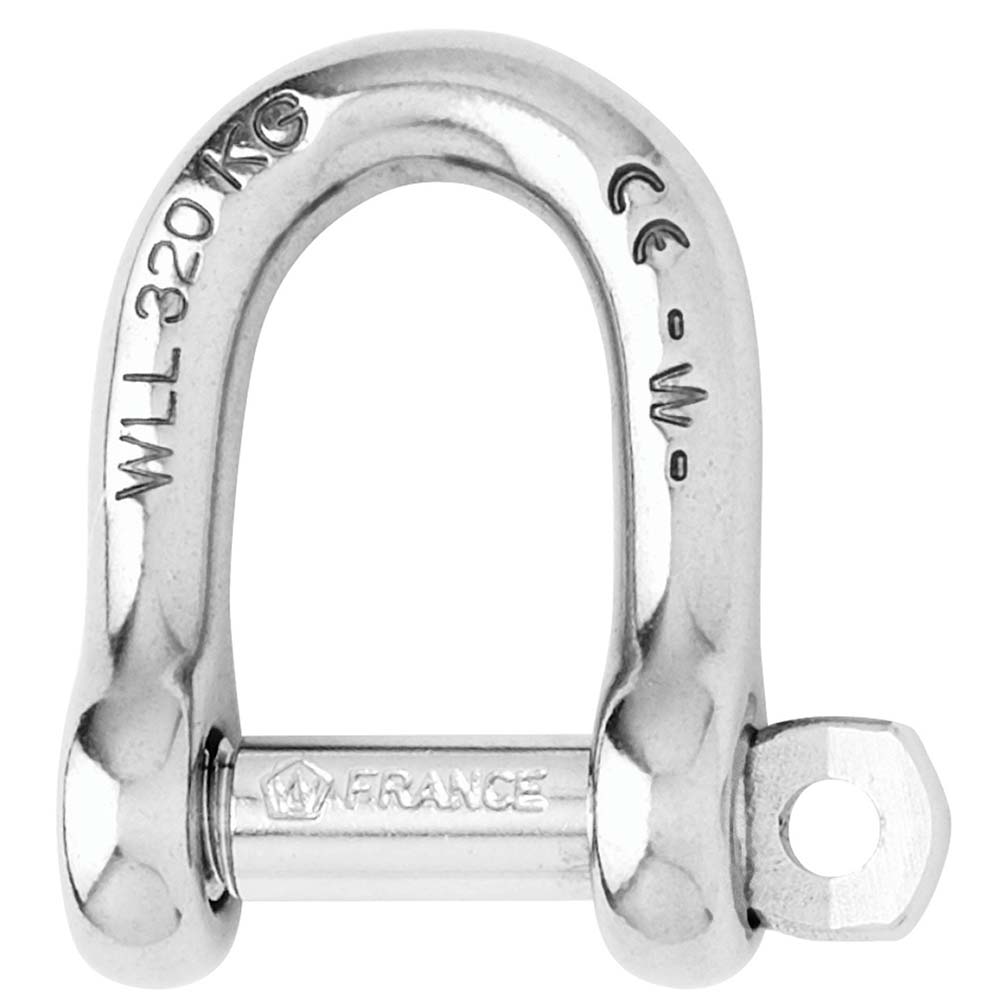

Wichard Marine Self-Locking D Shackle 4mm (5/32 inch) Diameter, Grade 316L Stainless Steel

Self-Locking D Shackle - Diameter 4mm - 5/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 300
• Breaking load (lb) 1540
• Weight (lb) 0.015

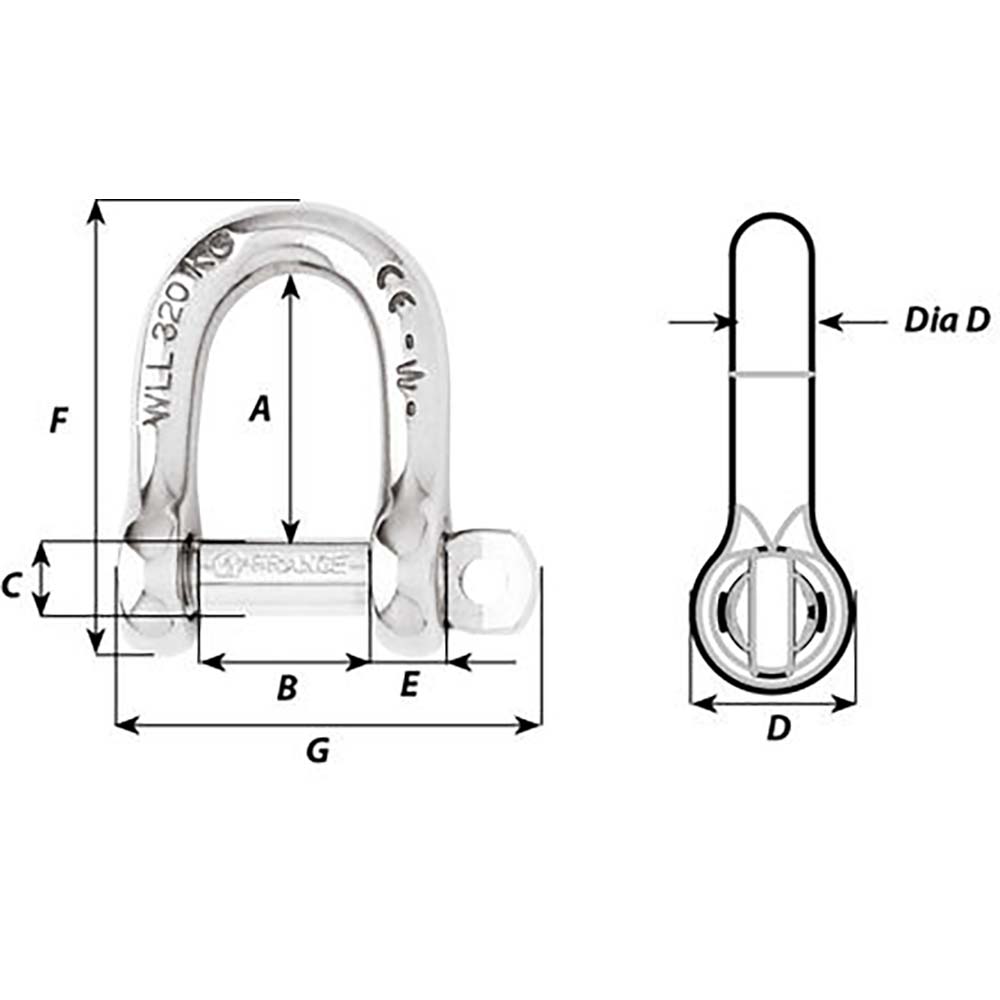

Dimensions (see 2nd image)

• A (inch) 33/64"
• B (inch) 5/16"
• C (inch) 5/32"
• D (inch) 5/16"
• D diameter (inch) 5/32"
• E (inch) 1/8"
• F (inch) 29/32"
• G (inch) 25/32"

The Wichard Marine Self-Locking D Shackle, part number 1201W, is engineered from high-grade 316L stainless steel to provide exceptional durability and corrosion resistance in demanding environments. Designed with a self-locking mechanism, the shackle's pin securely locks into one of the indentations, eliminating risks of loosening caused by vibrations and ensuring safety during heavy-duty applications. This feature makes it ideal for industrial lifting, rigging, and attachment tasks where reliability is paramount. The shackle boasts outstanding working and breaking loads, with a working load limit (WLL) of 300 pounds and a breaking load capacity of 1,540 pounds, making it suitable for various standard and attachment applications, including blocks and heads.

Measuring approximately 33/64 inches in length and 5/16 inches in width, this shackle is compact yet robust, with a lightweight design weighing only about 0.015 pounds. Its dimensions support ease of installation and secure fastening in tight spaces. The product bears CE marking and batch identification, highlighting compliance with safety standards and quality control. Whether used in marine environments or industrial setups, this versatile shackle provides dependable performance and peace of mind. Trust Wichard Marine’s expertise to deliver a reliable component suitable for demanding lifting and attachment tasks where safety and strength are critical.

Features:

• Self-locking pin forged in grade 316L stainless steel for enhanced durability

• Pin locks into one of the indentations for secure fastening

• Design prevents loosening due to vibrations, ensuring safety

• Outstanding working load and breaking load capacities for industrial use

• CE marked with batch number for quality assurance
