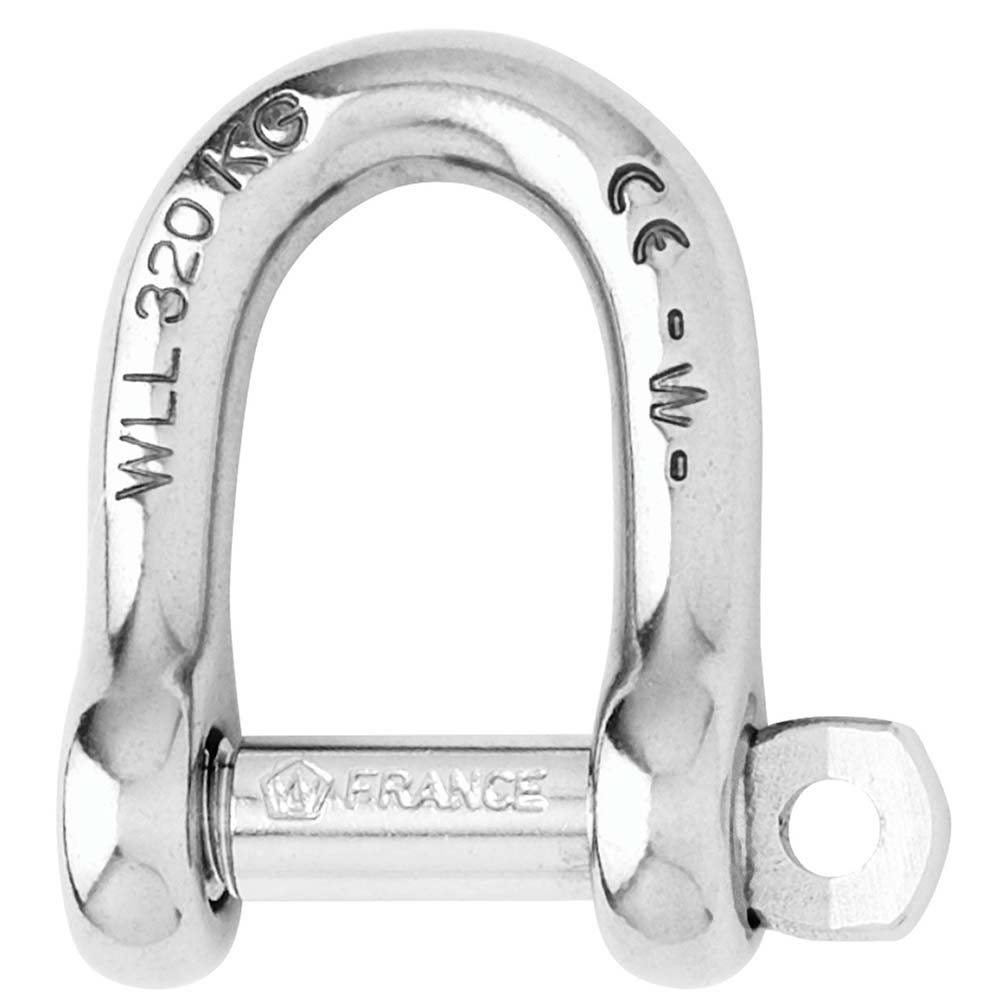

Wichard Marine Self-Locking D Shackle 5mm Diameter - Ideal for Industrial Lifting

Self-Locking D Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 300
• Breaking load (lb) 1540
• Weight (lb) 0.015

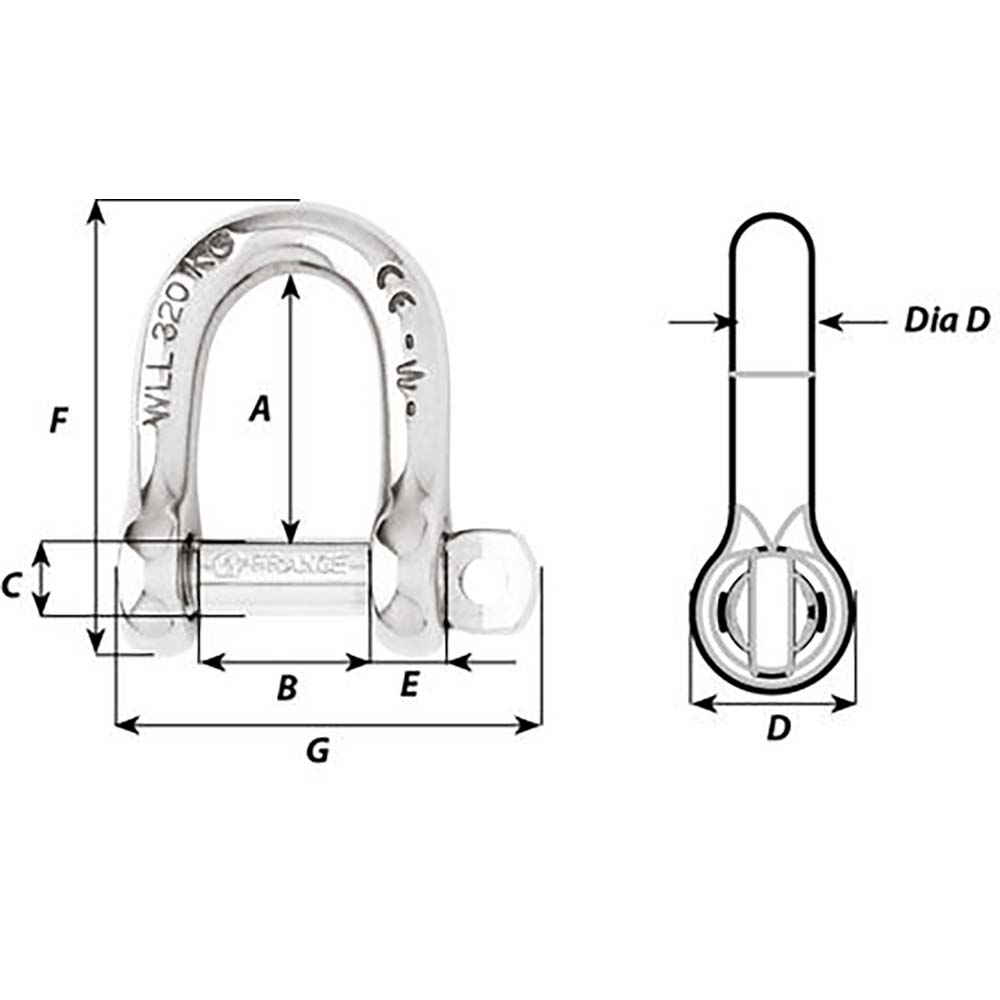

Dimensions (see 2nd image):

• A (inch) 33/64"
• B (inch) 5/16"
• C (inch) 5/32"
• D (inch) 5/16"
• D diameter (inch) 5/32"
• E (inch) 1/8"
• F (inch) 29/32"
• G (inch) 25/32"

The Wichard Marine Self-Locking D Shackle, part number 1202W, is designed for reliable industrial applications where safety and strength are paramount. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance and durability in demanding environments. Its self-locking pin mechanism ensures the pin remains securely engaged, locking into one of the indentations to prevent accidental loosening caused by vibrations, making it suitable for lifting and attachment tasks that require utmost safety. This feature enhances operational security, reducing the risk of failure during critical operations. The shackle's outstanding working load limit of 700 pounds and breaking load capacity of 1,540 pounds provide confidence in handling heavy-duty loads, while its lightweight construction at only 0.03 pounds allows for easy handling and installation. Perfect for standard shackling and attachment applications involving blocks or heads, this versatile component is marked with CE certification and batch number for traceability and quality assurance. Its compact dimensions, including a 33/64-inch length and 5/16-inch width, make it suitable for various industrial setups without adding unnecessary bulk. Whether used in rigging, lifting, or securing equipment, the Wichard Marine Self-Locking D Shackle offers a combination of strength, security, and corrosion resistance that meets the rigorous demands of industrial environments. Trust in the proven performance of Wichard Marine's hardware for your lifting and securing needs, supported by robust specifications and strict manufacturing standards.

Features:

• Self-locking pin forged in grade 316L stainless steel for enhanced durability

• Locking pin secures into indentations to prevent loosening due to vibrations

• High working load limit of 700 pounds and breaking load of 1,540 pounds

• Lightweight design weighing only 0.03 pounds for easy handling

• CE marking and batch number ensure quality and traceability

• Suitable for standard shackling and attachment applications such as blocks and heads
