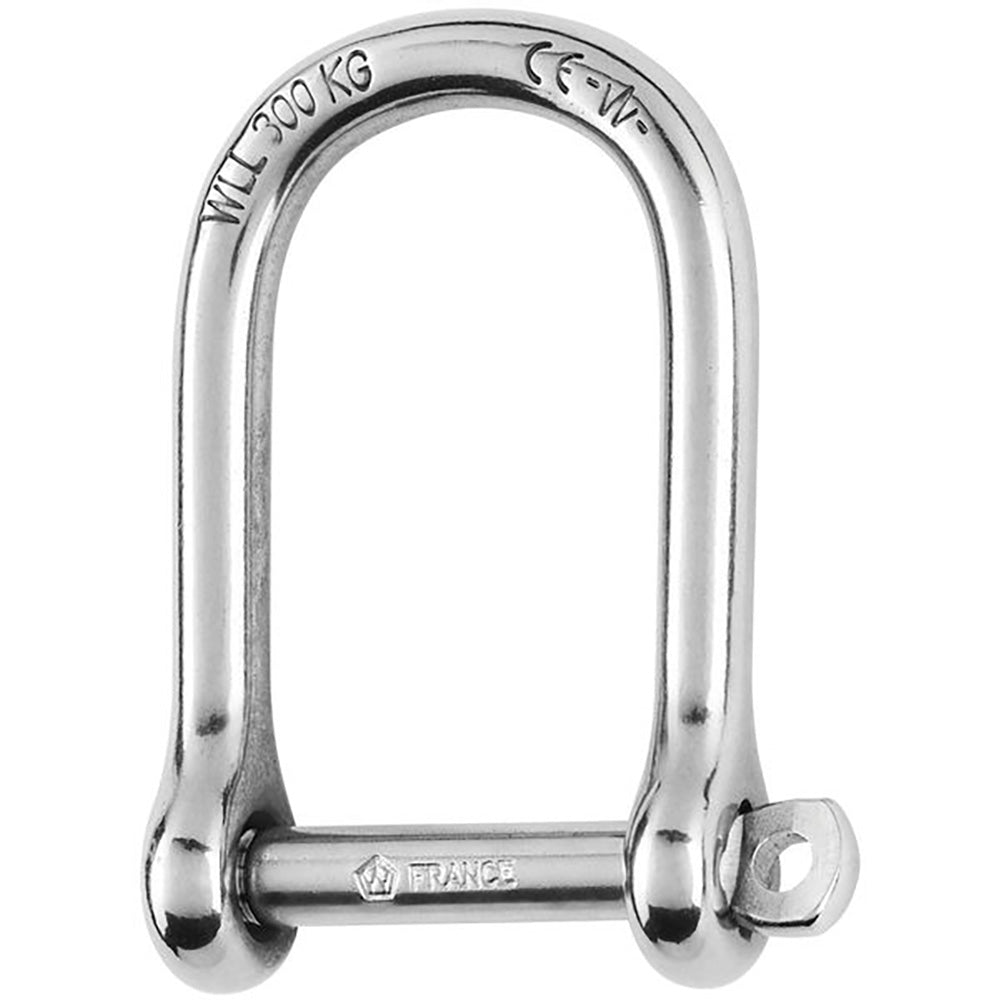

Wichard Marine Self-Locking Large Opening Shackle 10mm Diameter - Heavy Duty Stainless Steel

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• WLL: (lb) 1760 / (kg) 800
• Breaking load: (lb) 8810 / (kg) 4000
• Weight: (lb) 0.28 / (kg) 4000

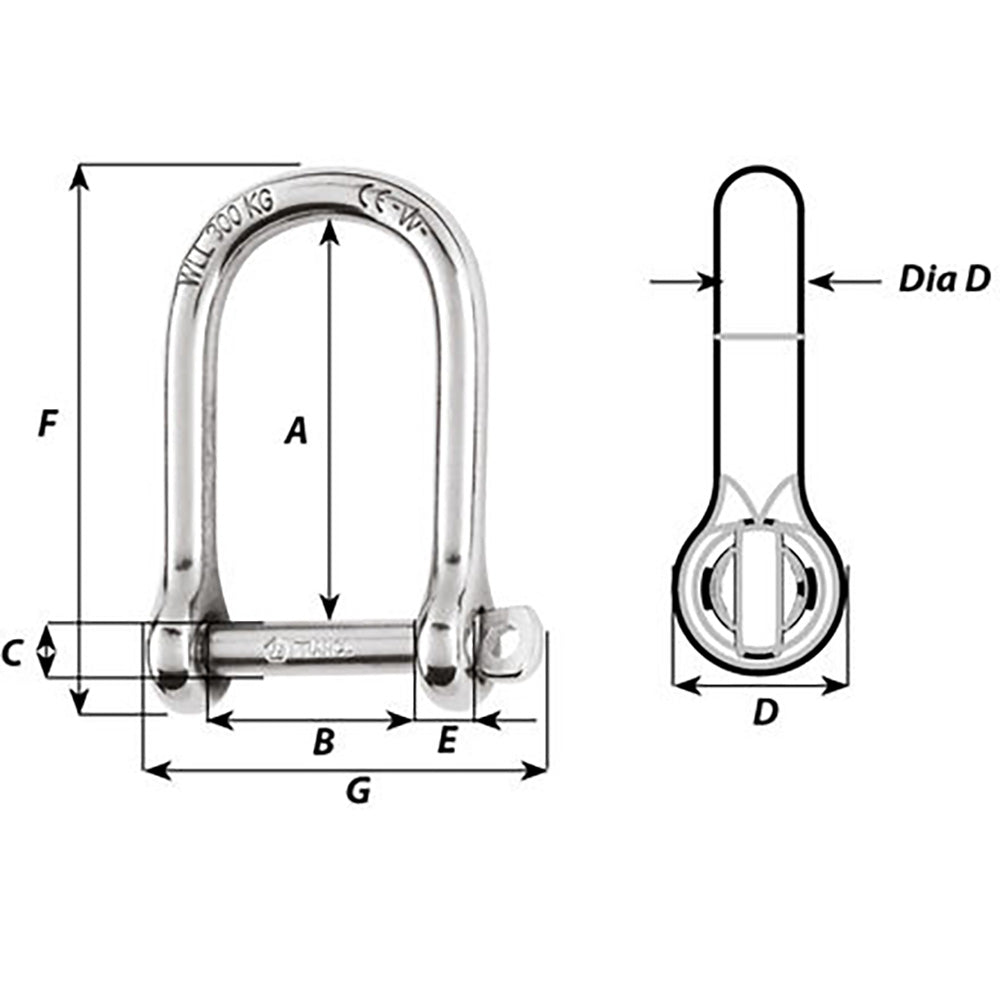

Dimensions:

• A: (inch) 2 53/64" / (mm) 72
• B: (inch) 1 37/64" / (mm) 40
• C; (inch) 25/64" / (mm) 10
• D: (inch) 53/64" / (mm) 21
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 25/64" / (mm) 10
• G: (inch) 2 51/64" / (mm) 71

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Large Opening Shackle, part number 1265W, is engineered for demanding industrial and marine applications. Crafted from durable grade 316L stainless steel, this shackle features a self-locking mechanism that ensures secure fastening without the risk of loosening due to vibrations. The design incorporates a large opening to accommodate a variety of lifting and securing tasks, making it an essential tool for heavy-duty environments. The pin locks into one of the indentations, providing a reliable and tamper-proof connection that maintains integrity under stress. With outstanding working and breaking loads, this shackle is built to handle substantial loads while maintaining safety and performance. The working load limit (WLL) is rated at 1,280 pounds, with a breaking load capacity of up to 4,000 pounds, ensuring safe operation within industrial parameters. The unit is CE marked, confirming compliance with relevant safety standards, and is ideal for applications requiring a large opening shackle with dependable locking features. Its robust construction and high load capacities make it suitable for use in lifting, rigging, and securing operations where safety and durability are paramount. The shackle's dimensions provide a large throat opening, making it versatile for various rigging setups, while its compact weight allows for easy handling and installation. This self-locking shackle is sold individually and is designed for professional use, offering a reliable solution for demanding industrial and marine environments. Proper selection and use of this shackle ensure safety and efficiency in your lifting and securing tasks, backed by high-quality materials and engineering excellence from Wichard Marine.

Features:

• Self-locking large shackle forged in grade 316L stainless steel for corrosion resistance and durability

• Pin locks securely into one of the indentations to prevent loosening caused by vibrations

• Designed with outstanding working and breaking loads for heavy-duty applications

• Rated for industrial use with a working load limit of 1,280 pounds and breaking load of 4,000 pounds

• CE marked to ensure compliance with safety standards suitable for lifting and securing tasks
