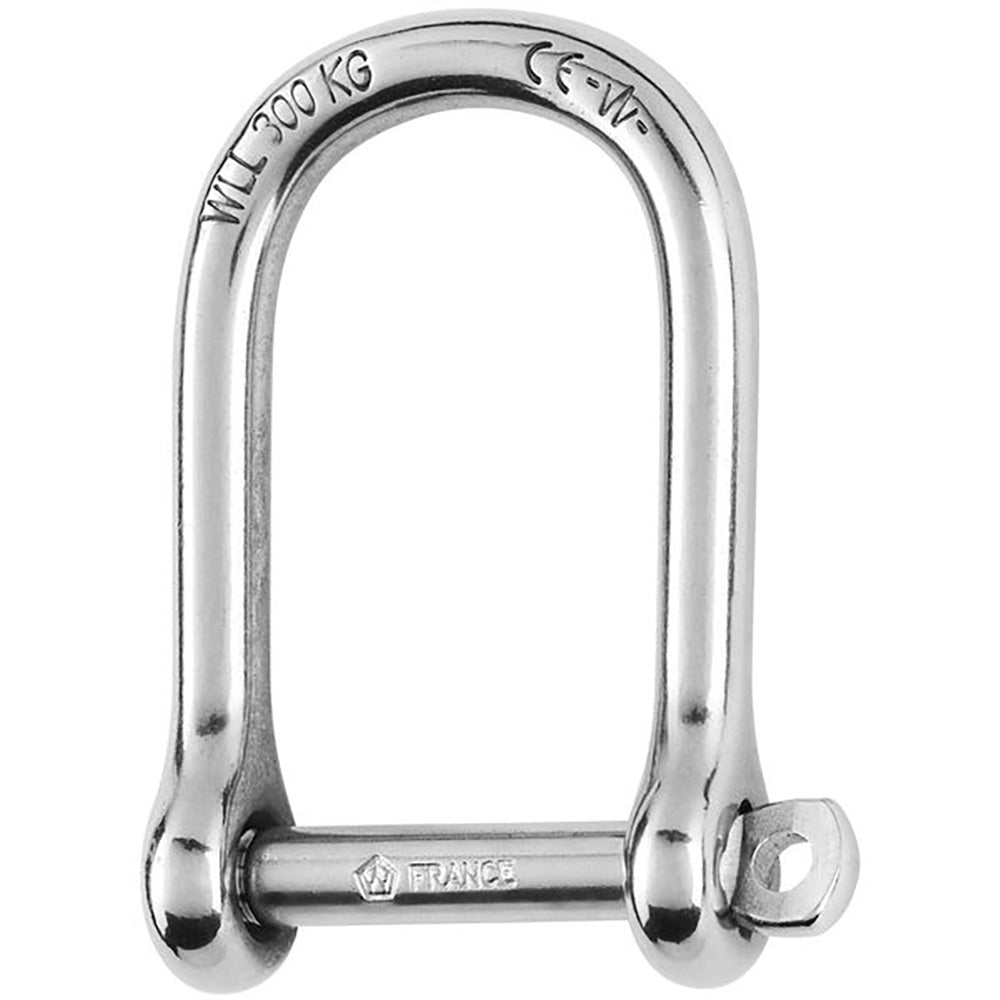

Wichard Marine Self-Locking Large Opening Shackle 6mm Diameter - 1/4 Inch

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials 316 stainless steel grade
• Working load: (lb) 990 / (kg) 450
• WLL: (lb) 660 / (kg) 300
• Breaking load: (lb) 3300 / (kg) 1500
• Weight: (lb) 0.06 / (g) 27

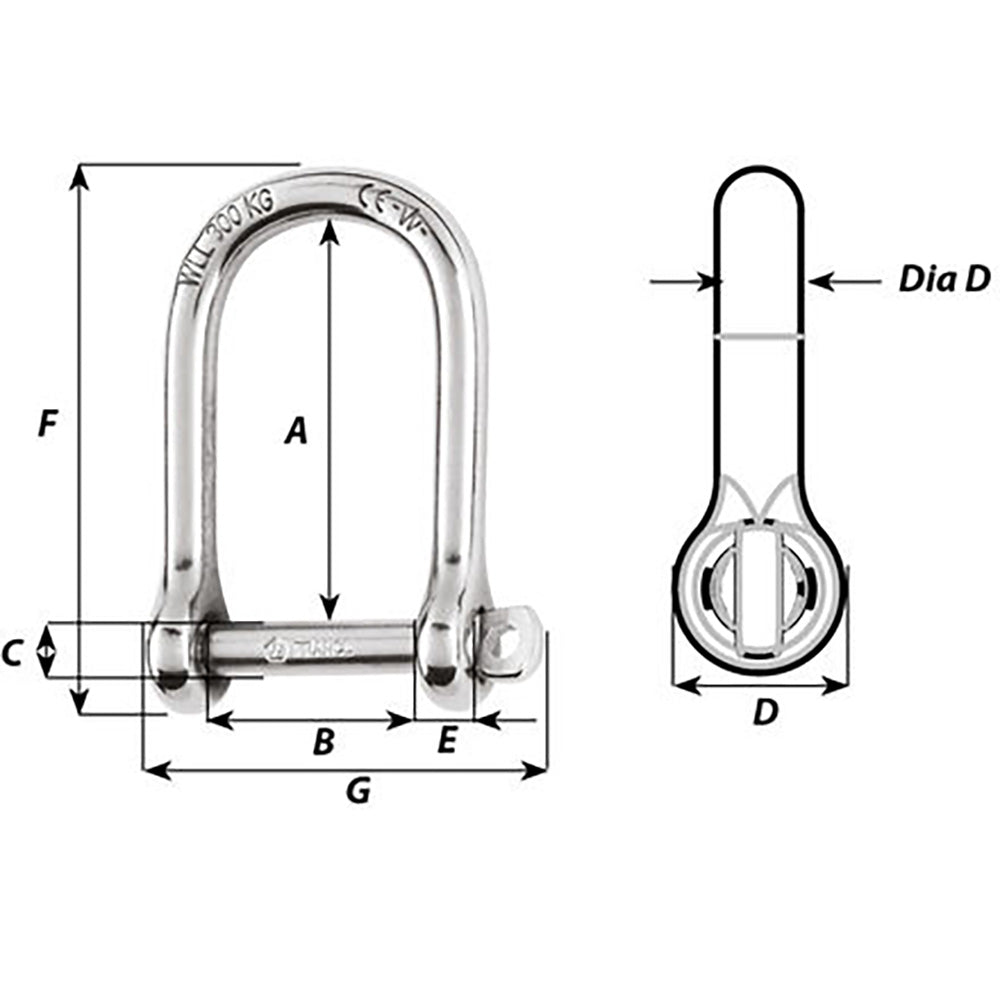

Dimensions:

• A: (inch) 1 21/32" / (mm) 42
• B: (inch) 1 / (mm) 25.5
• C: (inch) 15/64" / (mm) 6
• D: (inch) 35/64" / (mm) 14
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 15/64" / (mm) 6
• F: (inch) 2 9/32" / (mm) 58
• G: (inch) 1 47/64" / (mm) 44

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Large Opening Shackle, part number 1263W, is crafted from high-grade 316L stainless steel, offering exceptional durability and corrosion resistance for demanding industrial and marine applications. Its self-locking mechanism ensures the pin remains securely in place by locking into one of the indentations, eliminating the risk of loosening due to vibrations and providing reliable safety during use. With outstanding working and breaking loads, this shackle is designed to handle heavy-duty tasks where a large opening is essential, such as lifting, rigging, or securing heavy loads. The shackle’s robust construction and CE marking attest to its quality and compliance with industry standards, making it suitable for professional environments requiring dependable hardware.

Its dimensions and design facilitate easy installation and operation, with a working load limit (WLL) of 660 pounds and a breaking load of 3,300 pounds. The shackle weighs approximately 0.6 ounces and features a large opening for versatility. The device is designed for industrial applications, with safety factors built into its specifications, ensuring safe operation under maximum loads. This product is sold as an individual piece and is ideal for use where a secure, large-opening shackle is needed for lifting, securing, or rigging tasks in challenging environments.

Constructed from durable stainless steel, the Wichard Marine shackle combines strength, reliability, and corrosion resistance, making it an essential component for maritime, industrial, and heavy-duty lifting needs. Its self-locking feature provides peace of mind during operation, reducing the need for additional locking mechanisms or safety checks. Whether used in nautical settings or industrial environments, this large opening shackle is engineered to perform efficiently and safely under demanding conditions.

Features:

• Self-locking mechanism: Ensures the pin remains securely locked into one of the indentations, preventing loosening due to vibrations

• Material: Forged from grade 316L stainless steel for superior corrosion resistance and durability

• High load capacity: Designed with outstanding working and breaking loads suitable for heavy-duty applications

• Large opening: Facilitates easy attachment and flexibility in various lifting and rigging scenarios

• CE marked: Certified to meet industry standards for safety and performance

• Designed for industrial use: With a WLL of 660 pounds and a breaking load of 3,300 pounds

• Compact weight: Weighs approximately 0.6 ounces for easy handling and installation
