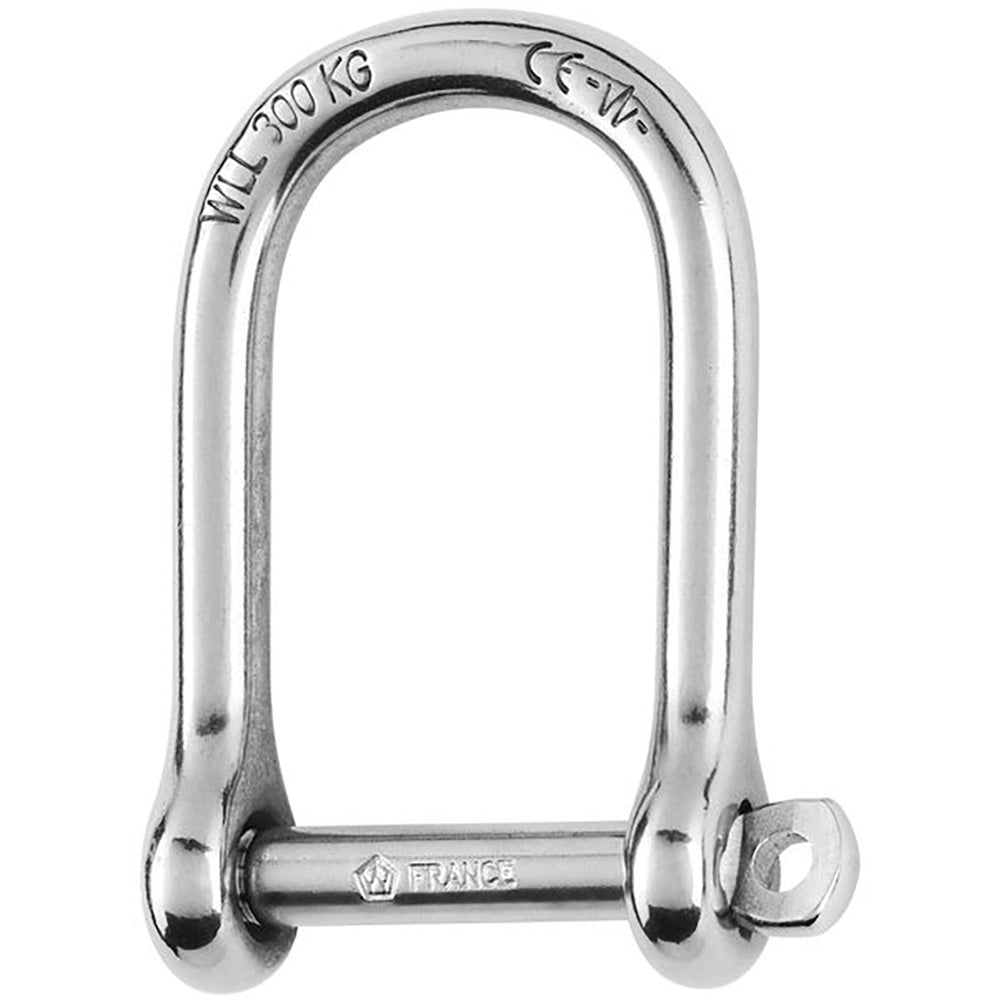

Wichard Marine Self-Locking Large Opening Shackle 8mm Diameter (Part #1264W)

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 1780 / (kg) 810
• WLL: (lb) 1190 / (kg) 540
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.148 / (g) 67

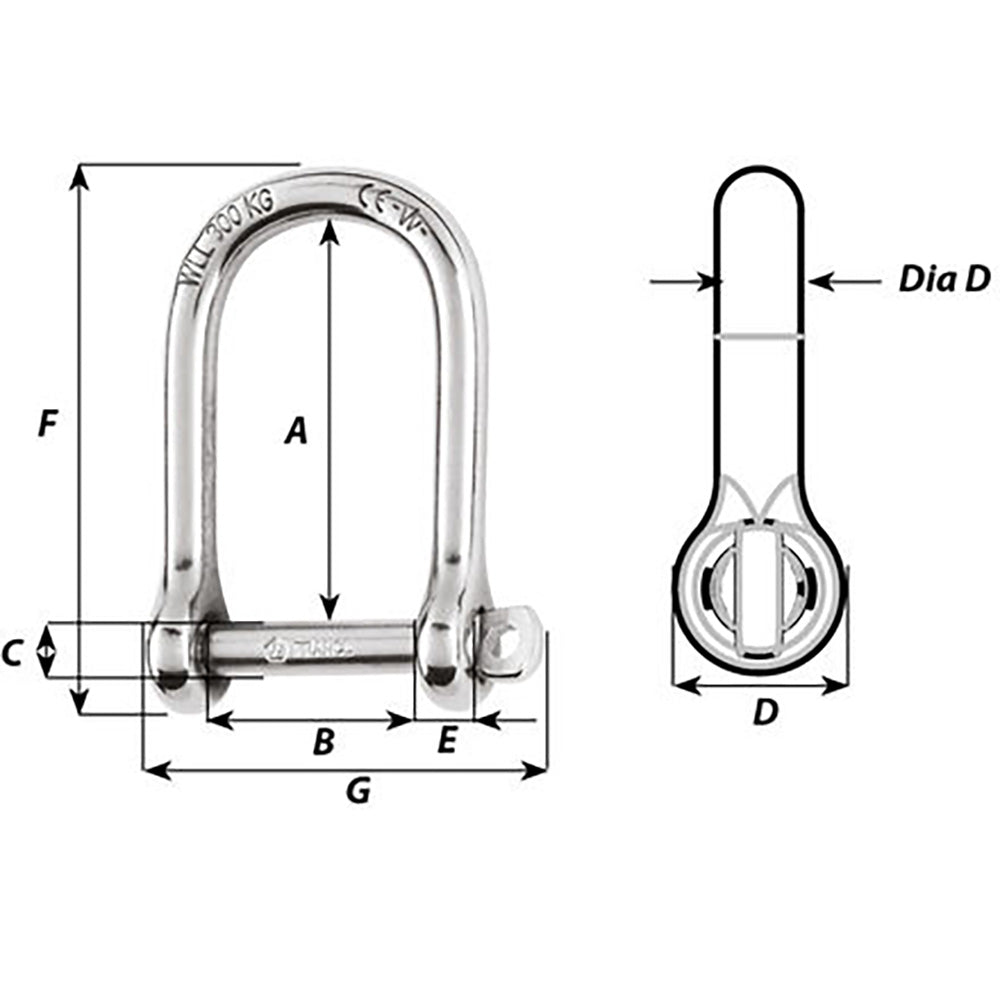

Dimensions:

• A: (inch) 2 1/4" / (mm) 57
• B: (inch) 1 17/64" / (mm) 32
• C: (inch) 5/16" / (mm) 8
• D: (inch) 43/64" / (mm) 17
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 5/16" / (mm) 8
• F: (inch) 3 1/32" / (mm) 77
• G: (inch) 2 1/4" / (mm) 57

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Large Opening Shackle is crafted from high-grade 316L stainless steel, ensuring superior corrosion resistance and durability in demanding environments. Its large opening design makes it suitable for various industrial and nautical applications where a secure and reliable connection is essential. The shackle features a self-locking mechanism where the pin is engaged into one of the indented locking positions, eliminating the risk of loosening caused by vibrations, which enhances safety during operation. With outstanding working and breaking loads, this shackle provides a robust solution for lifting and securing tasks, with a working load limit (WLL) of 540 pounds and a breaking load of 2,700 pounds, making it suitable for heavy-duty industrial use. The design incorporates a CE marking, indicating compliance with European safety standards, and is sold as an individual piece for easy integration into your equipment or rigging setup. Its construction ensures reliable performance in harsh conditions, whether on ships, construction sites, or other industrial environments. The dimensions are optimized for practical handling and installation, featuring a 2 1/4-inch length and a 5/16-inch shackle pin diameter, with a weight of approximately 0.33 pounds. This shackle is an essential component for applications requiring a large opening shackle with high strength and security. It is particularly well-suited for nautical applications with a working load limit designed explicitly for marine environments, while also meeting industrial lifting safety requirements with a safety factor of five times the WLL. Whether for securing cargo, rigging, or lifting operations, the Wichard Marine Self-Locking Shackle provides a dependable, durable, and safety-compliant solution that meets professional standards.

Features:

• Self-locking mechanism with pin engaged into one of the indentations for enhanced safety

• Forged from durable grade 316L stainless steel for corrosion resistance

• Outstanding working and breaking loads suitable for heavy-duty applications

• Designed with a large opening for versatile use in industrial and nautical environments

• CE marked for compliance with European safety standards

• Safe working load limit (WLL): 540 pounds, with a breaking load of 2,700 pounds

• Compact design with a weight of approximately 0.33 pounds for easy handling and installation
