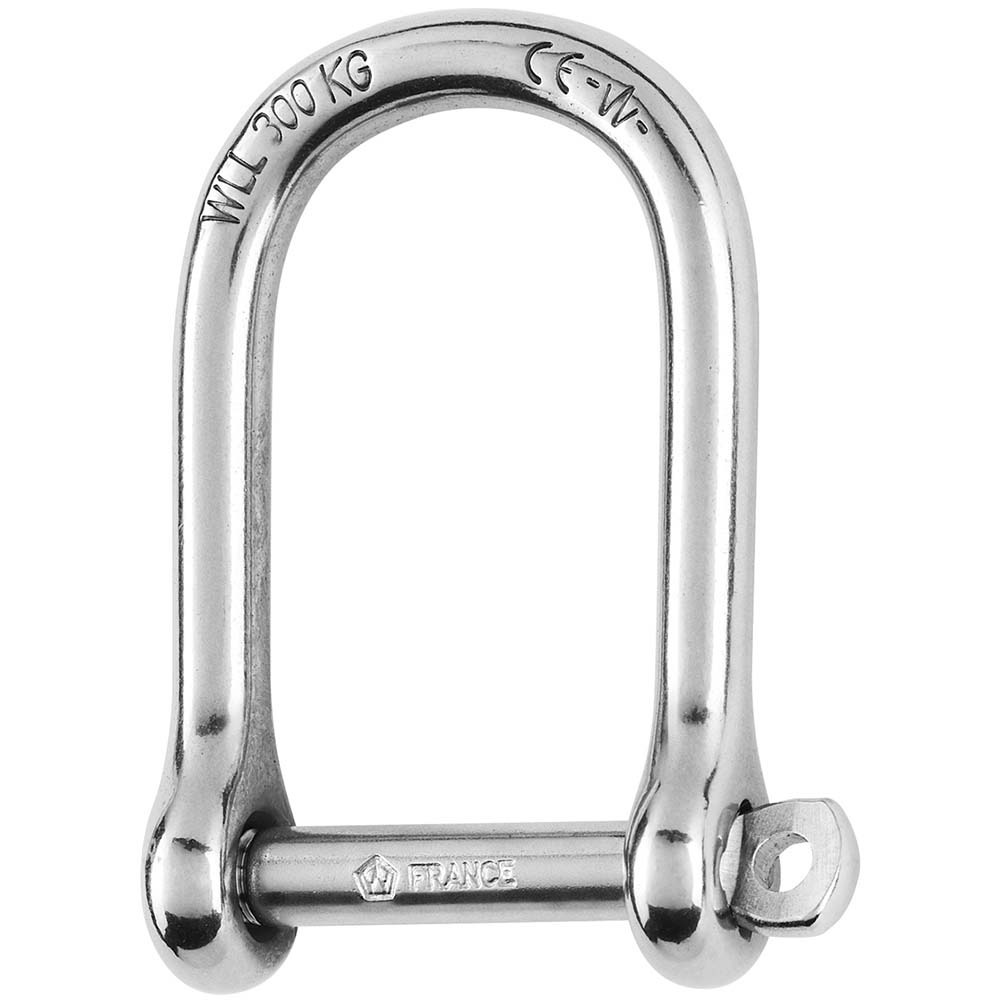

Wichard Marine Self-Locking Large Shackle 3/16 inch Diameter - Grade 316L Stainless Steel

Self-Locking Large Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 550
• WLL (lb) 480
• Breaking load (lb) 2420
• Weight (lb) 0.035

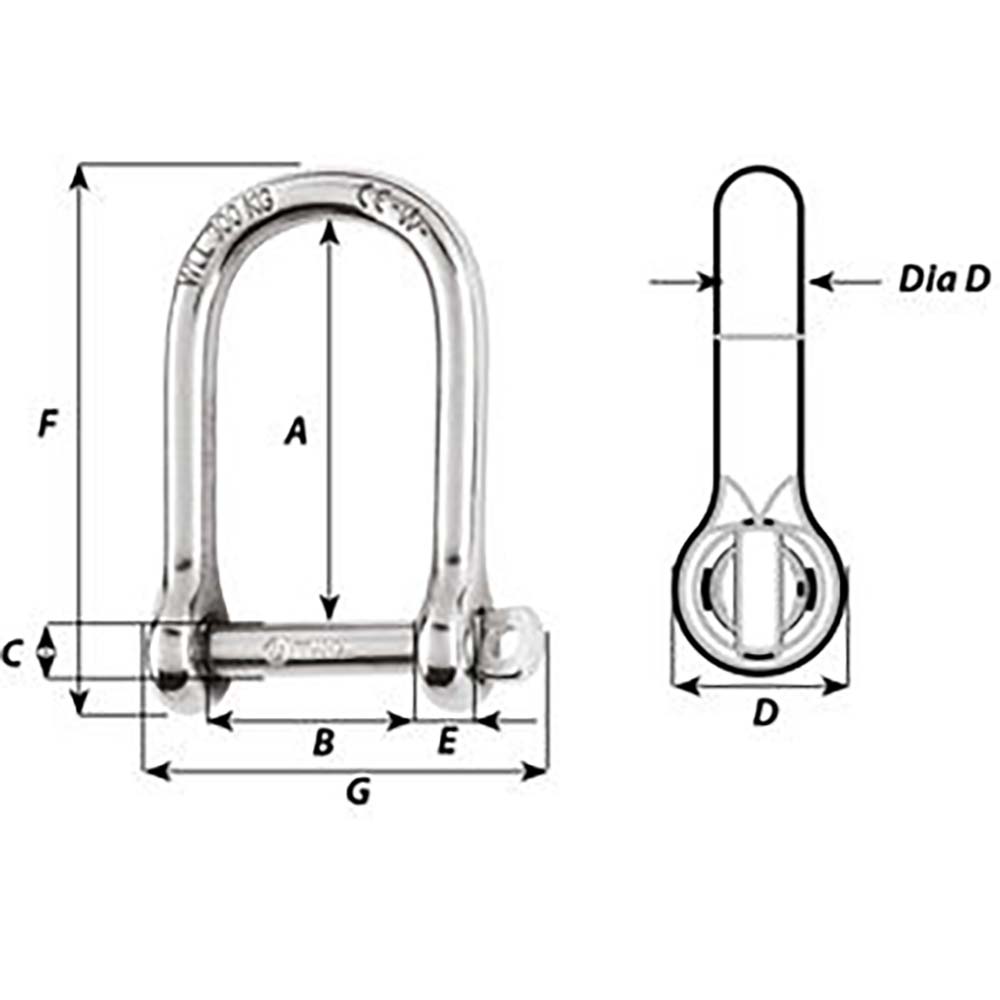

Dimensions (see 2nd image):

• A (inch) 1-27/64"
• B (inch) 25/32"
• C (inch) 13/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 1-57/64"
• G (inch) 1-3/8"

The Wichard Marine Self-Locking Large Shackle, part number 1262W, is engineered for demanding industrial applications requiring a robust and secure connection. Crafted from high-grade 316L stainless steel, this shackle offers excellent corrosion resistance and durability in harsh environments. Its self-locking mechanism features a pin that locks into one of the indentations, eliminating the risk of loosening caused by vibrations and ensuring safety during operation. With outstanding working and breaking loads, this shackle is suitable for lifting and heavy-duty industrial tasks where reliability is critical. The design incorporates a large opening for versatile use, making it ideal in situations where a substantial clearance is necessary. Suitable for applications such as lifting, rigging, and marine operations, it combines strength with ease of use, thanks to its secure locking feature and sturdy construction. The shackle’s CE marking and batch number provide additional assurance of quality and compliance with industry standards. Its lightweight design, weighing approximately 0.07 pounds, allows for easy handling without compromising strength. The dimensions, including a length of approximately 1-27/64 inches and a width of 25/32 inch, make it suitable for various industrial and marine setups. Whether you need a reliable component for lifting or securing heavy loads, the Wichard Marine Self-Locking Large Shackle delivers performance and safety in a compact, corrosion-resistant package.

Features:

• Self-locking mechanism with pin locking into indentations for secure fastening

• Made from durable grade 316L stainless steel for excellent corrosion resistance

• Designed with a large opening for versatile application needs

• Outstanding working and breaking load capacities suitable for heavy-duty use

• CE marked with batch number for quality assurance and compliance

• Lightweight design at approximately 0.07 pounds for ease of handling
