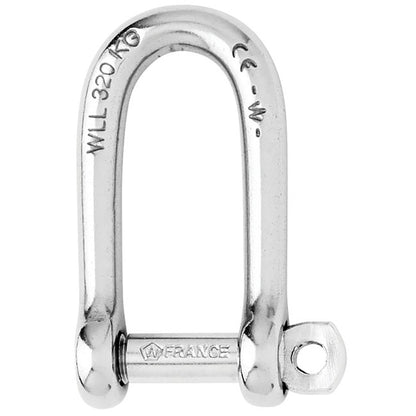

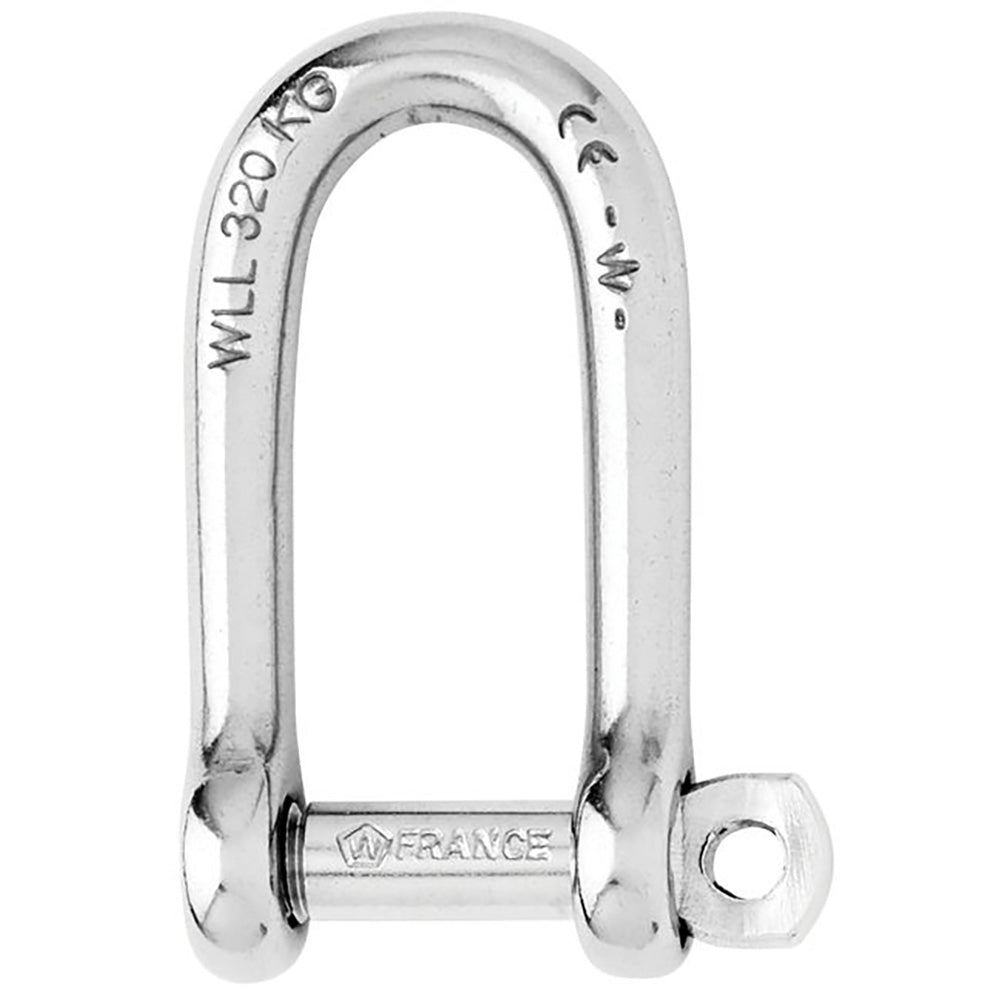

Wichard Marine Self-Locking Long D Shackle 10mm Diameter (Part Number 1215W)

Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3350 / (kg) 1520
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.282 / (kg) 4300

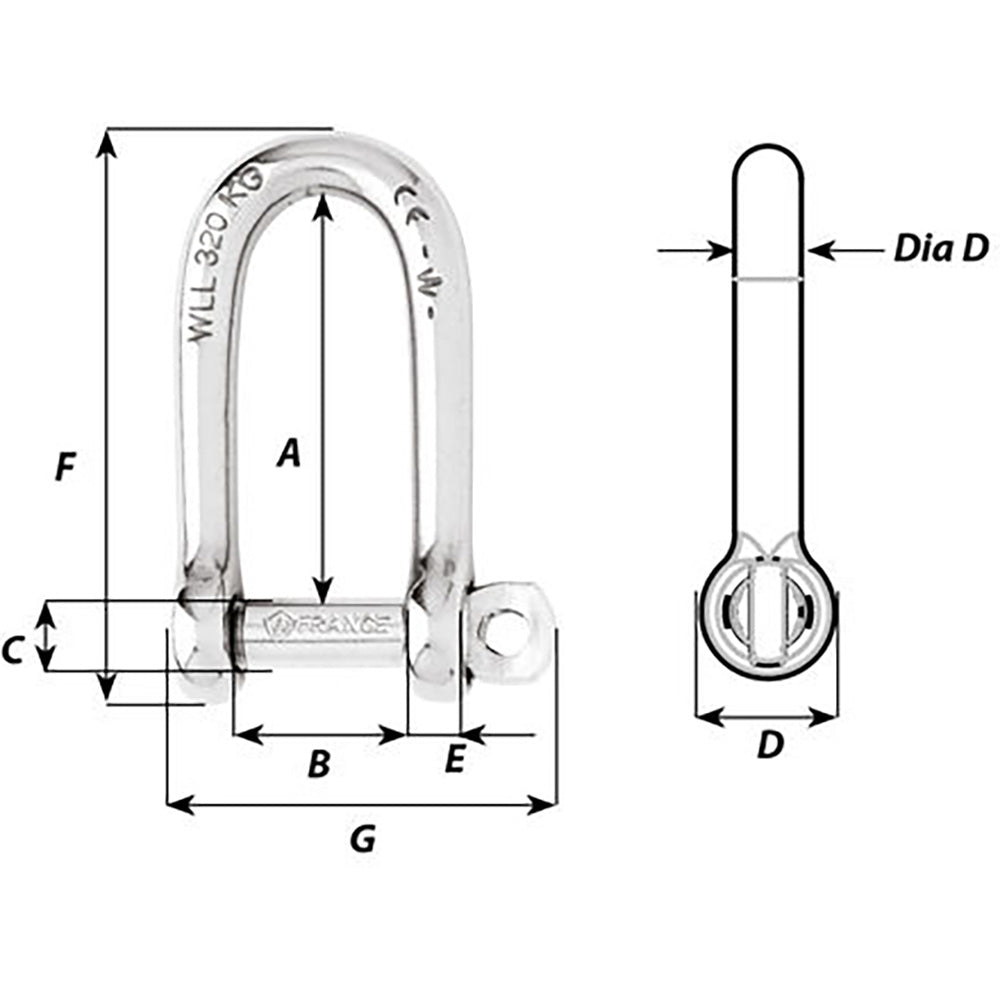

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 3/4" / (mm) 19
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• G: (inch) 3 7/64" / (mm) 79
• H: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Self-Locking Long D Shackle, featuring a 10mm (13/32 inch) diameter, is engineered from high-grade 316L stainless steel for exceptional durability and corrosion resistance. This shackle's self-locking pin securely engages into indentations, eliminating the risk of loosening due to vibrations, making it ideal for demanding industrial applications. With outstanding working and breaking loads, it provides reliable performance in heavy-duty lifting and attachment tasks. The shackle is designed to handle a working load limit (WLL) of 860 pounds and a breaking load of 4,300 pounds, ensuring safety and strength for various demanding uses. The CE marking signifies compliance with European safety standards, reinforcing its suitability for professional environments. Its compact yet robust design makes it suitable for standard applications requiring additional length and attachment points such as blocks, heads, or other marine and industrial equipment. The product is sold individually and is perfect for applications where secure, resilient connections are essential, especially in nautical and industrial settings. The robust construction and precise manufacturing make the Wichard Marine Self-Locking Long D Shackle a dependable choice for professionals seeking safety and performance in demanding environments.

Features:

• Self-locking D shackle forged in grade 316L stainless steel for corrosion resistance

• The pin is locked into one of the indentations, preventing loosening due to vibrations

• Outstanding working and breaking loads suitable for industrial applications

• CE marked for compliance with European safety standards

• Designed for standard and attachment applications such as blocks and heads
