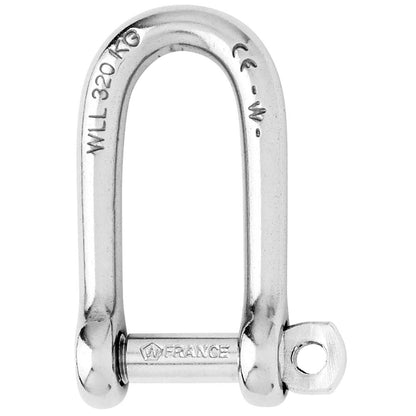

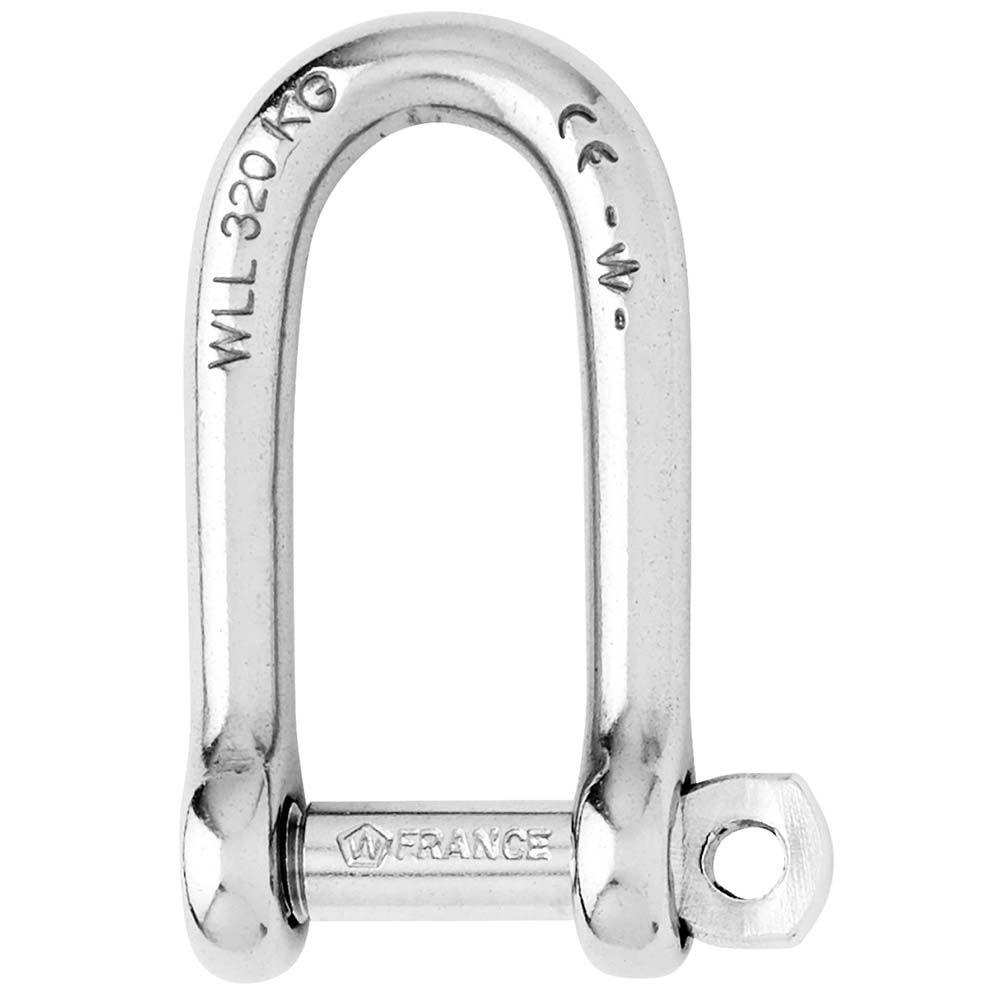

Wichard Marine Self-Locking Long D Shackle - 5mm Diameter, 3/16 inch Locking Pin

Self-Locking Long D Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 880
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.037

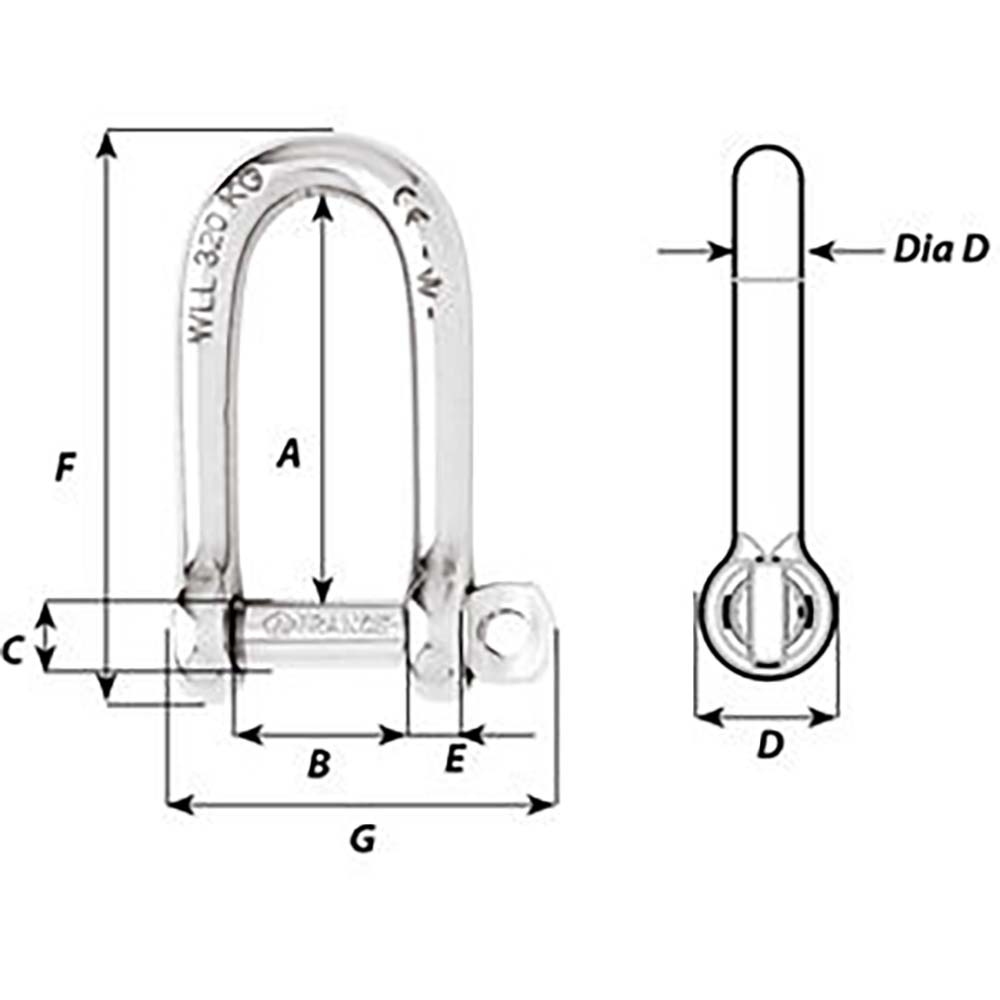

Dimensions (see 2nd image):

• A (inch) 1-9/64"
• B (inch) 25/64"
• C (inch) 13/64"
• D (inch) 25/64"
• D diameter (inch) 13/64"
• E (inch) 5/32"
• F (inch) 1-39/64"
• G (inch) 1-1/32"

The Wichard Marine Self-Locking Long D Shackle, part number 1212W, is engineered for demanding industrial applications requiring reliable secure attachment with added length. Crafted from premium grade 316L stainless steel, this shackle provides exceptional corrosion resistance and durability in harsh environments. Its self-locking mechanism ensures the pin is securely engaged into one of the indentations, eliminating the risk of loosening caused by vibrations during operation. This feature enhances safety and reliability in critical lifting, rigging, or attachment tasks, making it suitable for both marine and industrial use. The shackle boasts outstanding working and breaking loads, with a working load limit of 440 pounds, a breaking load of 2200 pounds, and a safe working load of 880 pounds, ensuring it can handle heavy-duty applications with confidence. The design includes a diameter of 5mm (3/16 inch), with dimensions carefully engineered to accommodate various standard and specialized attachment points. The lightweight construction, weighing only 0.037 pounds, makes it easy to handle and install while maintaining strength and security. This shackle is CE marked and batch numbered, confirming compliance with industry standards and quality control measures. Typical applications include standard shackle requirements for longer reach connections, as well as attachment points for blocks, heads, and other rigging components. Its robust construction and secure locking system make it an excellent choice for industrial rigging, marine, and outdoor applications where reliability and safety are paramount. Whether used in lifting gear, securing loads, or building rigging systems, the Wichard Marine Self-Locking Long D Shackle offers a durable, high-performance solution designed to withstand the rigors of demanding environments.

Features:

• Self-locking pin forged from grade 316L stainless steel for corrosion resistance and durability

• Pin locks into one of the indentations, preventing accidental loosening

• Designed to resist loosening caused by vibrations during use

• Outstanding working and breaking load capacities for heavy-duty applications

• Suitable for industrial applications with a safe working load limit of 440 pounds

• CE marked with batch number for quality assurance and compliance
