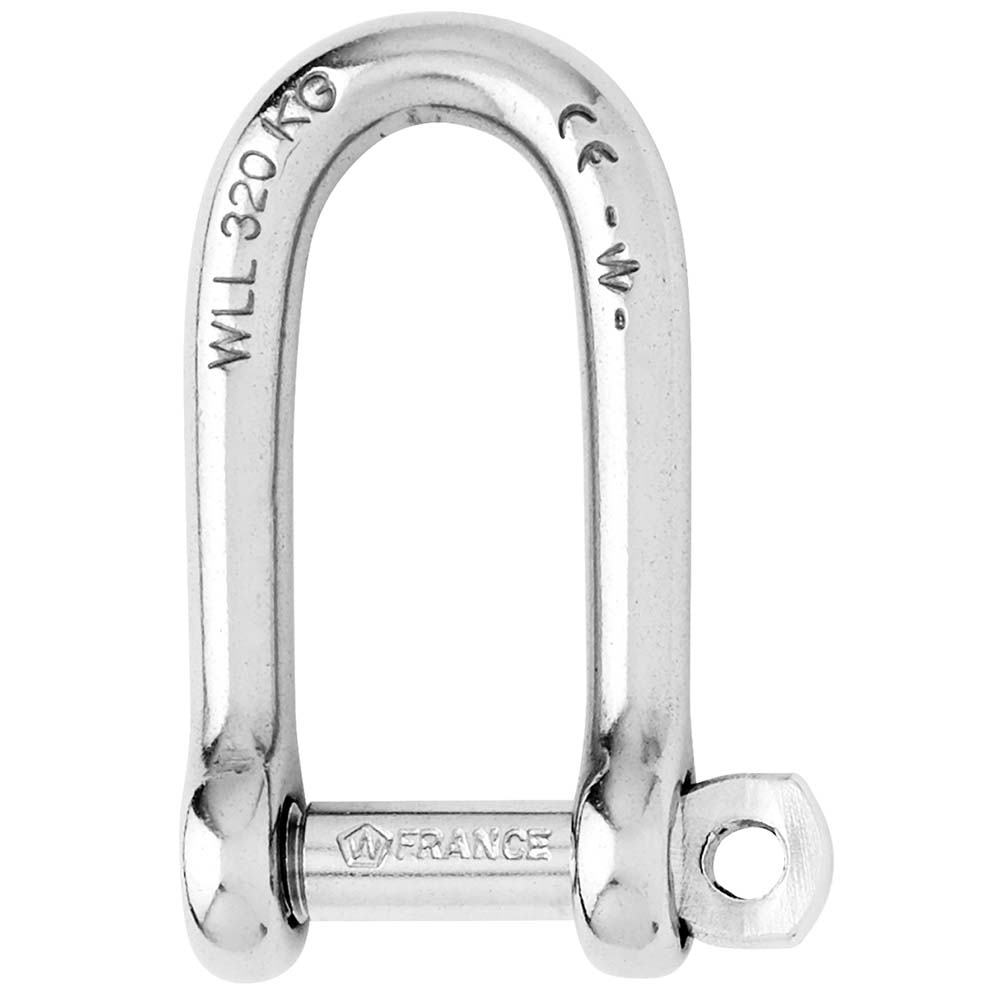

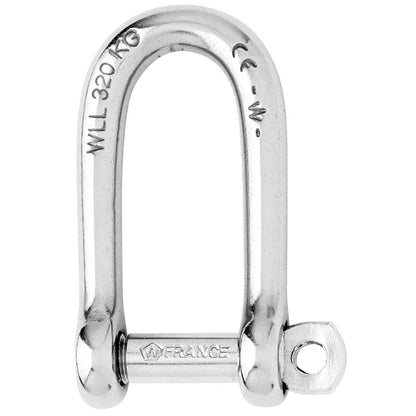

Wichard Marine Self-Locking Long D Shackle 6mm (1/4 inch) — Grade 316L Stainless Steel for Industrial Use

Self-Locking Long D Shackle - Diameter 6mm - 1/4"

Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• WLL (lb) 700
• Breaking load (lb) 3520
• Weight (lb) 0.06

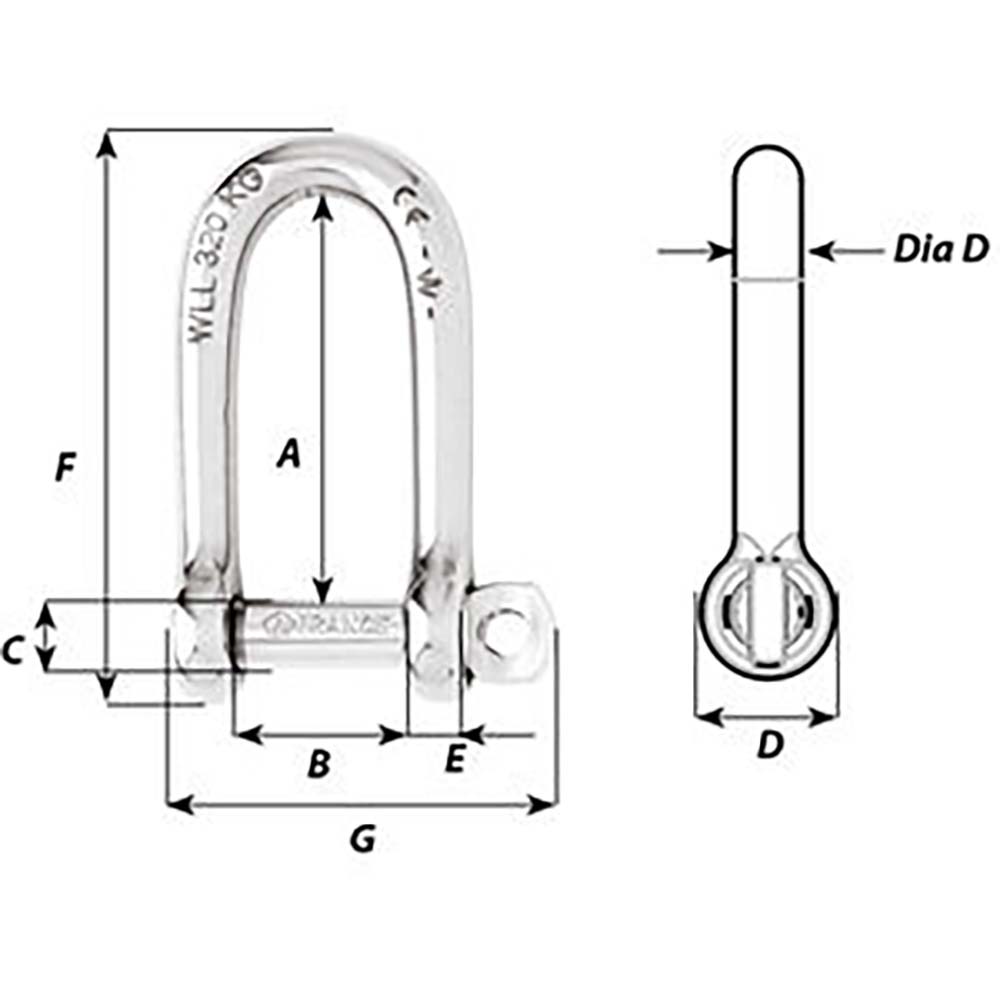

Dimensions (see 2nd image):

• A (inch) 1-19/64"
• B (inch) 15/32"
• C (inch) 15/64"
• D (inch) 15/32"
• D diameter (inch) 15/64"
• E (inch) 13/64"
• F (inch) 1-27/32"
• G (inch) 1-7/32"

The Wichard Marine Self-Locking Long D Shackle is designed for demanding industrial applications requiring durability and safety. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength. Its self-locking feature ensures the pin securely locks into one of the indentations, eliminating the risk of loosening caused by vibrations. This makes it ideal for situations where reliability is critical, such as lifting, rigging, and marine rigging tasks. The shackle's outstanding working and breaking loads guarantee dependable performance under heavy loads, with a working load limit (WLL) of 700 pounds and a breaking load of 3,520 pounds. The design incorporates a long body for applications needing additional length, providing versatility for various attachment points like blocks and heads. This shackle is CE marked and includes a batch number for traceability, adhering to safety standards. Its compact weight of approximately 0.06 pounds makes it easy to handle while maintaining high strength. The dimensions are optimized for secure fittings, with an overall length of about 1-19/64 inches and a width of 15/32 inches, ensuring compatibility with standard hardware.
Whether you need a reliable shackle for industrial lifting, securing loads, or marine rigging, the Wichard Marine Self-Locking Long D Shackle offers a robust and secure solution built to meet rigorous safety and performance standards. Its corrosion-resistant construction and self-locking mechanism make it suitable for challenging environments, providing peace of mind during critical operations.Features include a forged construction, a locking pin that prevents accidental loosening, high load capacity, and compliance with safety regulations, making this shackle a dependable choice for professional industrial and marine use.

Features:

• Self-locking pin: Locks securely into one of the indentations to prevent loosening due to vibrations

• Material: Forged grade 316L stainless steel for superior corrosion resistance and strength

• High load capacity: WLL of 700 pounds and breaking load of 3,520 pounds for demanding applications

• Design: Long body for applications requiring extended length, suitable for blocks and attachment points

• Safety compliance: CE marked with batch number for traceability

• Compact and lightweight: Weighs approximately 0.06 pounds, easy to handle without sacrificing strength
